Dräger Fabius - Dimensions of Usable Cylinders; N2 O, AIR and O 2 ( for Pin-Index Mounting). 58

Assembly
60
Instructions for Use Fabius MRI SW 3.n

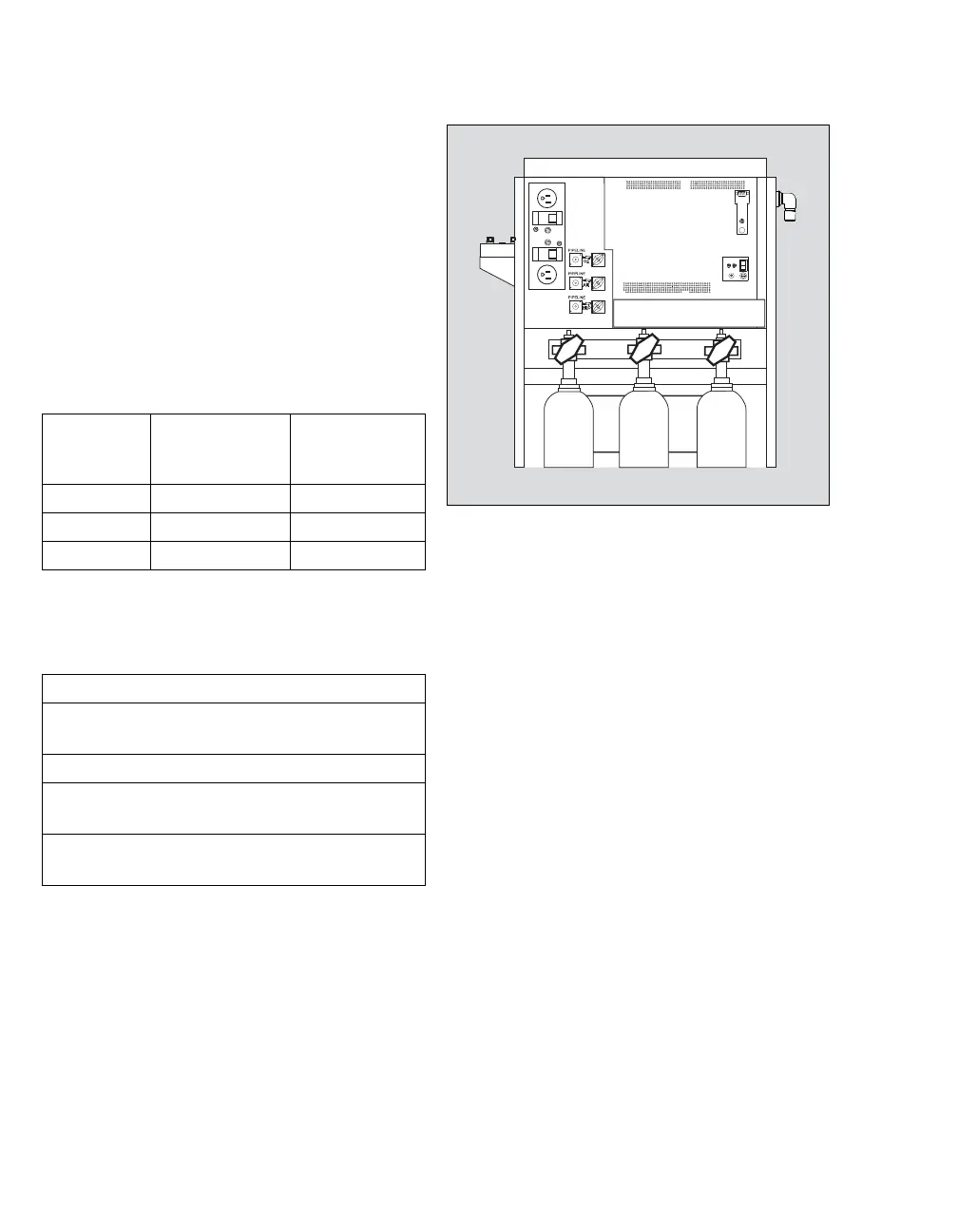

1 Open the cylinder valves.
z To ensure that the cylinder pressures are ade-
quate, check that the cylinder gauges indicate
pressures recommended in the table below.
z Close the cylinder valves.
Cylinders attached to the hanger yokes must con-
tain gas at the recommended pressures shown in
the table below. (Indicated pressures are for E-size
cylinders at 70 °F/21 °C.) Cylinders measuring less
than the minimum recommended pressure
(PSI - MIN) should be replaced with new, full cylin-
ders.
Dimensions of Usable Cylinders
Gas PSI/kPa x 100 -
FULL
(typical full load)
PSI/kPa x 100 -
MIN
AIR 1900/131 1000/69
N
2O 745/51 600/42
O
2 1900/131 1000/69
E-size Pin-Index Cylinder
4.7 L Height 25.5 in (654 mm)
Diameter 4.3 in (111 mm)
D-size Pin-Index Cylinder (without valve)
4.0 L Height 25.5 in (654 mm)
Diameter 4.3 in (111 mm)
2.8 L Height 16.5 in (419 mm)
Diameter 4.3 in (111 mm)
014
1
