Dräger Fabius User Manual

Assembly
68
Instructions for Use Fabius MRI SW 3.n

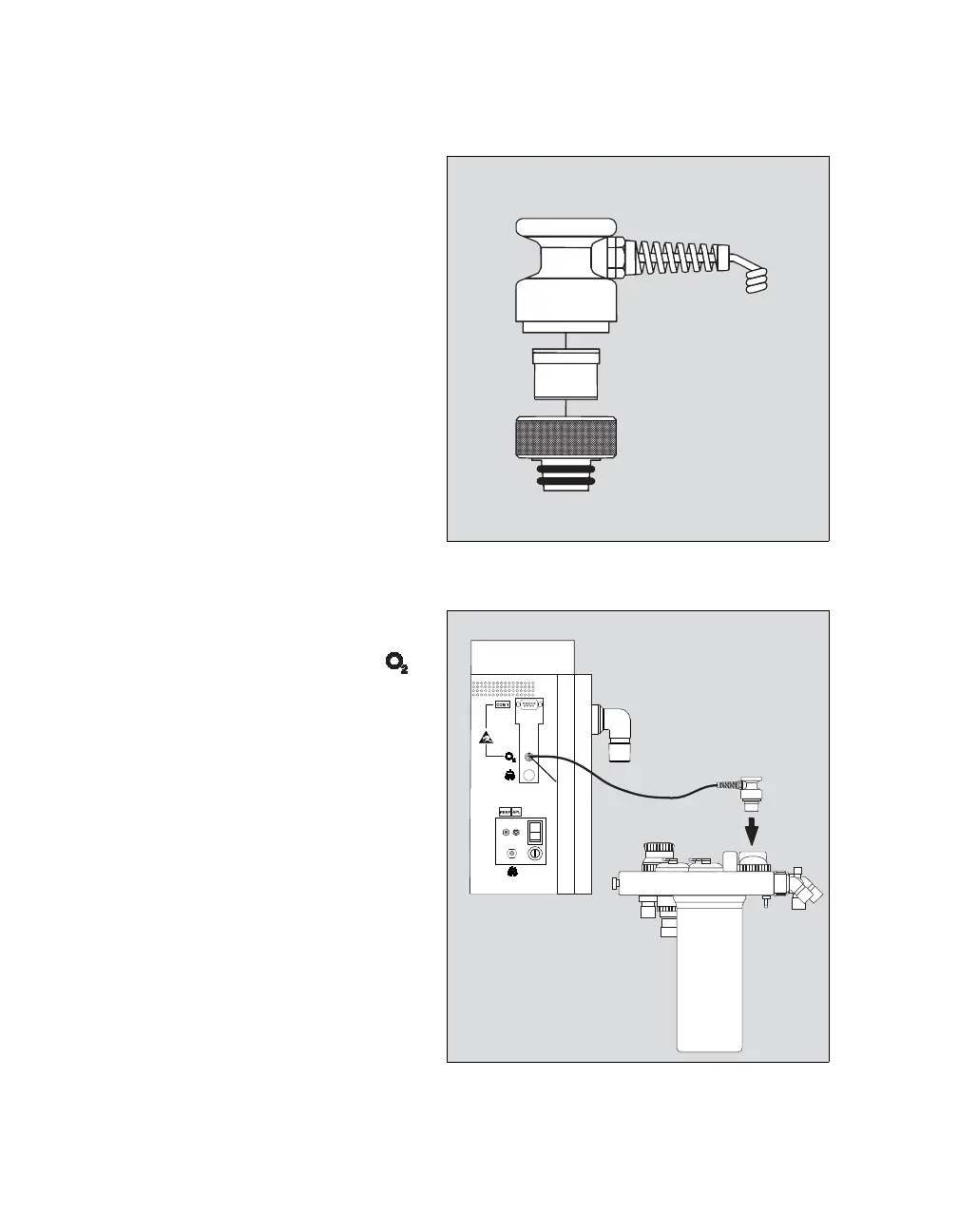

Inserting a new O2 Sensor Capsule
1 Unscrew the cap from the sensor housing.
z Remove the new sensor capsule from its pack-
aging.
2 Insert the capsule in the housing, with the ring-
shaped conductors against the contacts in the
housing.
z Screw the cap on firmly by hand.
Connecting the O2 Sensor
3 Push the O2 sensor into the port opening of the
inspiratory port dome, and
4 Plug the connector into the fitting labeled
on the connector panel on the back of the
machine.
051
1
2
016
3
4

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
