Instructions for Use Fabius MRI SW 3.n 69
Assembly

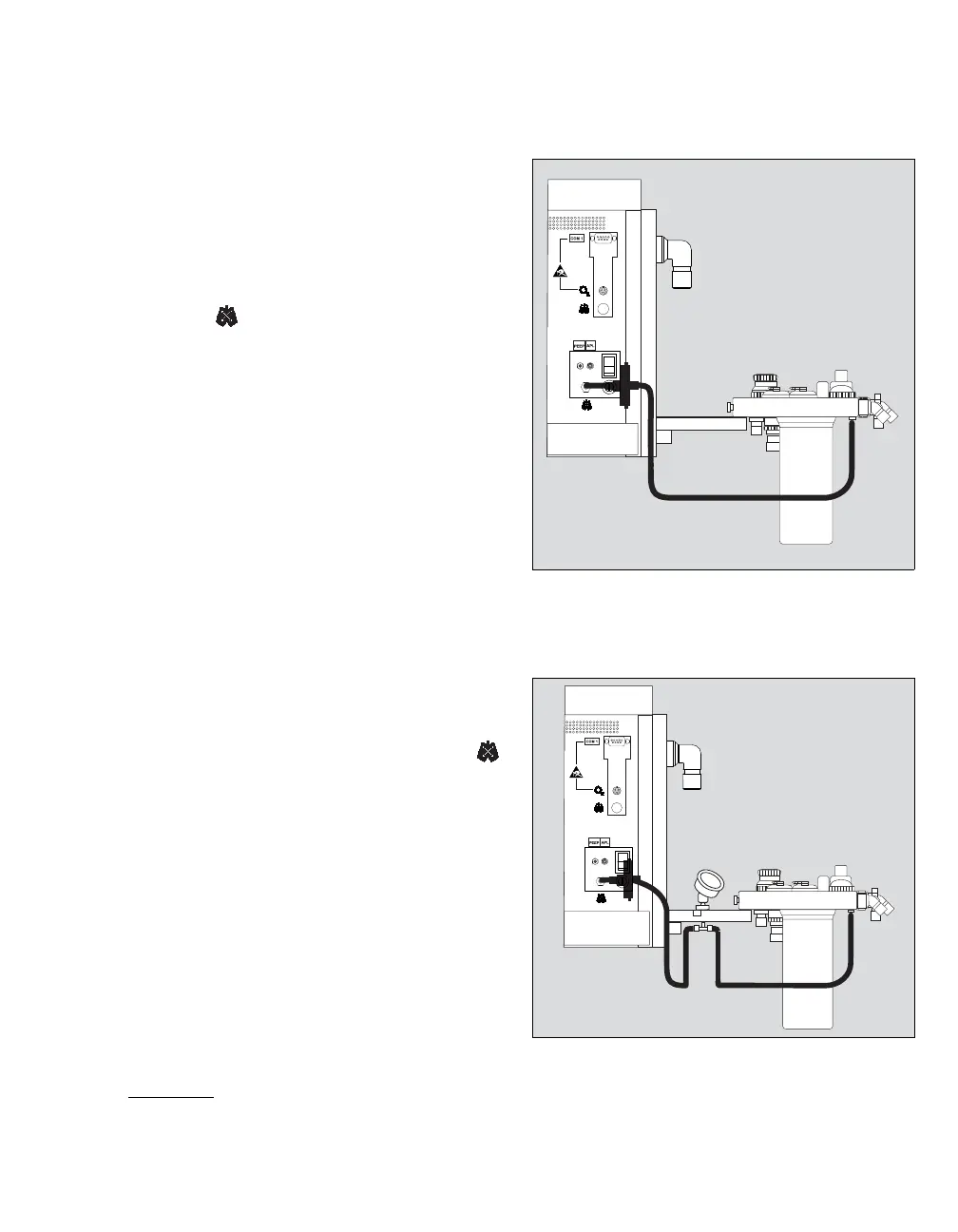

Connecting the Pressure Sensor
1 Press the pressure measuring line onto the
hose barb on the underside of the breathing
system until it engages.
Do not squeeze the pressure measuring line
when pressing it onto the hose barb.
2 Connect the pressure measuring line to the
bacterial filter, and plug it firmly onto the port
labeled on the connector panel on the back
of the machine.
Connecting the Breathing Pressure
Gauge*
z Push the pressure measuring line onto the hose
barb (3), the breathing pressure gauge port (4)
to the pressure gauge connector, and then to
the bacterial filter and onto the port labeled
on the connector panel on the back of the
machine (5).
*optional
017
2
1
018
4
3
5
