Instructions for Use Fabius MRI SW 3.n 47
Operation Concept
Fresh Gas Flow Monitoring Resolution
The Fabius MRI can be configured by
DrägerService or your local authorized service
organization to display fresh gas flow rates either in
a standard resolution mode or in a high resolution
mode:

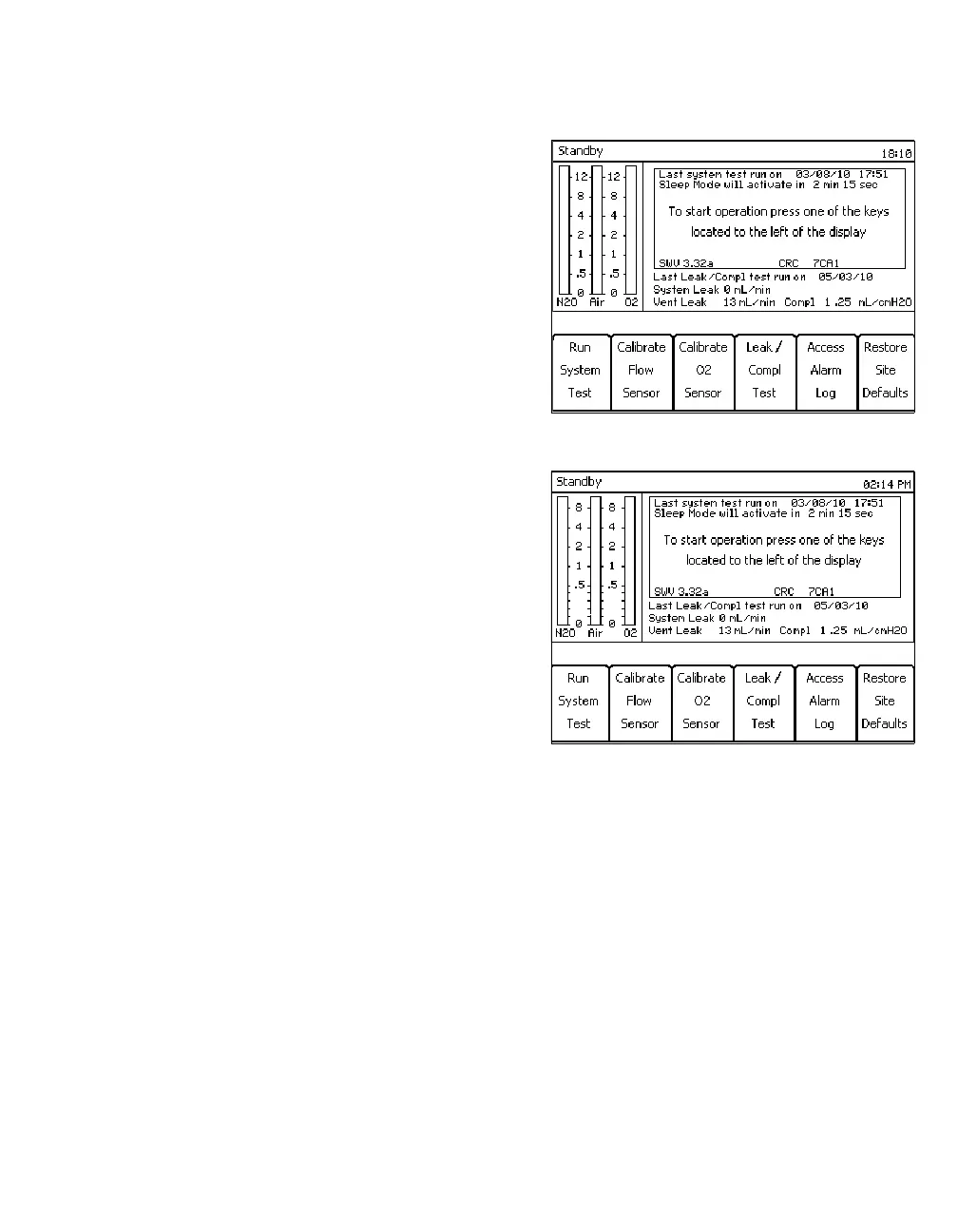

1 If standard resolution is configured, the elec-
tronic fresh gas flow indicators support
100 mL/min increments (format xx.x L/min), and
the flow meters on the monitor screen indicate
a range of 0 to 12 L/min.
2 If high resolution is configured, the electronic
fresh gas flow indicators support 10 mL/min
increments (format x.xx L/min), and the flow
meters on the monitor screen indicate a range
of 0 to 10 L/min with an emphasis on resolution
at the lower end of the scale.
High-resolution data is displayed when all indi-
vidual gas flows are below 9.99 L/min.
Switching to standard resolution occurs when
the highest flow rate is greater than 9.99 L/min.
Switching to high resolution occurs when the
highest flow rate drops below 9.00 L/min.
501
1
511
2

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
