Instructions for Use Fabius MRI SW 3.n 61
Assembly
Connecting the AGSS Anesthetic Gas
Scavenging System*
Every Anesthetic Gas Scavenging System (AGSS)
used on the Fabius MRI must follow ISO standard
8835-3.
The scavenging system is used with vacuum
waste-gas disposal systems.
The AGS or passive scavenger is not applied as an
independent system.
It is used as one of the three components of the
AGSS.

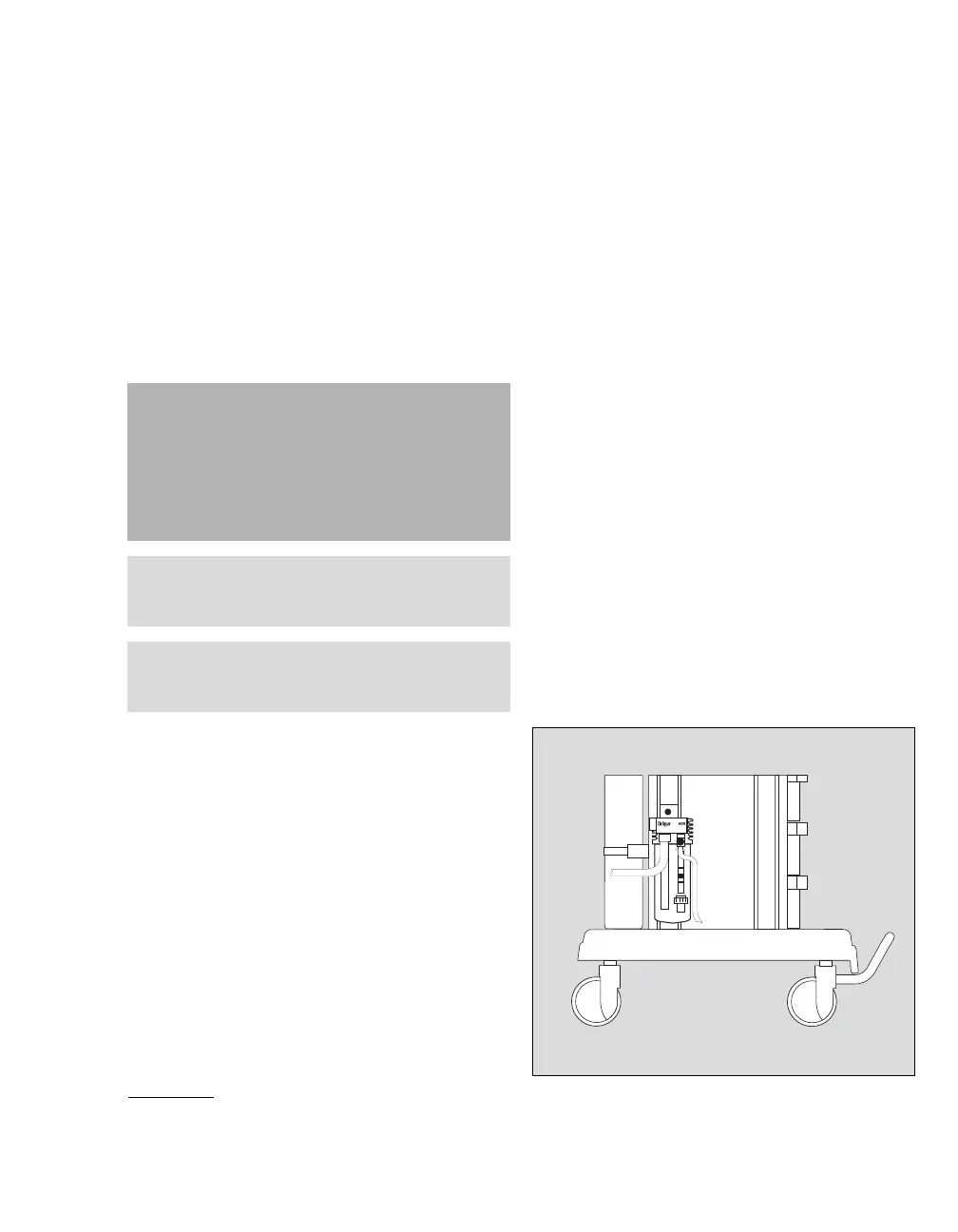

z Hook receiving system (AGS) with the slots
over the appropriate pins of the basic device
and allow it to slide down into place.
1 Connect the scavenging hose to the relevant
socket of the receiving system.
z Connect the connector of the scavenging hose
to the terminal unit of the disposal system.
2 Close the connection that is not used with a
screw cap.
z Push the transfer hose on the designated
socket.
z Connect the other end of the transfer hose to
the waste-gas port located on the underside of
the breathing system.
*optional
WARNING
Risk of patient injury
If the side openings of the receiving system
are blocked, negative pressure may result in
the breathing system and the patient’s lungs.
Always make sure the side openings of the
receiving system are not blocked.
NOTE
The scavenger hoses must not be pinched, kin-
ked, or blocked in any manner.
NOTE
Remove the socket from the scavenger hose
before connecting.
