Dräger Fabius User Manual

Operation
88
Instructions for Use Fabius MRI SW 3.n
Setting Vaporizer Concentration
Refer to the appropriate Instructions for Use for the
vaporizer being used. Vapor 2000 is shown and
described below.

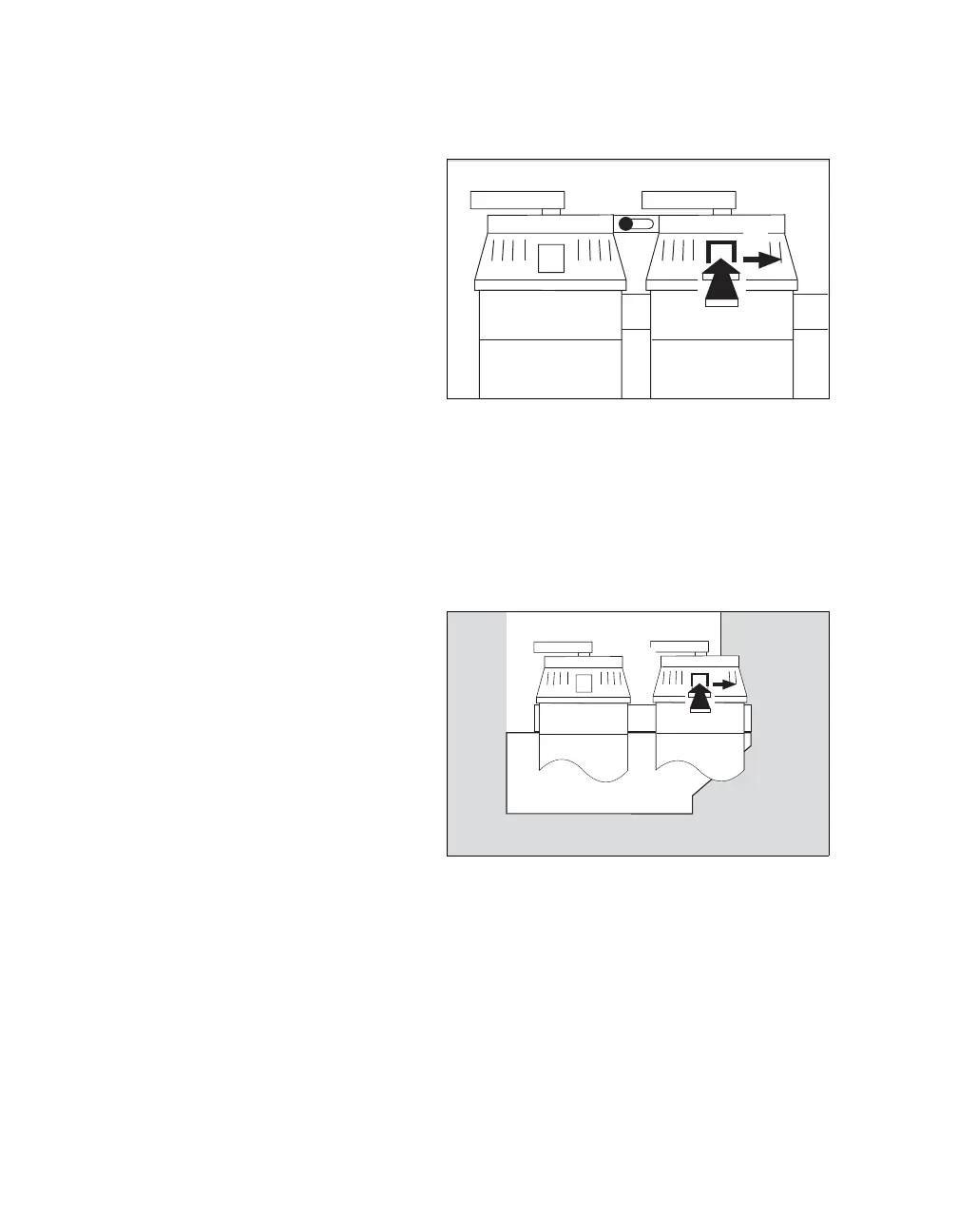

For the Dräger Interlock 2 system:
z Ensure that the vaporizer is properly seated.
1 Lock the unused vaporizer by moving the selec-
tor lever completely towards it. For example, to
lock the left vaporizer, move the lever to the left.
2 With the handwheel set to »T« position on the
unlocked vaporizer, press the button and
engage the handwheel at »0«. Wait five sec-
onds for the pressure to balance.
3 Press the button and turn the handwheel coun-
terclockwise to set the required anesthetic gas
concentration.
z Regularly check the filling level on the sight
glass. When reaching the minimum mark, fill the
vaporizer with anesthetic agent.
For the Dräger Auto Exclusion system:
z Close any open vaporizers.
z Ensure that the vaporizer is properly seated.
1 With the handwheel set to »T« position, press
the button and engage the handwheel at »0«.
Wait five seconds for the pressure to balance.
2 Press the button and turn the handwheel coun-
terclockwise to set the required anesthetic gas
concentration.
z Regularly check the filling level on the sight
glass. When reaching the minimum mark, fill the
vaporizer with anesthetic agent.
041
1
2
3
072
1
2

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
