Instructions for Use Fabius MRI SW 3.n 183
Cleaning
Reinstalling the Suction System
Reconnecting the Suction System

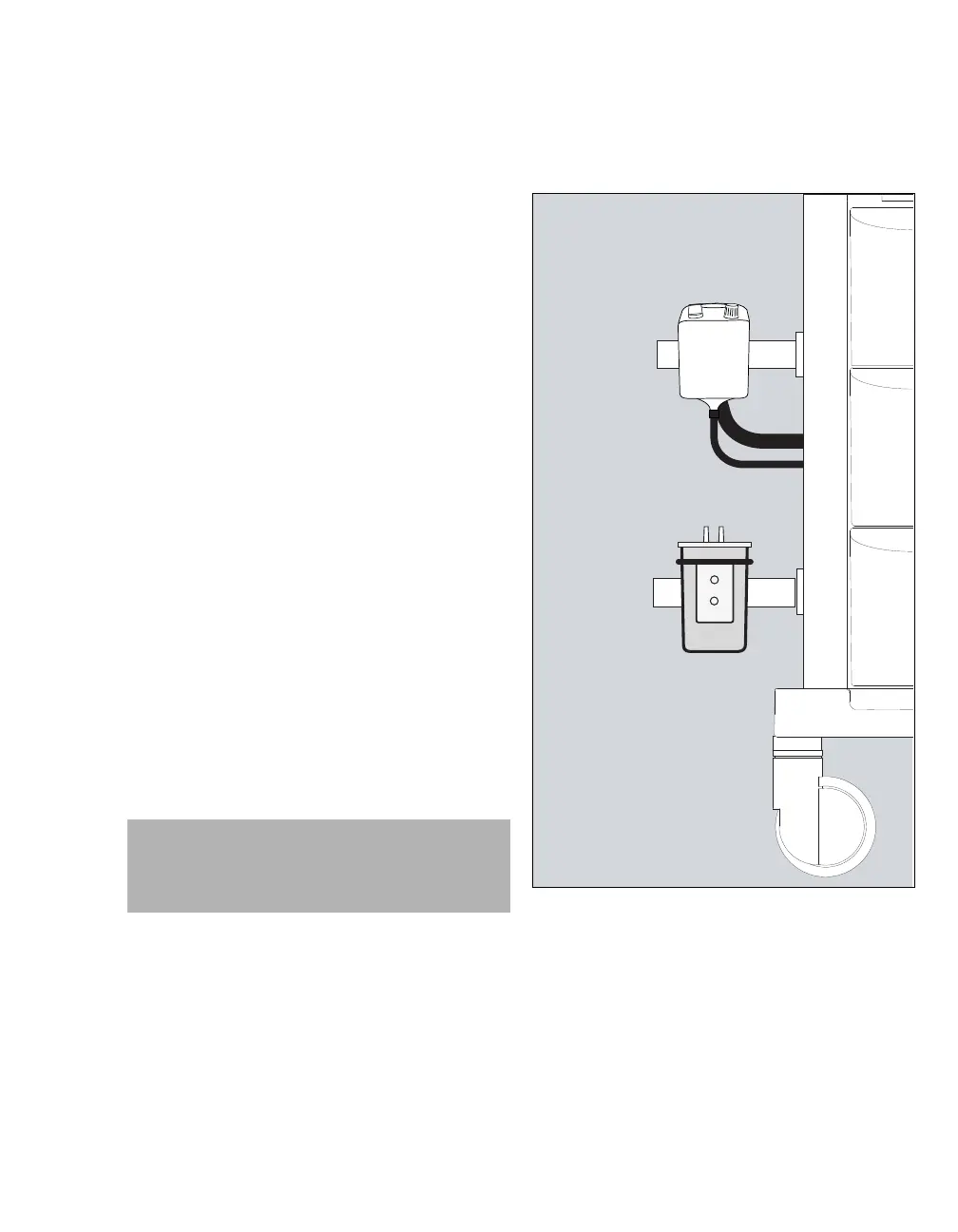

The optional aspiration system for the Fabius MRI
consists of an suction regulator and a suction
bottle. The suction regulator is attached to a holder,
which is fastened on the side channel of the anes-
thesia device. The suction bottle desired by the
customer is attached to a separate swivel rail on the
side channel.
z Attach the carrier arm of the suction system on
the side channel on the side of the anesthesia
device.
1 Mount the suction regulator onto the bracket.
z Reprocess the suction bottle according to the
instructions for use included with the bottle.
2 Attach the suction bottle on the swivel rail.
Depending on the aspiration system used:
With use of AIR or O
2 as driving gas:
z Connect the air connection hose of the suction
system on the air exhaust of the gas supply
block (optional) or directly on the gas supply
line.
For vacuum aspiration:
z Connect the vacuum hose of the suction system
directly on the gas supply line.
Make sure that the suction system is ready for ope-
ration according to the included Instructions for
Use.
WARNING
The aspiration system must only be used in
the »Man/Spont« mode or if the Y-piece is not
connected.
