Dräger Fabius User Manual

Instructions for Use Fabius MRI SW 3.n 173
Cleaning
Removing the APL-Valve
z Unscrew the retaining nut.
z Remove the APL valve.
z Unscrew the waste gas outlet port.

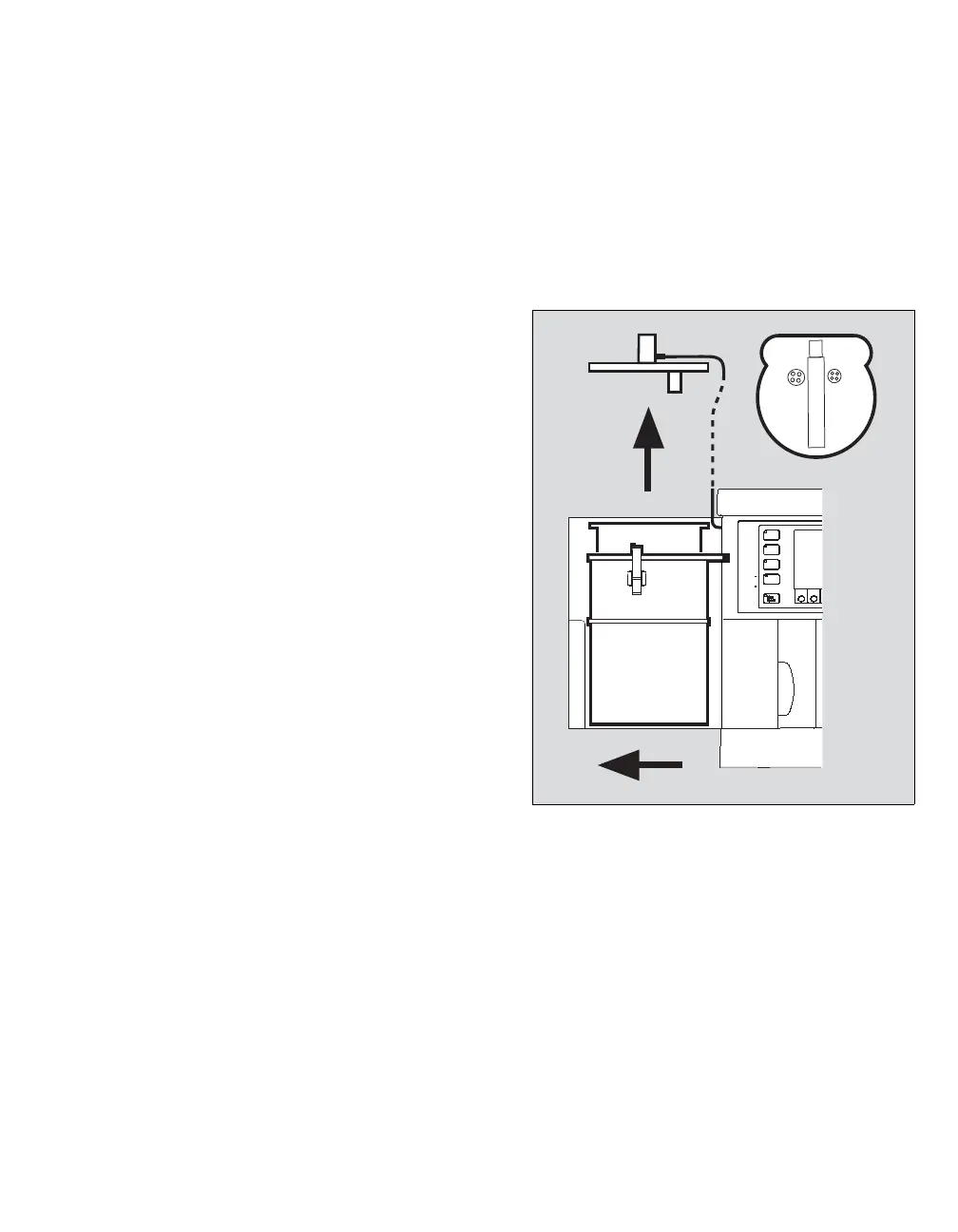

Removing Parts of the Ventilator
1 Open the ventilator door.
2 Disconnect the pressure sensor line of the ven-
tilator chamber from the respective connector.
3 Unlock the three clasps,
4 Remove the cover.
5 Remove the ventilator diaphragm.
059
1
2
2
3
4
5
