Dräger Fabius User Manual

Instructions for Use Fabius MRI SW 3.n 19
System Overview

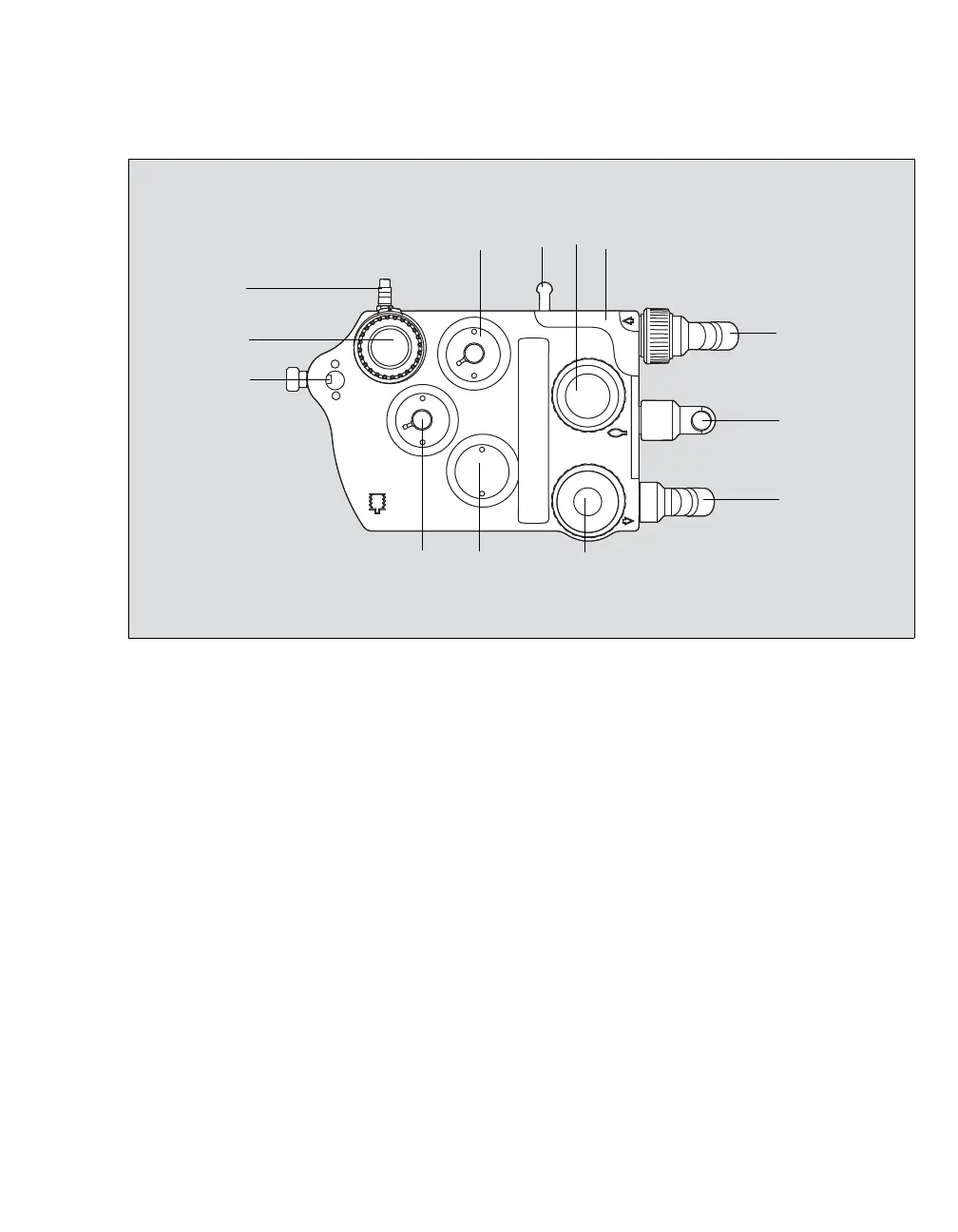

Compact Breathing System (Top View)
1 PEEP/PMAX valve connection port
2 Bag holder
3 Expiratory valve
4 Flow-sensor guard (flow-sensor protection)
5 Expiratory port
6 Connector for breathing bag
7 Inspiratory port
8 Inspiratory valve
9 Fresh gas decoupling valve
10 APL Bypass valve connection port
11 Breathing system mount with locking bolt
12 Selecting knob for »MAN« and »SPONT« on
pressure limiting (APL) valve
13 Sample gas return port
064
1
2
4
5
6
7
8
10
13
12
3
9
11

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
