Dräger Fabius User Manual

Instructions for Use Fabius MRI SW 3.n 71
Assembly

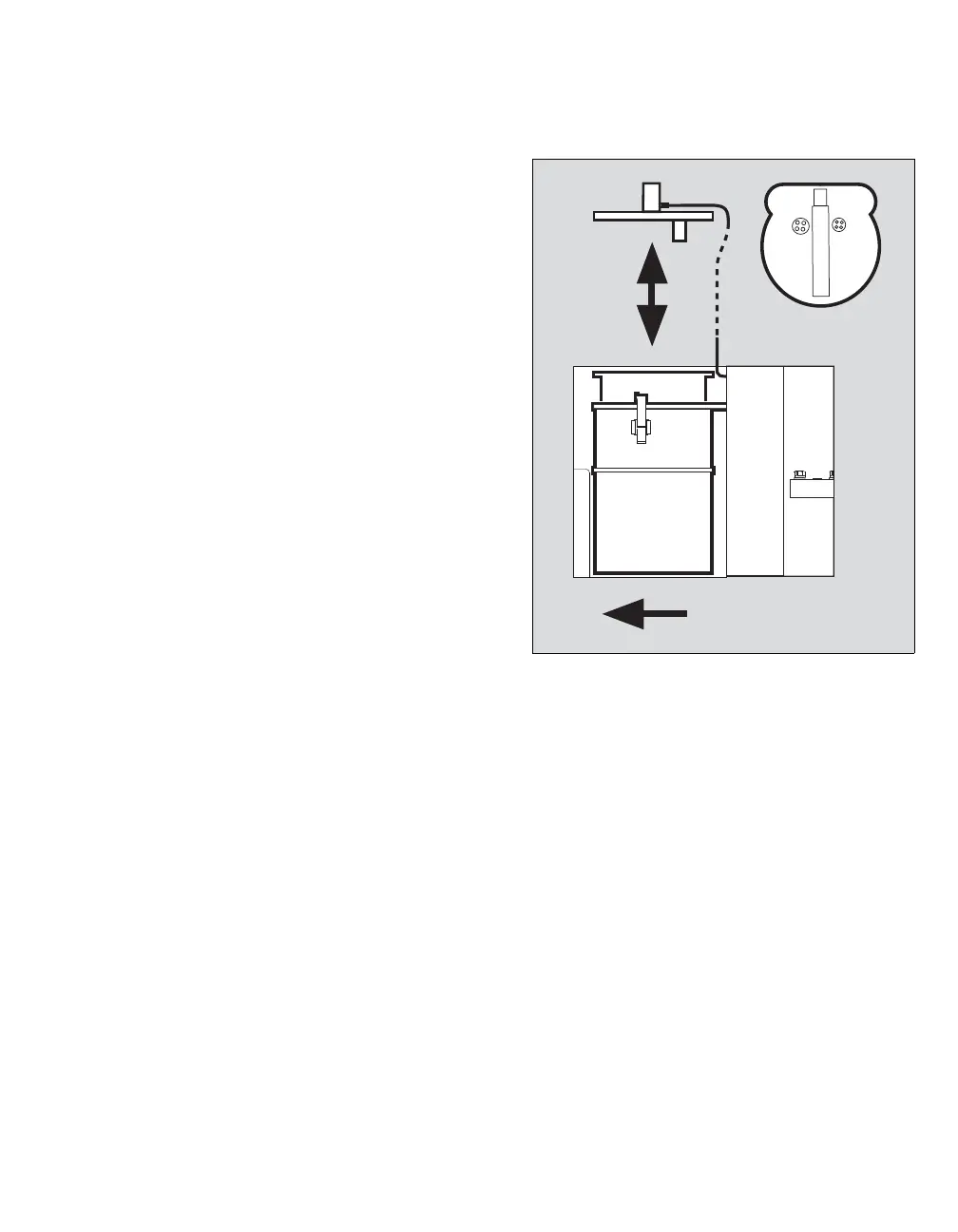

Preparing the Ventilator
Use only disinfected/sterilized components.
1 Open the ventilator door with the attached ven-
tilator unit.
2 Unlatch the three clasps.
3 Remove the cover.
4 Insert the diaphragm.
z Fit the cover and lock the three clasps.
5 Connect pressure sensor line of the ventilator
chamber to the respecive connector.
1 Close the ventilator door with the attached ven-
tilator unit.
Ventilator Safety Features
– High pressure safety relief valve (A).
– Negative pressure safety relief valve (B).
– Ventilator chamber pressure sensor.
091
A
B
3
5
5
4
2
1

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
