18 Instructions for Use Fabius MRI SW 3.n
System Overview

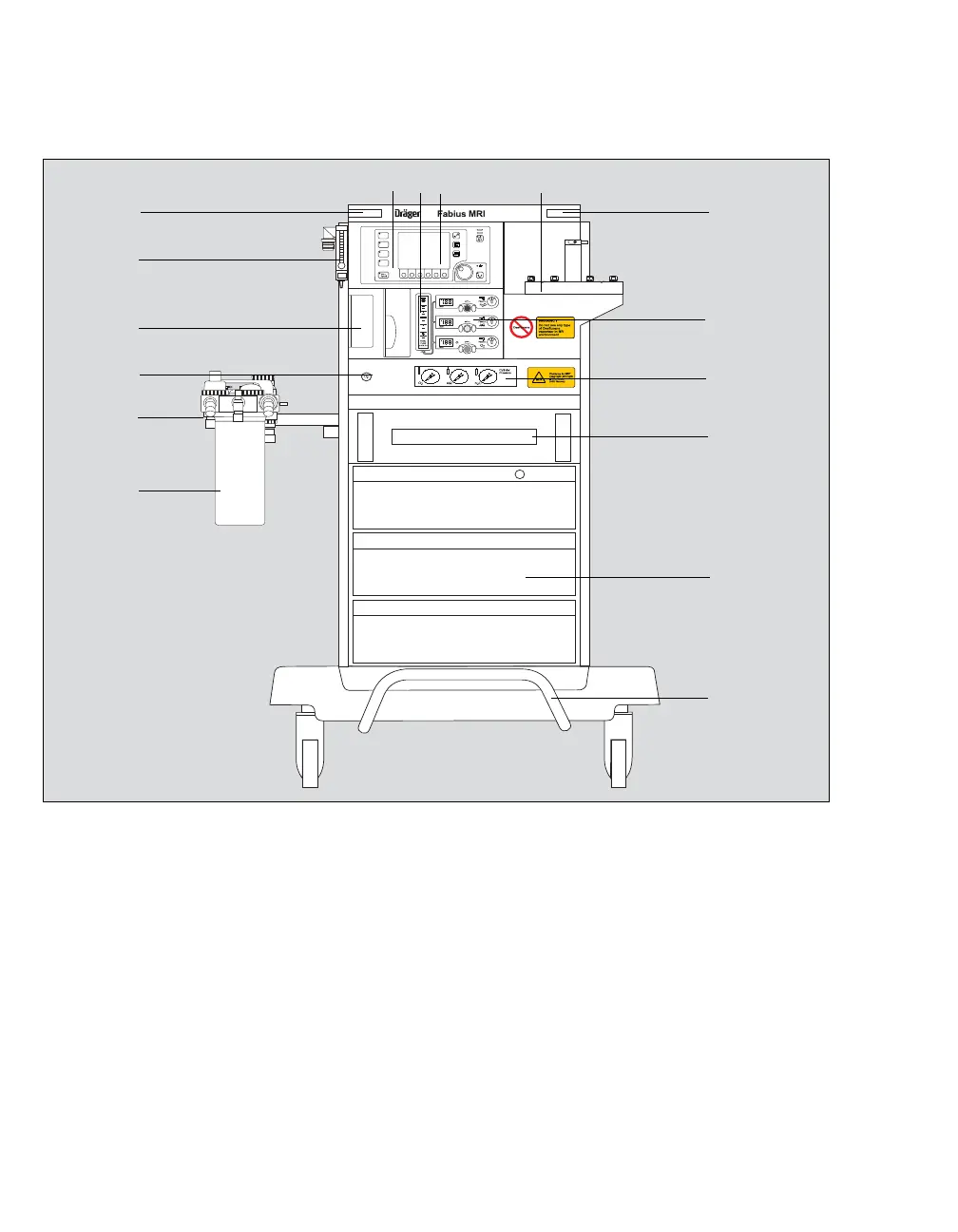

Front View
1 Ventilator control panel (settings for ventilation
parameters and airway monitoring)
2 Total fresh gas flowmeter
3 Display screen
4 Interlock or Auto Exclusion Vapor mount
5 Additional alarm indicators
6 Fresh gas controls
7 Gauges (Pin-Index cylinders)
8 Writing table
9 Storage drawers
10 Central brake
11 Absorber
12 Compact Breathing System (COSY)
13 Oxygen flush button
14 Ventilator
15 Auxiliary oxygen flowmeter
073
1 2
4
12
14
6
7
9
10
11
15
13
8
3
55
