Instructions for Use Fabius MRI SW 3.n 63
Assembly

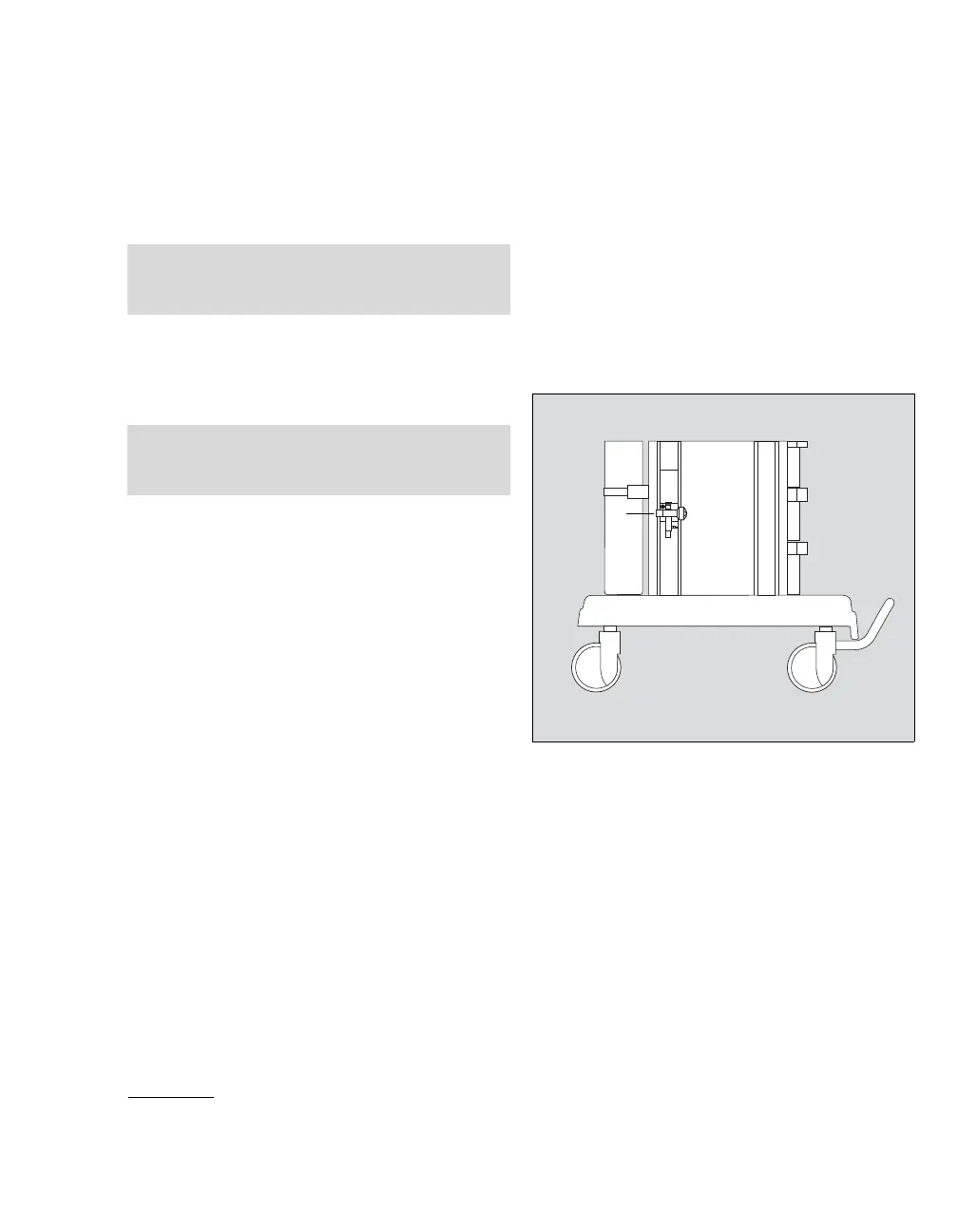

Connecting the Passive Scavenger*
The passive scavenger system is used only with
non-recirculating exhaust systems. It is not meant
to be used with vacuum disposal systems.
z Install the passive scavenger on the machine by
sliding its bracket onto the two shoulder screws
located on the scavenger mounting bracket on
the side of the machine.
1 Connect one end of the transfer hose to the side
fitting on the scavenger.
z Connect the other end of the transfer hose to
the waste gas port located on the underside of
the breathing system.
2 Connect the waste gas hose to the bottom con-
nection on the scavenger.
z Connect the other end of the hose to the hospi-
tal waste gas disposal system.
For detailed information on the passive scavenger
system, refer to separate Instructions for Use.
*optional
NOTE
The scavenger hoses must not be pinched,
kinked, or blocked in any manner.
NOTE
Remove the socket from the scavenger hose
before connecting.
062
1
2
