Assembly
56
Instructions for Use Fabius MRI SW 3.n

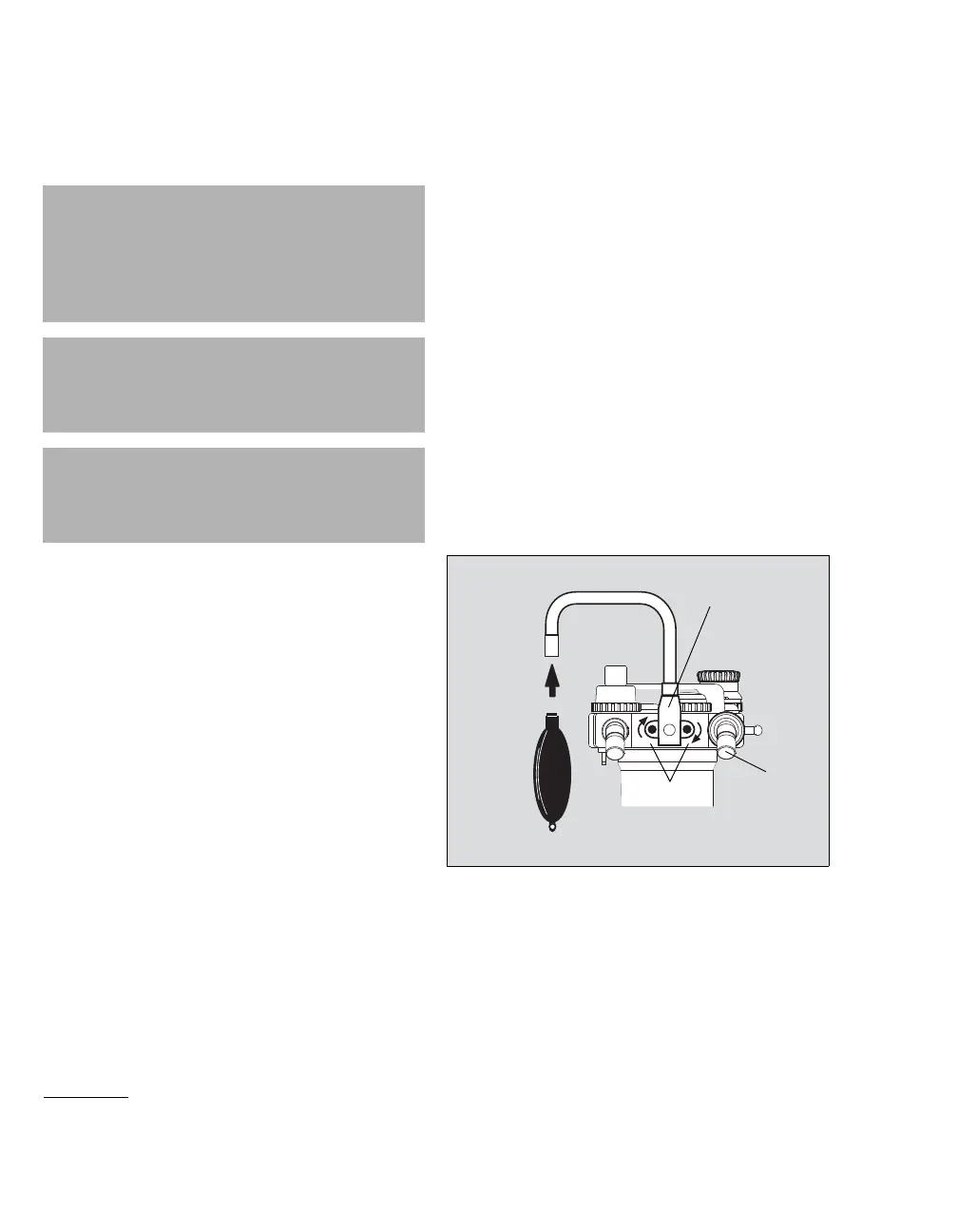

Installing the Breathing Bag Extension
and Bag*
1 Remove the expiratory hose terminal from the
breathing system.
2 Slide the breathing bag extension assembly
onto the breathing bag port on the side of the
breathing system.
z Align the bracket on the assembly with the
holes on the breathing system.
3 Tighten the two thumb screws to secure.
4 Attach the breathing bag to the end of the
breathing bag extension.
*optional
WARNING
Do not install the Dräger flexible bag arm
(P/N 8606462.) This arm contains magnetic
parts and is not MR safe or MR conditional.
This arm would be attracted to the MRT sys-
tem which would create a risk of injury.
WARNING
Risk of use of toxic or incompatible materials
Breathing bags used on the Fabius MRI must
comply with current national standards.
CAUTION
Risk of unintended perioperative awareness
Make sure that during ventilation the bag is tightly
connected to the bag arm.
