40 Instructions for Use Fabius MRI SW 3.n

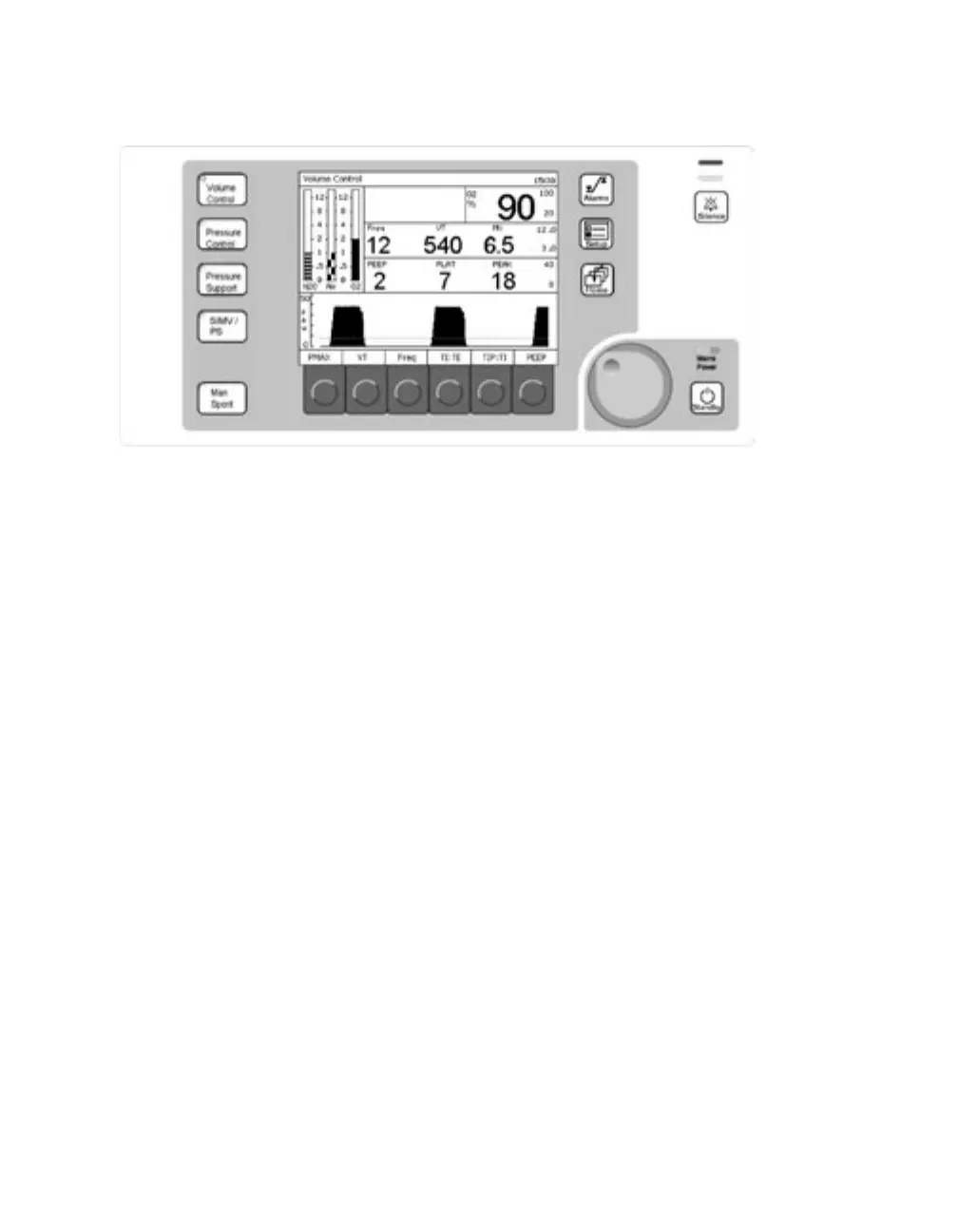

Operation Concept
Rotary Knob
1 The rotary knob is the main control used to
select and confirm all monitoring and system
settings.
– Turn the rotary knob to change or select a value
or parameter (clockwise rotation increases a
value; counterclockwise rotation decreases a
value). This function is indicated in the exam-
ples and instructions in this manual by “select.”
– Press the rotary knob to set a value or confirm
a selection. If the selection is not confirmed, the
value or parameter will not change. This func-
tion is indicated in the examples and instruc-
tions in this manual by “confirm.”
Fixed Function Keys
The fixed function keys positioned on both sides of
the screen provide access to major machine and
monitoring functions. Most fixed function keys must
be confirmed by pressing the rotary knob.
2 The »ManSpont« key selects the Man-
ual/Spontaneous ventilation mode.
3 The »SIMV/PS« key is used to select the
SIMV/PS ventilation mode (optional).
4 The »Pressure Support« key is used to select
the Pressure Support ventilation mode
(optional).
5 The »Pressure Control« key is used to select
the Pressure Control ventilation mode.
6 The »Volume Control« key is used to select
the Volume Control ventilation mode.
7 The »Alarms« key displays the Alarm Limits
window.
8 The »Setup« key provides two different func-
tions, depending on mode:
– If pressed during Standby mode, it displays the
Standby Setup screen which enables the user
to define site defaults and configure system set-
tings (see page 132).
– If pressed during a ventilation mode, it allows
the user to view and change monitoring settings
9 The »Home« key displays the main screen from
any other screen currently displayed
10 The »Silence« key silences all active alarm
tones for two minutes.
11 The »Standby« key switches the machine to
standby mode. Monitoring and alarms are
turned off and the ventilator stops. Fresh gas
monitoring continues.
