Instructions for Use Fabius MRI SW 3.n
z If the ventilator settings are correct, confirm the
mode change.
z If the ventilator settings are not correct, for each
parameter that needs to change, press the cor-
responding soft key, select the correct value,
and confirm the change. When the parameter
changes are completed, confirm the ventilation
mode change.
z After the mode change is confirmed, the
»Volume Control« key LED switches from
blinking to constantly on, the ventilator switches
to the Volume Control mode, and the waveform
is restored.

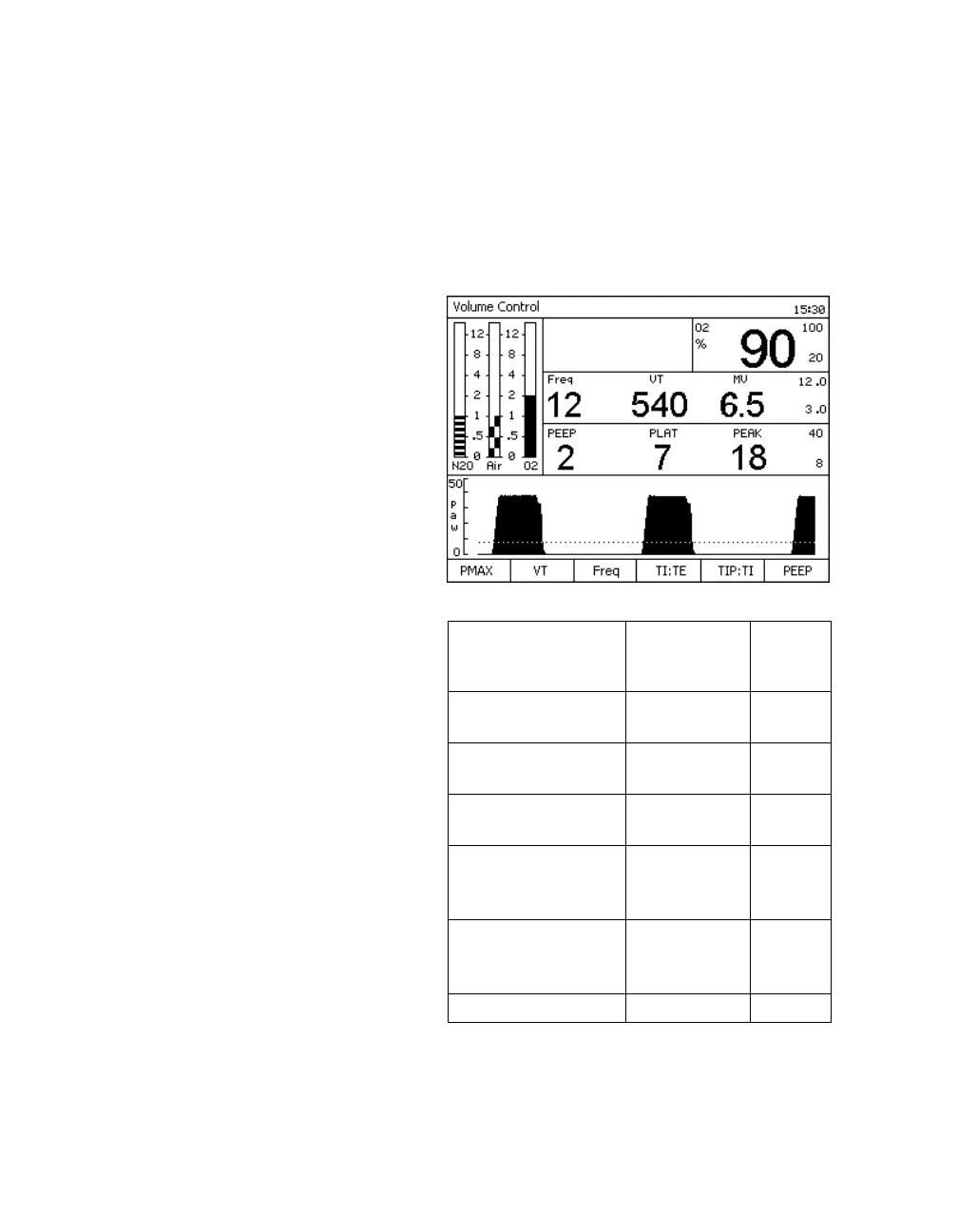

The parameters that can be set for Volume Control
mode are shown the adjacent table, along with their
adjustment ranges and factory default values.
502
Ventilation Parameter
(Volume Control
Mode)
Adjustment
Range
Factory
Default
Value
Pressure Limitation
P
MAX [cmH2O] ([hPa])
15 to 70
min. PEEP+10
40
Tidal Volume
VT [mL]
20 to 1400 600
Frequency
Freq [bpm] ([1/min])
4 to 60 12
Insp time:
Exp time
T
I:TE
4:1 to 1:4 1:2
Insp pause time:
Insp time
T
IP:TI [%]
0 to 50 10
PEEP [cmH
2O] ([hPa]) 0 to 20 0

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
