Programming

288 Service Instructions 755 A/756 A - 00.0 - 02/2019

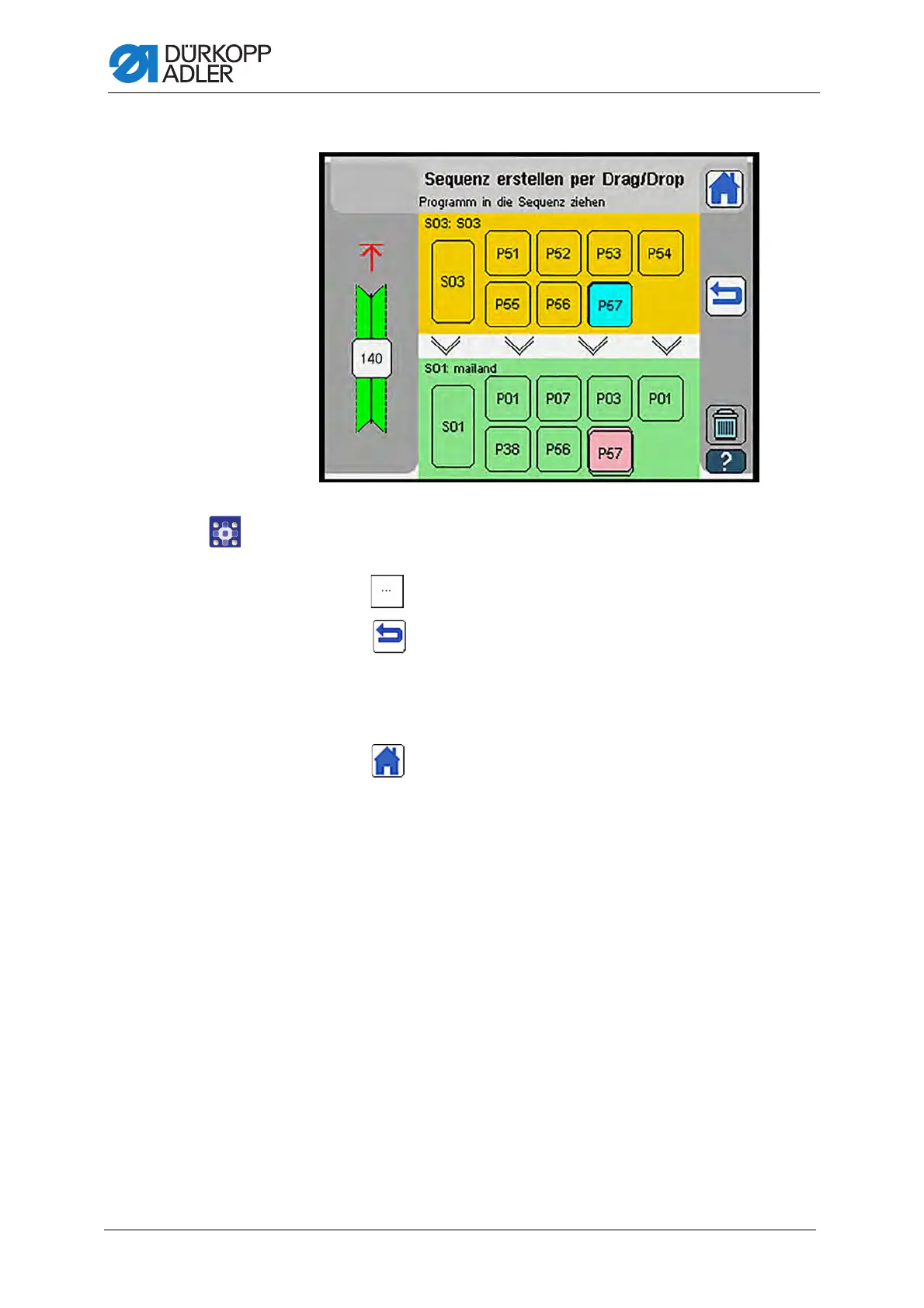

Fig. 273: Changing the seam sequence template (4)

5. Use Drag and Drop to drag the desired pocket program from the seam

sequence template (1) to an available pocket program slot.

Press the button to select the desired pocket program from the list.

6. Press the button to save the setting and return to the previous

level.

 The display returns to Overview of sequences.

7. Press the button to save the setting and return to the start screen.

 You can start sewing with the new seam sequence right away.
