Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 289

Naming a seam sequence

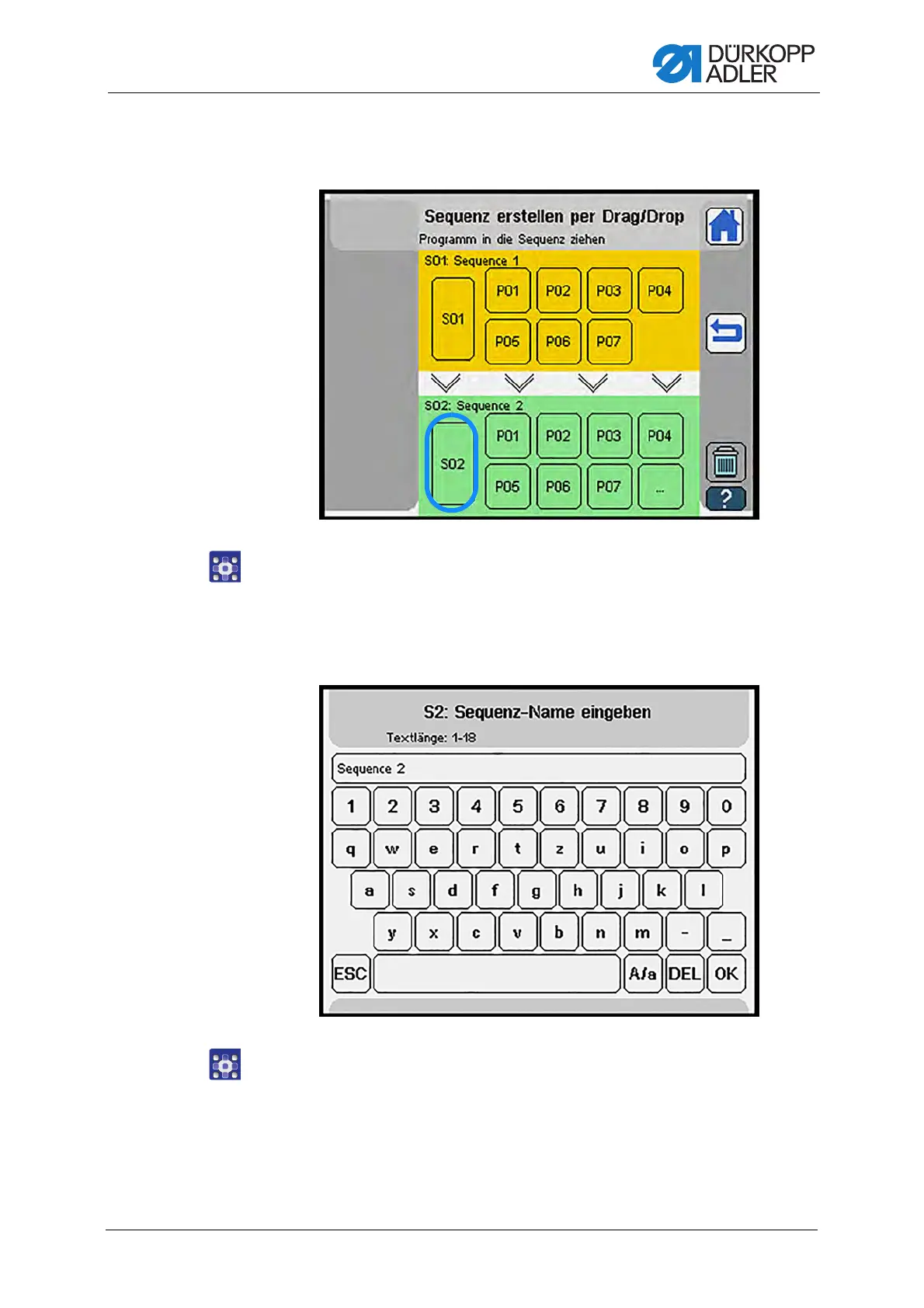

Fig. 274: Naming a seam sequence (1)

To enter a name for a seam sequence:

1. Press the button S02-S20 (depending on which seam sequence you

have selected).

 The display switches to a keypad.

Fig. 275: Naming a seam sequence (2)

2. Enter the desired sequence name.

You can enter up to 18 characters.

Every sequence must be given a name.

3. Confirm with OK.
