Needle bar

30 Service Instructions 755 A/756 A - 00.0 - 02/2019

Setting the needle bar lengthwise

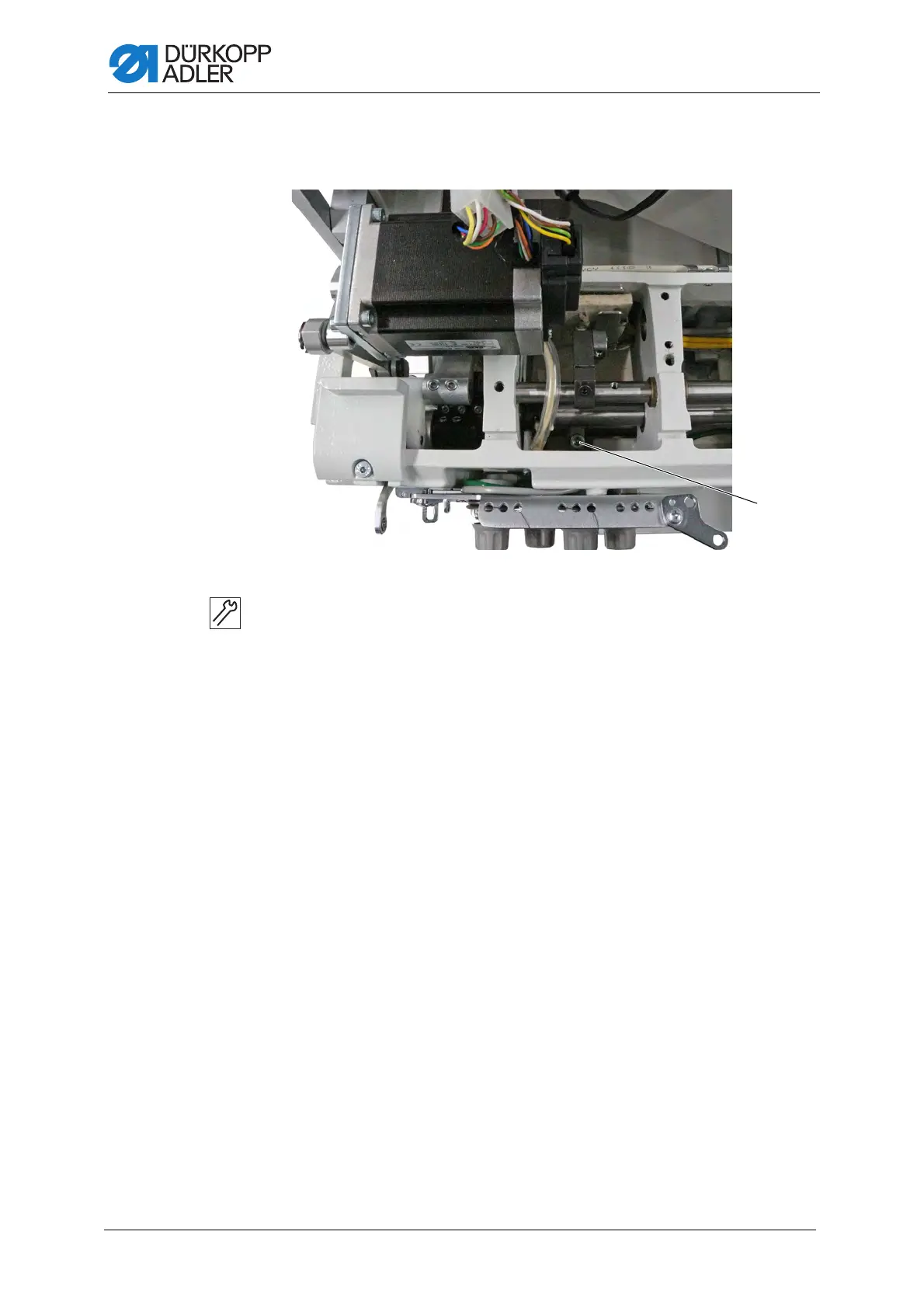

Fig. 17: Aligning the needle bar with the throat plate (3)

To set the needle bar lengthwise:

1. Remove the head cover.

2. Removing the arm cover

3. Slightly loosen the screw (1).

4. Turn the needles to bottom dead center.

(1) - Screw
