Programming

360 Service Instructions 755 A/756 A - 00.0 - 02/2019

Adjust transport clamp

 The display switches to Adjust transport clamp.

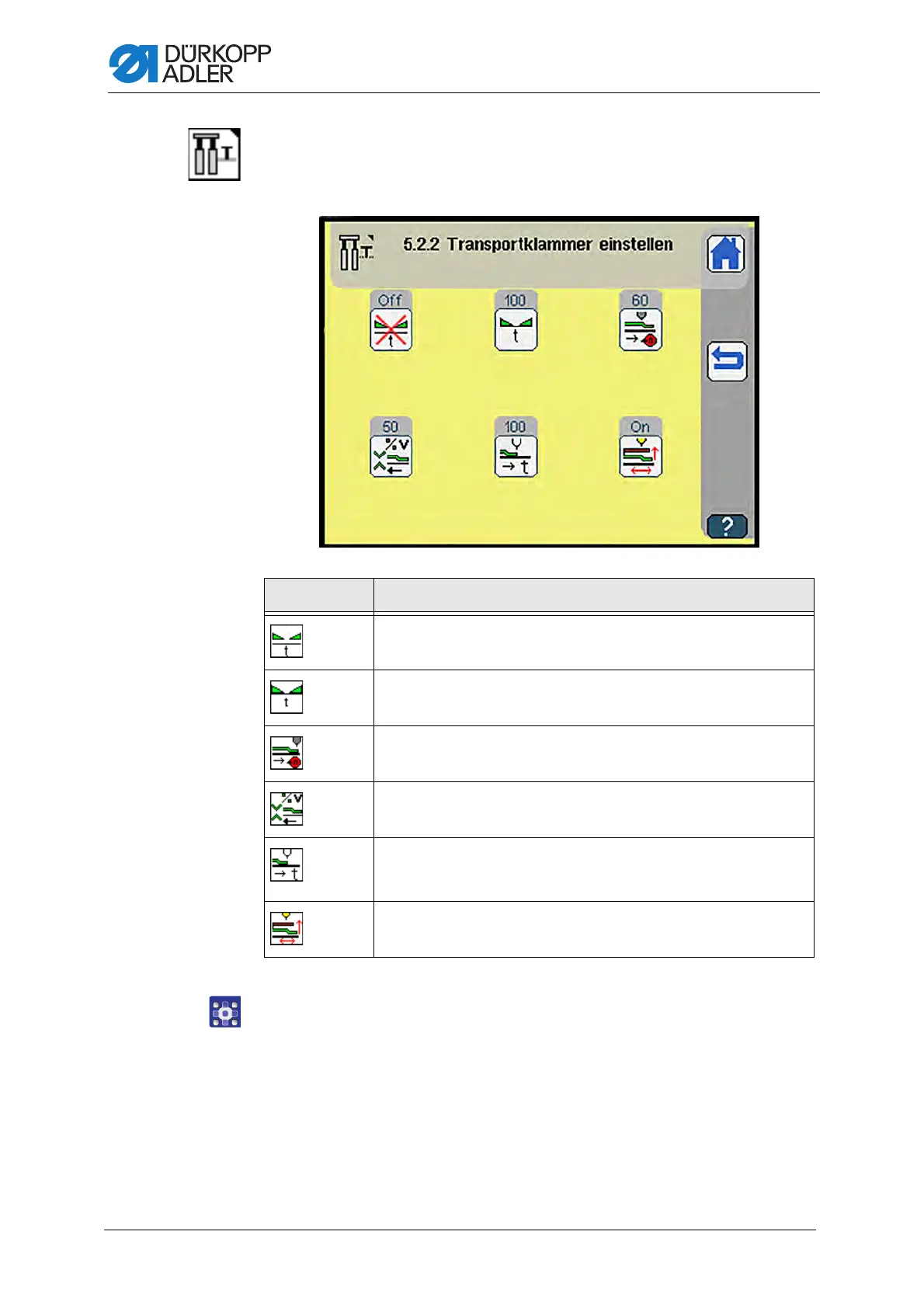

Fig. 331: Set transport clamp

To set the transport clamp:

1. Press the desired button.

2. Enter the desired value using the numeric keypad.

3. Confirm with OK.

Symbol Meaning

Lower transport clamp automatically On/Off

Set delayed lifting of transport clamp

•0ms - 1000ms

Set transport clamp speed to waiting position

• 10% - 100%

Set transport clamp speed to corner knife

• 10% - 100%

Set waiting time until transport clamp moves to seam begin.

• Return transport delayed

•0ms - 1000ms

Automatic transport clamp return On/Off

• is set in the program parameters  p. 331

Default Chapter3
