Programming

362 Service Instructions 755 A/756 A - 00.0 - 02/2019

Setting password protection

You use this menu to switch the default passwords for the levels listed

below on or off.

 The display switches to Set password protection:

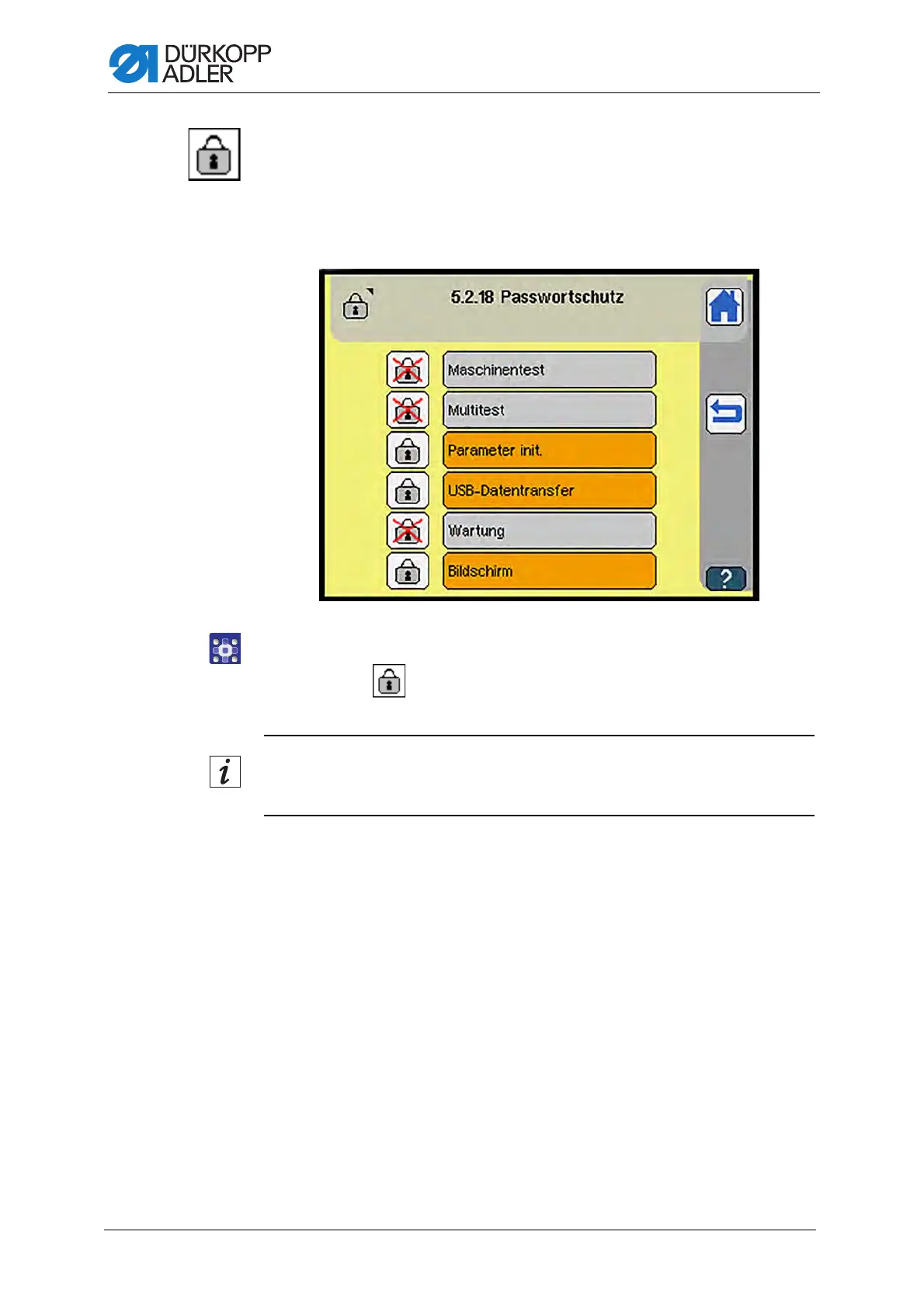

Fig. 333: Setting password protection

To set password protection:

1. Press the button in front of the desired area to enable or disable

password protection.

Information

Locking the screen requires that you assign a user password ( p. 429).
