Toothed belt
104 Service Instructions M-TYPE DELTA - 00.0 - 12/2019

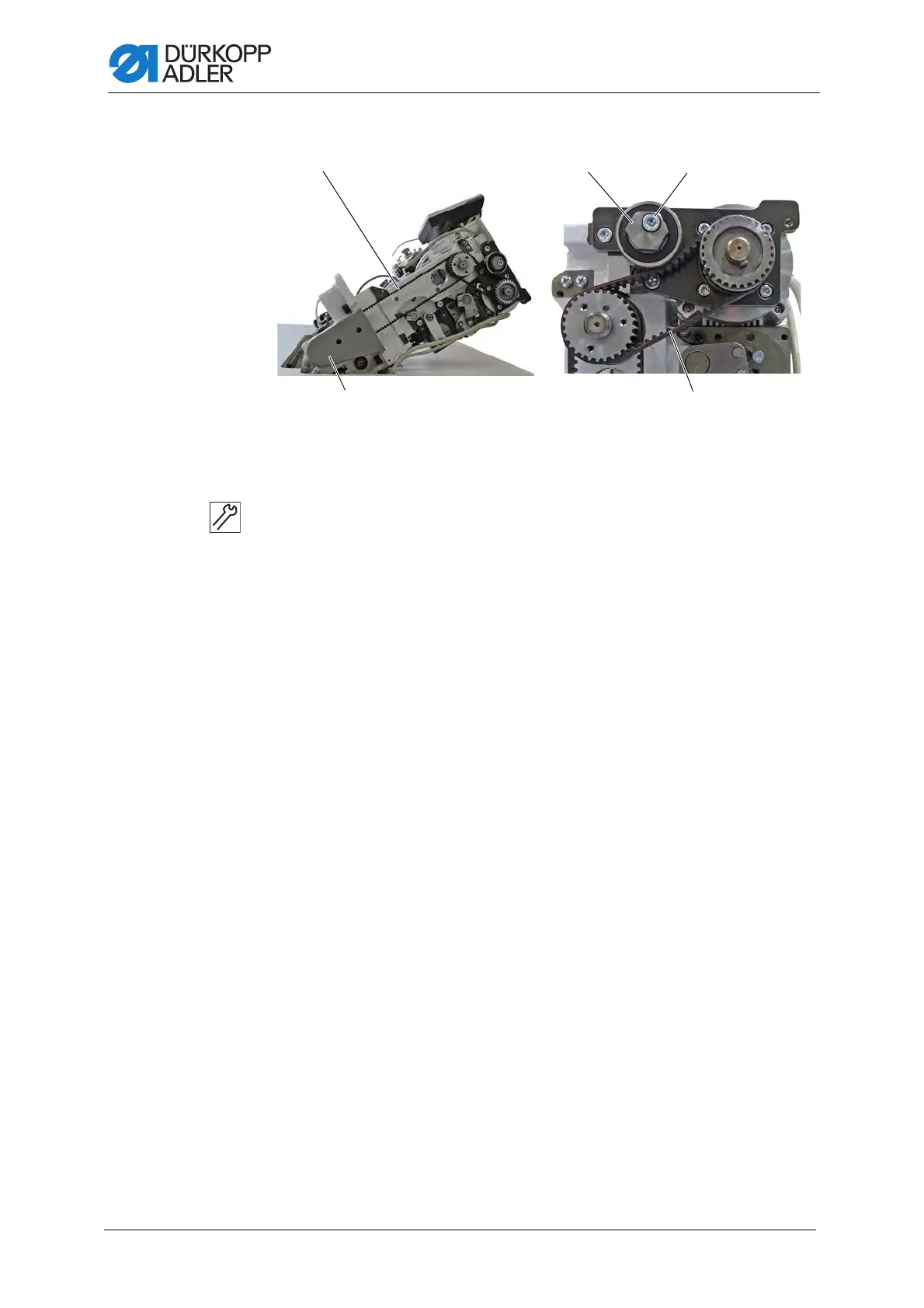

Fig. 86: Changing the lower toothed belt (2)
10. Tilt the machine head.
11. Disassemble the toothed belt cover (12).
12. Erect the machine head.
13. Loosen the screw (14) on the tensioning roller (10).
 The toothed belt tension is slack.
14. Remove the tensioning roller (10).
Make sure not to lose the washer.
15. Remove the toothed belt (13).
16. Tilt the machine head.
17. Remove the toothed belt (11).
(10) - Tensioning roller
(11) - Toothed belt
(12) - Toothed belt cover
(13) - Toothed belt
(14) - Screw
⑩⑭
⑫⑬
⑪
