Ecolab ULTRAX Compact - 6.3 Assignment of the pilot valve

Machines 9 to 12 are optional when upgrading the standard 8-type block to a 12-type
version (shown in light).
6.3 Assignment of the pilot valve
Plan view:

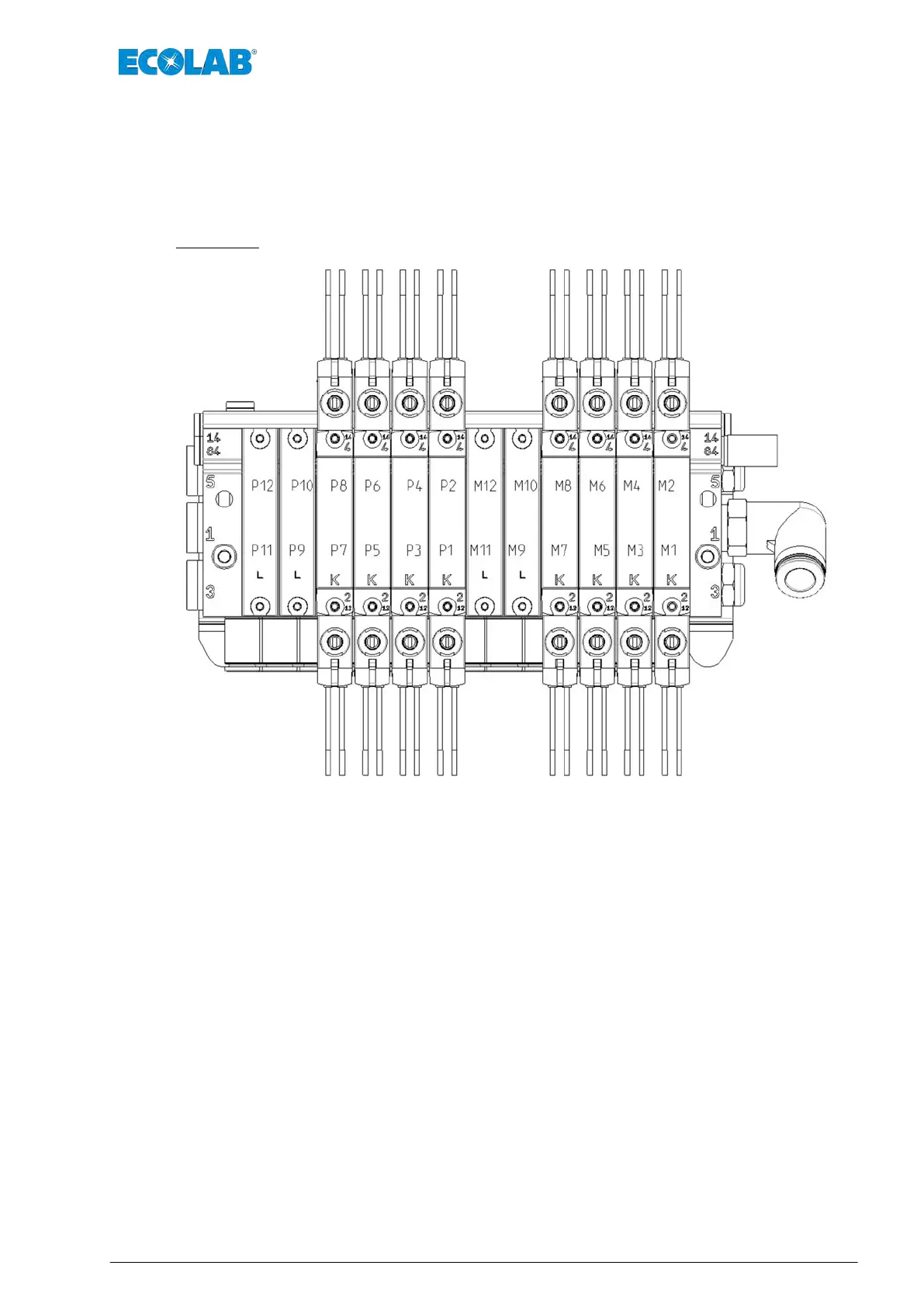

Fig. 8: Pilot valve - Plan view
Configuration
49 MAN046590 Rev. 6-03.2022
