Ecolab ULTRAX Compact - 13.2.1.9 Metering rates depending on back-pressure and stroke setting; 13.2.1.9.1 Pump capacity for type 00160; 1 MPa (10 bar); 13.2.1.9.2 Pump capacity for type 00160; 1.6 MPa (16 bar) (special version: high pressure)

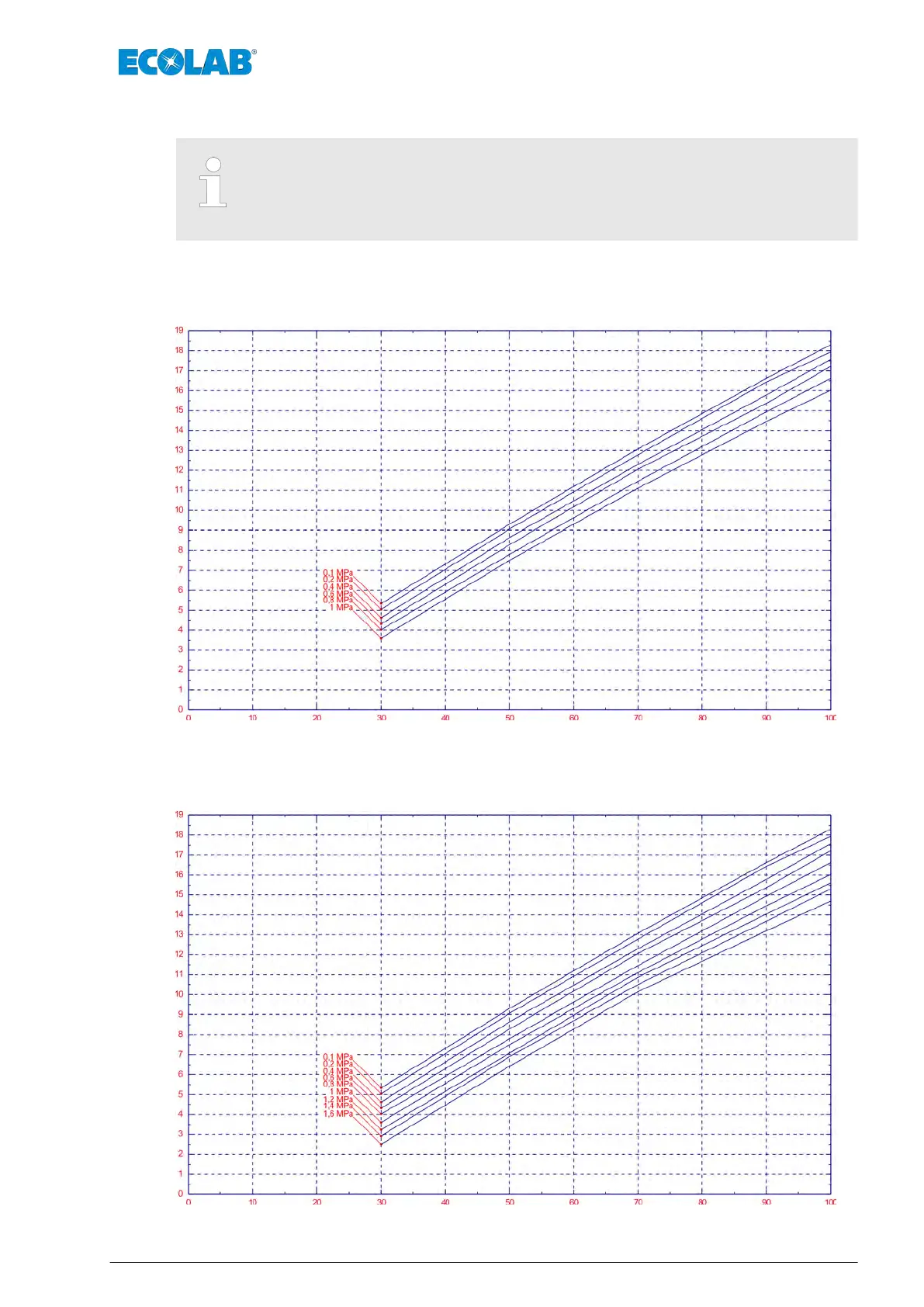

13.2.1.9 Metering rates depending on back-pressure and stroke setting
Setting accuracy + 15 %– 5 % of the rated value, all data is based on water at
20 °C and operation in accordance with the instructions in the user's manual.
The performance curves are shown for a pump frequency of 50 Hz.
13.2.1.9.1 Pump capacity for type 00160 / 1 MPa (10 bar)
13.2.1.9.2 Pump capacity for type 00160 / 1.6 MPa (16 bar) (special version: high pressure)
Technical data
101 MAN046590 Rev. 6-03.2022
