The following inspections are recommended:
n Suction tubes and pressure tubes for leak-free connections
n Suction valve and pressure valve for dirt and tightness
n Check that the discharge on the pump head is OK (diaphragm break)
n Correct metering
n That the metering head screws are tight (6± 1 Nm).
The service life of the diaphragm depends on the following:
– Back pressure
– Operating temperature
– Metering medium
We recommend that you check the diaphragm more frequently in extreme
operating conditions and if metering abrasive substances.
CAUTION!
Also refer to the operating instructions for the pump:
Ä Chapter 1.1.1 ‘Further instructions’ on page 6 .

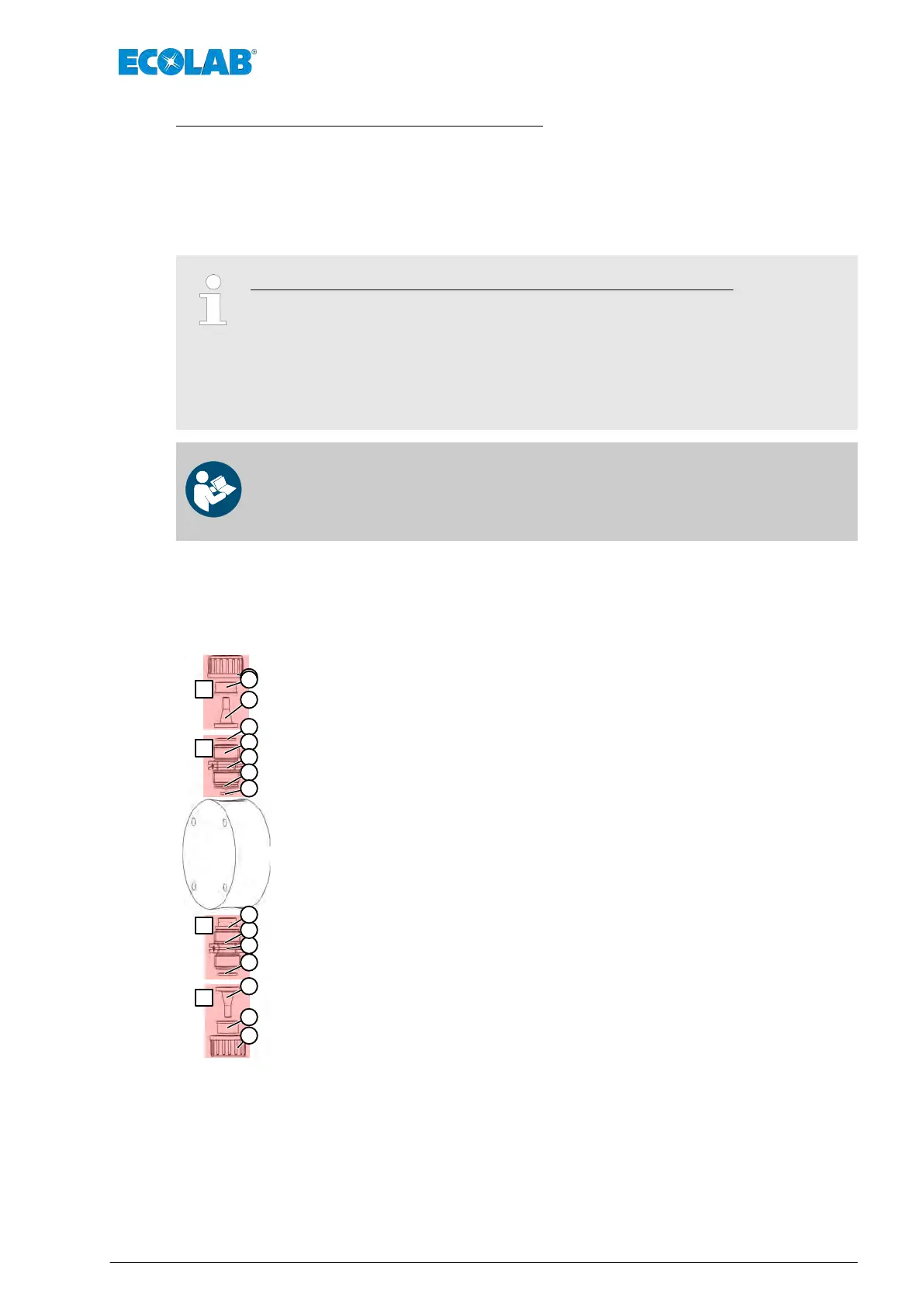

10.3.1 Replacement of suction/pressure valves
10.3.1.1 T
ype: 00160 - 00540
A
B
C
A
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
A Connection set
1 Union nut
2 Clamping piece
3 Tapered part
B
Pressure valve
4 O-ring, Ø 12 x 2.5 mm
5 Pressure valve
6 O-ring, Ø 18 x 2.5 mm
7 O-ring, Ø 16 x 2.5 mm
8 O-ring, Ø 7.65 x 1.78 mm
C Suction valve
4 O-ring, Ø 12 x 2.5 mm
5 Suction valve
6 O-ring, Ø 18 x 2.5 mm
7 O-ring, Ø 16 x 2.5 mm
Maintenance
69 MAN046590 Rev. 6-03.2022
