7.5 Connections
Create the connections as follows:
1. Fit suction pipes with EVA hose 10/16.
2. Guide the hoses through the pull relief fittings.
(
Ä
Chapter 4 ‘Layout’ on page 39 , Fig. 4 , no. 10)
3. Attach the hoses to the connection nipple of the diaphragm valve manifold block on
the product side using the enclosed hose clamps.
4. Tighten the pull relief screw fittings.
5. Connect Teflon tube Ø 10 / 16 to the diaphragm valve manifold block on the machine
side.
6. Feed the Teflon tube to the corresponding washer extractors.
7. Establish an electrical connection between the terminal box and the "MyControl" unit
(
Ä
Chapter 6.4 ‘Terminal assignment’ on page 50 , as well as the MyControl
manual).

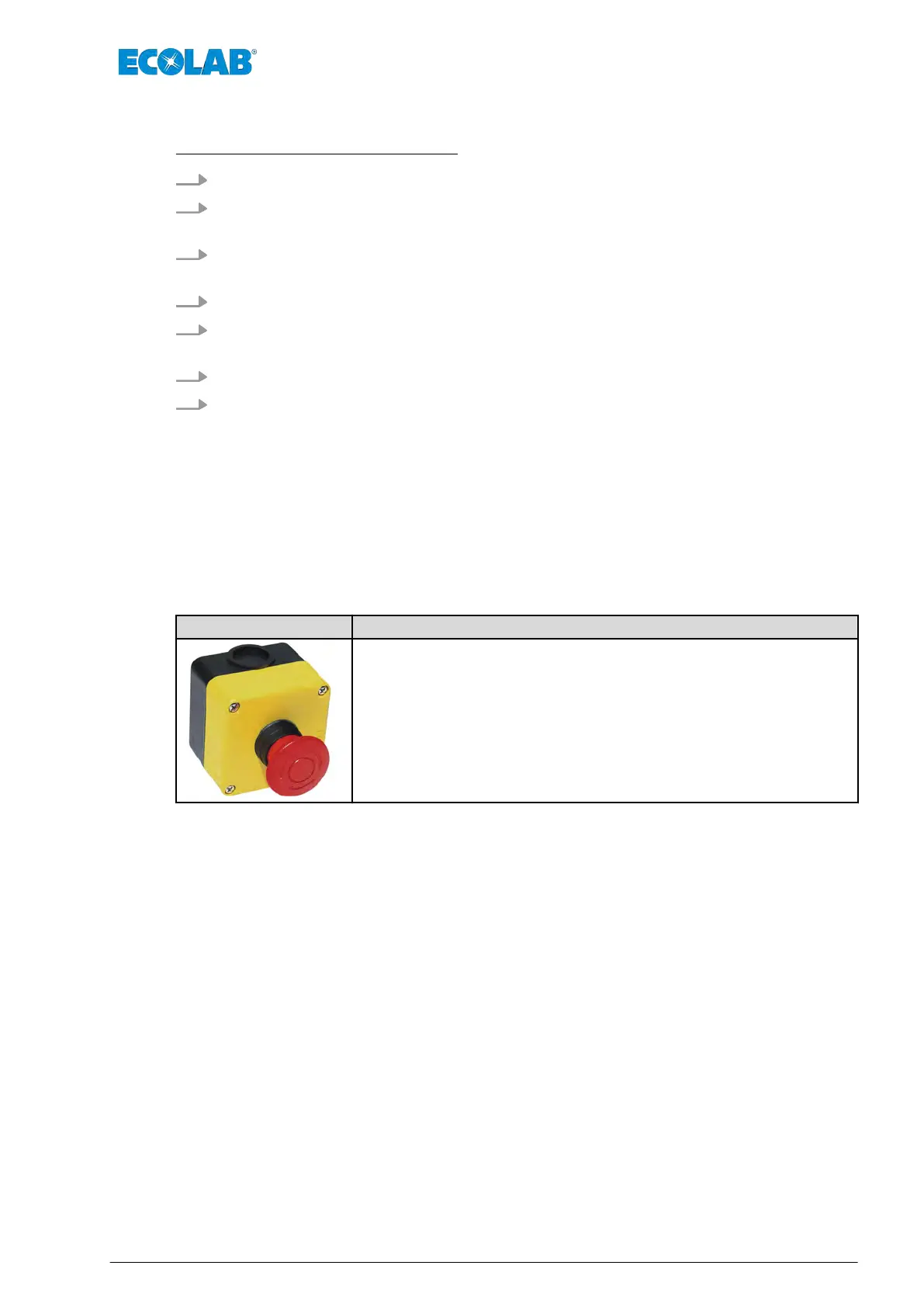

7.6 EMERGENCY STOP
For safety reasons, in cases where the controller (e.g. "MyControl") cannot be installed
in the immediate vicinity of the ULTRAX Compact, an emergency stop button must be
installed on the metering unit.
Illustration Description
Emergency stop button
Article no.: 201546
EBS no.: 10026016
Installation
57 MAN046590 Rev. 6-03.2022
