6 Configuration
6.1 Product assignment, diaphragm valve manifold block – product side
CAUTION!
Hoses with EVA specification in the dimensions 10/16 are to be used on the
"diaphragm valve manifold block - machine side".
1. Guide the hoses of the product suction pipes through the strain relief screw
connections ( Fig. 6 , item A).
2. Connect the hoses to the corresponding hose nipples ( Fig. 6 , item B) of the valve
block (
Fig. 6 , item C) using the hose clamps supplied.
3. Tighten the strain relief screw connections.
The following product assignments apply:
BC A
1 2
3
4
5 6
7
8
9 10
11
12

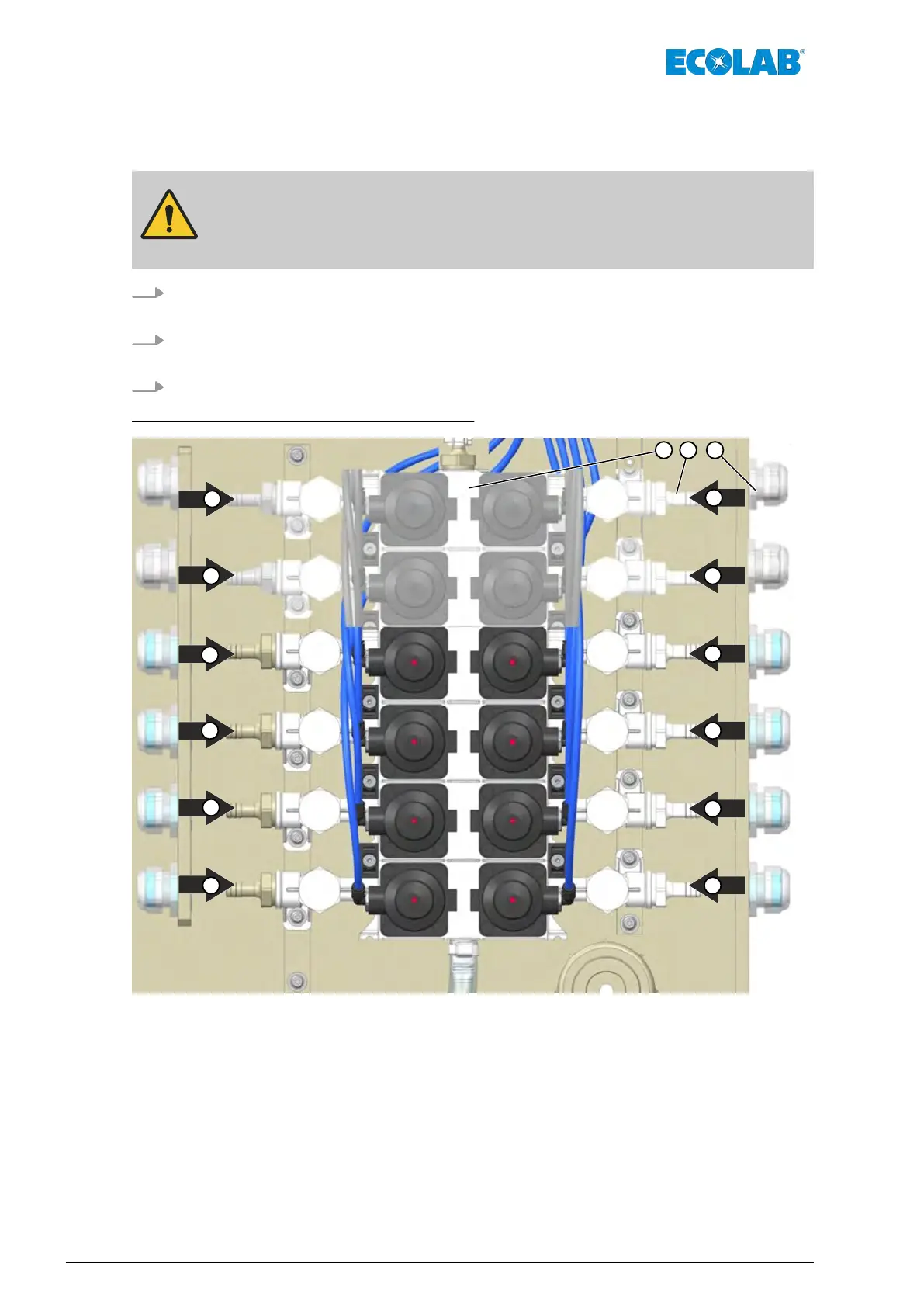

Fig. 6: Product assignment
Products 9 and 12 are optional when upgrading the standard 8-type block to a 12-type
version (shown in light).
