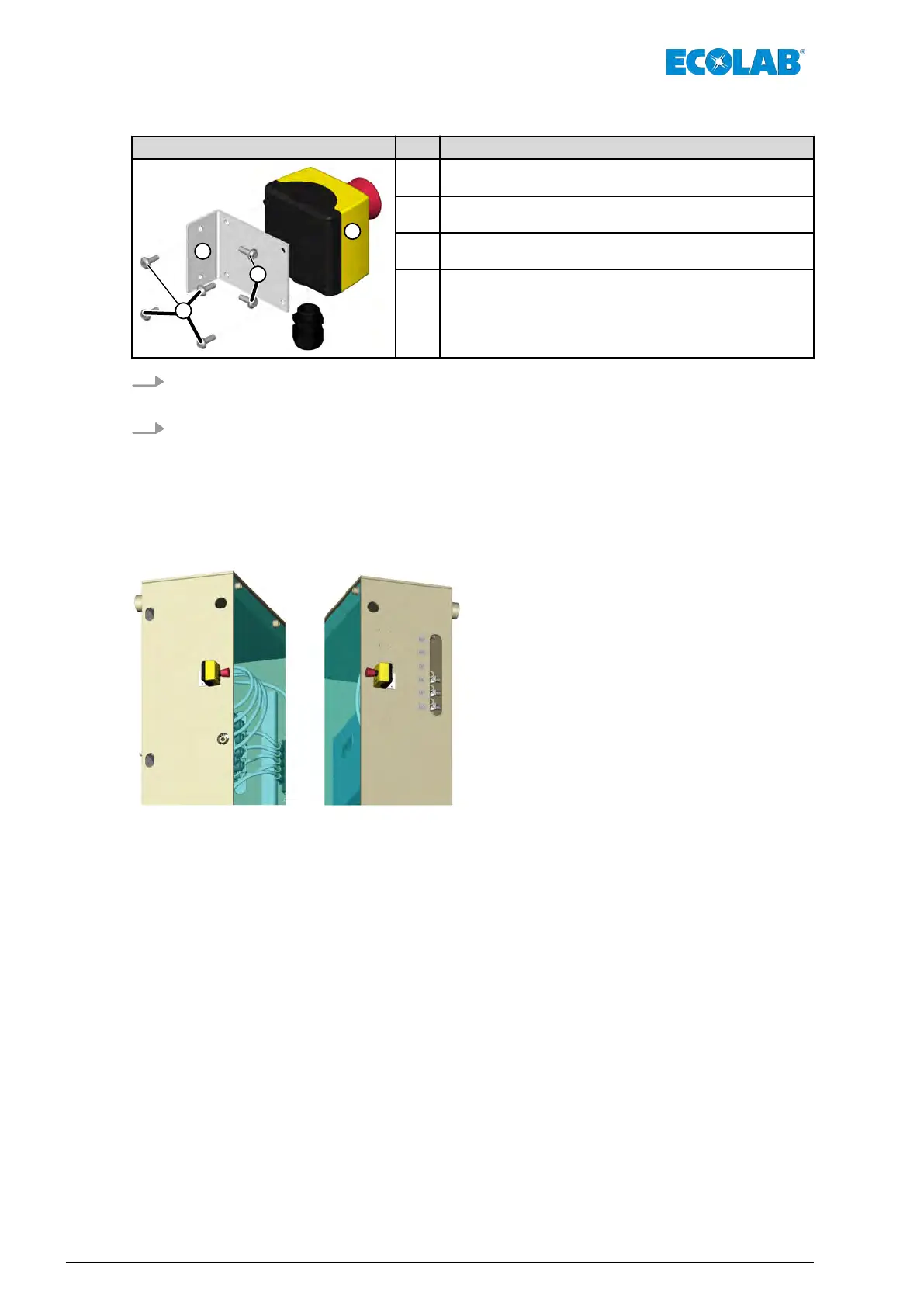

7.6.1 Mounting bracket: Emergency stop button
Illustration Item Description
1
2
3
4
1
Emergency switch
Article no.: 201546, EBS no.: 10026016
2
Screws (4 x)
Article no.: on request, EBS No.: On request
3
Emergency switch
Article no.: on request, EBS No.: On request
4
Emergency switch
Article no.: on request, EBS No.: On request
1. Install the mounting bracket on the emergency stop switch using the provided
screws.
2. Mount the emergency stop button with mounting bracket on the outside wall of the
metering station (see also
Ä Chapter 7.6.2 ‘Assembly suggestion: Emergency stop
button on the rack (left or right)’ on page 58 ).
7.6.2 Assembly suggestion: Emergency stop button on the rack (left or right)
Fig. 13: Assembly of the emergency stop button on the rack
(left or right)
Installation
