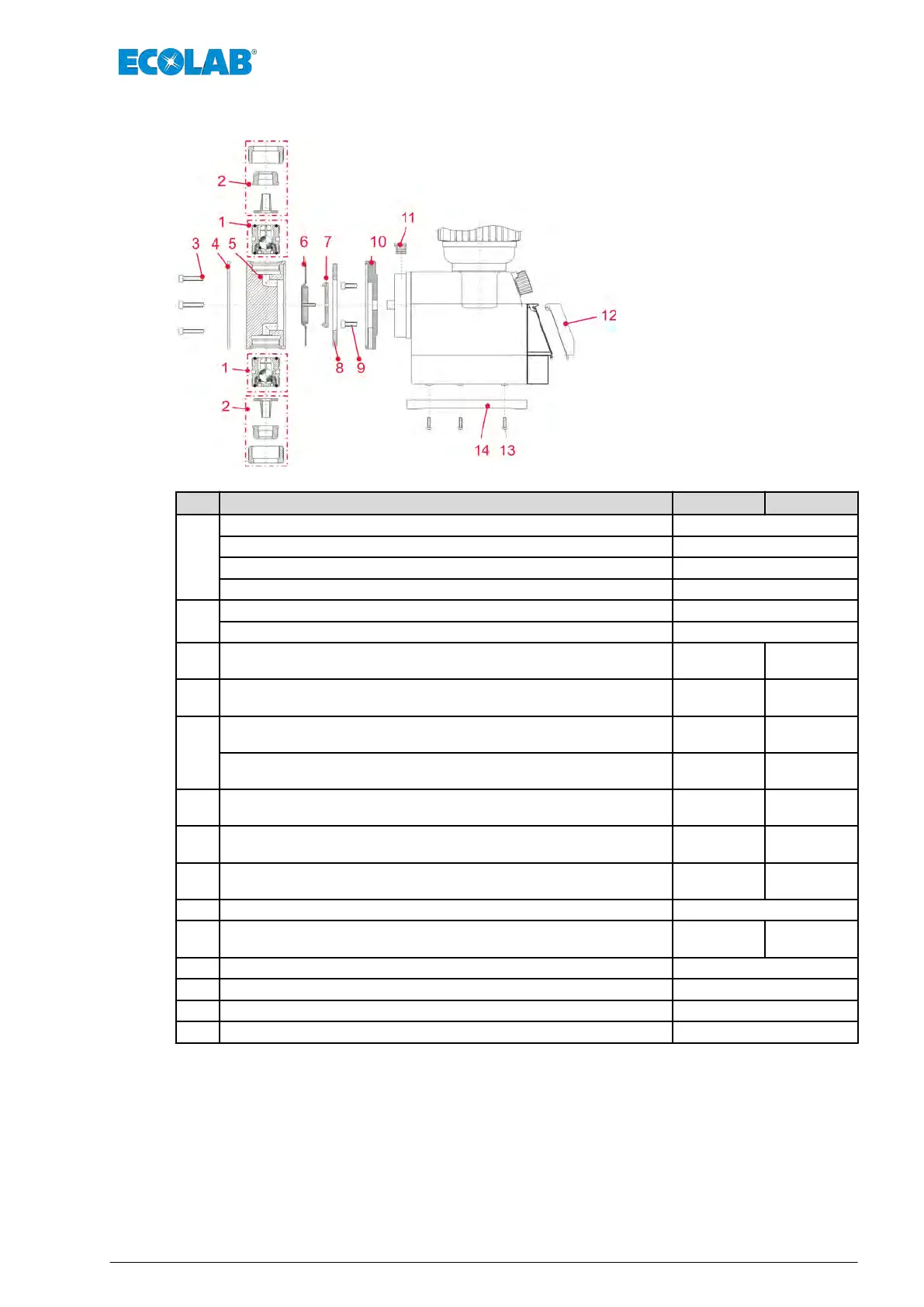

11.4.2 Drawing / parts list for type 00800 and 01200
Item Description Type 00800 Type 01200
1
Suction/pressure valve PP/FPM (Viton B) SDV PPFPKE000 G1¼ 249075 (10001904)
Suction/pressure valve PP/EPDM SDV PPEPKE000 G1¼ 249055 (10037053)
Suction/pressure valve PVDF/FPM (Viton B) SDV PVFPKE000 G1¼ 249074 (10005979)
Suction/pressure valve PVDF/EPDM SDV PVEPKE000 G1¼ 249041 (10036969)
2
Connection set, PP, G 1 ¼ i - hose 12/21 mm 249238 (10019500)
Connection set, PVDF, G1¼ i - hose 12/21 mm 249258 (10079635)
3 Pump head screw
413031047
(10002860)
413031064
(10050612)
4 Proofing plate
34900139
(10016684)
34900140
(10096543)
5
Pump head PP
34900105
(10002753)
34900106
(10015861)
Pump head PVDV
34900178
(10003757)
34900179
(10001755)
6 Diaphragm
34900111
(10001751)
34900112
(10001907)
7 Supporting disk
34900149
(10015860)
34900151
(10096544)
8 Intermediate ring
34900136
(10002822)
34900137
(10096545)
9 Screw 413031042 (10020173)
10 Intermediate plate
34900134
(10002230)
34900135
(10001966)
11 Cover plug 34900168 (10015859)
12 Clear cover 34800120 (10015884)
13 Screw, B40 x 16 413071167 (10017157)
14 Mounting plate 34900120 (10004471)
Wearing and spare parts
