Ecolab ULTRAX Compact - 11.6 Spare and wearing parts for oval gear meters OGMPLUS; 11.6.1 Spare parts

11.6
Spare and wearing parts for oval gear meters OGM
PLUS
11.6.1
Spare parts
1
2
3
4
5
1
8
2a
1
7
6
6
2
3
4
5

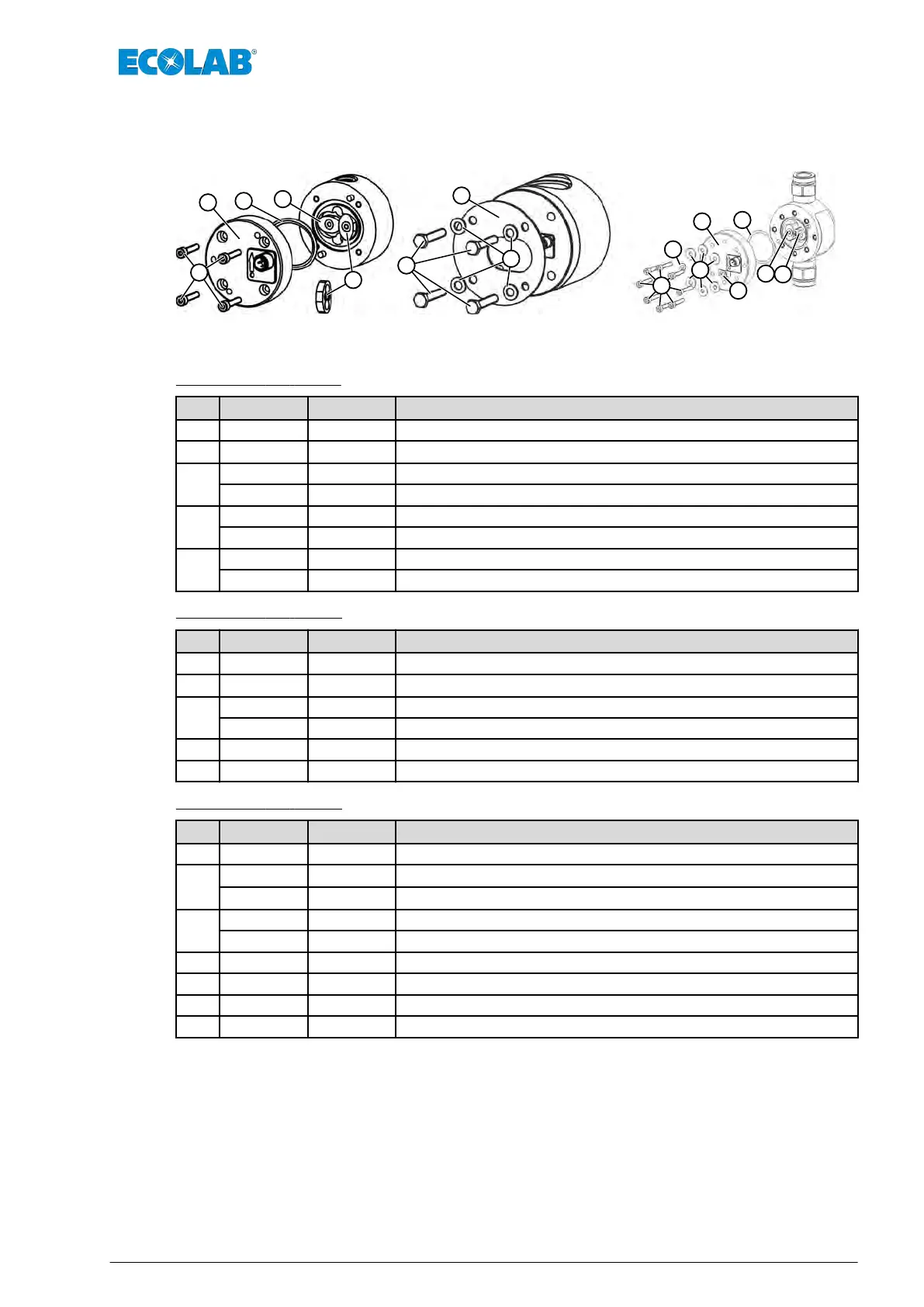

Fig. 21: Spare parts
Type: OGM
Plus
00112
Item Article no. EBS no. Description
1 413031007 10063211 Hexagon socket screw, M4 x 20 stainless steel 304
2 280189 10032063
OGM
PLUS
01200 cover, complete, PVC
3
417003356
On request O-ring 35 x 2.5 FPM
417001330 10122528 O-ring 35 x 2.5 EPDM
4
38006046 On request Oval gear PVC
38006043 10035544 Oval gear PVDF
5
38006044 On request Oval gear PVC with magnet
38006041 10032065 Oval gear PVDF with magnet
Type: OGM
Plus
00540
Item Article no. EBS no. Description
1 413031023 10030685 Hexagon socket screw, M5 x 25 stainless steel 304
2 280091 On request
OGM
PLUS
01200 cover, complete, PVC
3
41700341
1 10006279 O-ring 40 x 2 FPM
417001365 10200033 O-ring 40 x 2 EPDM
4 38006018 10055296 Oval gear PEEK
5 38006049 10055295 Oval gear PEEK with magnet
Type: OGM
Plus
01200
Item Article no. EBS no. Description
1 413031023 10030685 Hexagon socket screw, M5 x 25 stainless steel 304
2
280092 10019388
OGM
PLUS
01200 cover
, complete, PVC
280088
10019395
OGM
PLUS
01200 cover, complete, PP
3
417003411 10006279 O-ring 40 x 2 FPM
417001365 10200033 O-ring 40 x 2 EPDM
4 38006023 10019430 Oval gear PEEK
5 38006066 10019393 Oval gear PEEK with magnet
6 413501720 10015901 Washer B15 x 5.3 x 1.6 DIN9021 ISO7093 stainless steel 304
7 413500360 10005460 Washer form A 5.5 x 10 x 1 DIN 126 stainless steel 304
Wearing and spare parts
83 MAN046590 Rev. 6-03.2022
