Assignment:

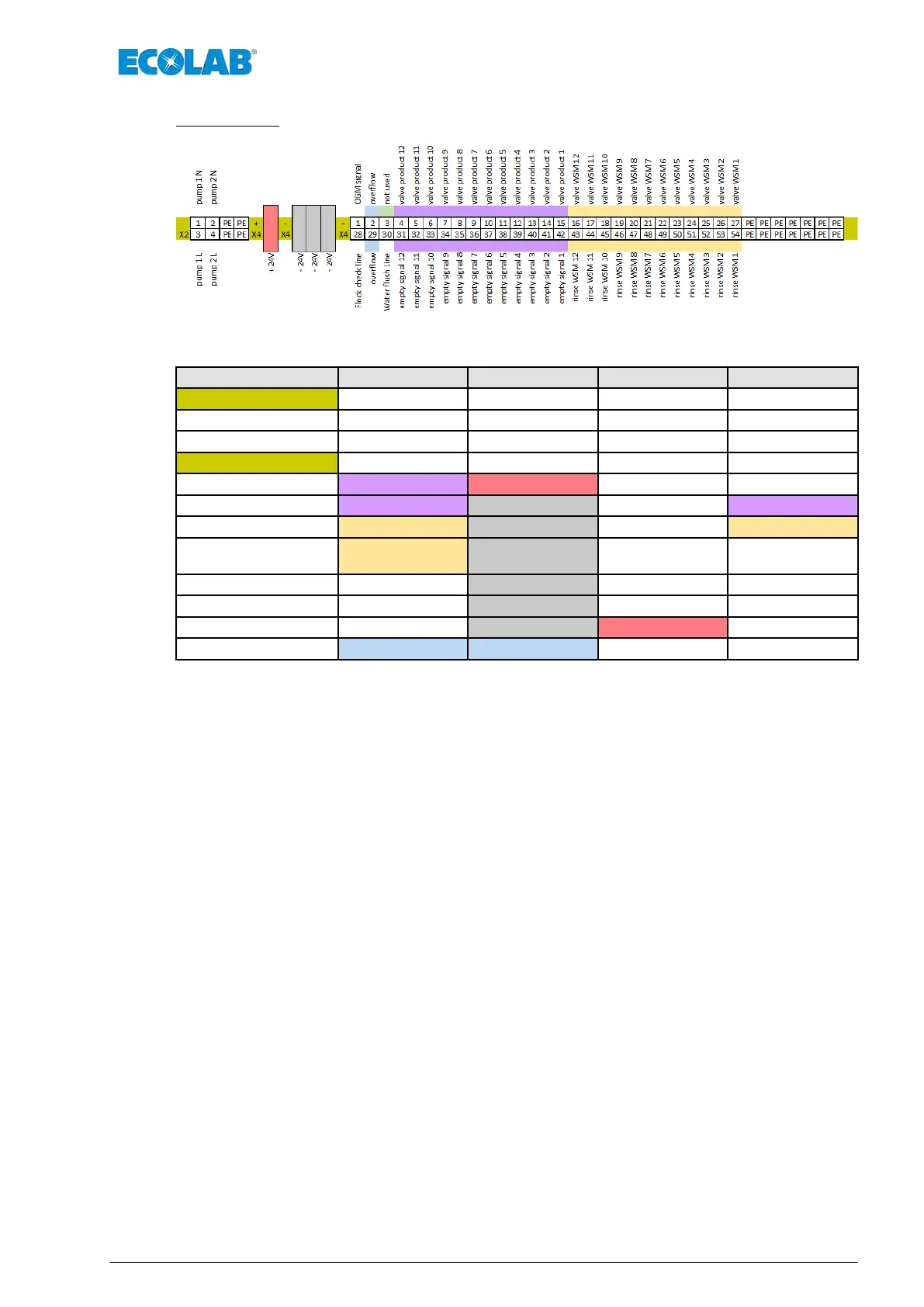

Fig. 11: Terminal assignment - Allocation
Type Connection 1 Connection 2 Connection 3 Valve cluster
Terminal block -X2
Pump 1 Terminal 3 (L) Terminal 1 (N) PE
Pump 2 Terminal 4 (L) Terminal 2 (N) PE
Terminal block -X4
Empty signal 1-12 Terminal 42 - 31 X4 +24V
Valve for product 1-12 Terminal 15 - 4 X4 -24V P12-P1
Valve for WSM 1-12 Terminal 27 - 16 X4 -24V M12-M1
Valve for rinsing WSM
1-12
Terminal 54 - 43 X4 -24V PE
Valve for rinsing TCR Terminal 30 X4 -24V PE
Flow Check Line Terminal 28 X4 -24V
Oval gear meter OGM Terminal 1 X4 -24V X4 +24V
Overflow Terminal 29 Terminal 2
Configuration
51 MAN046590 Rev. 6-03.2022
