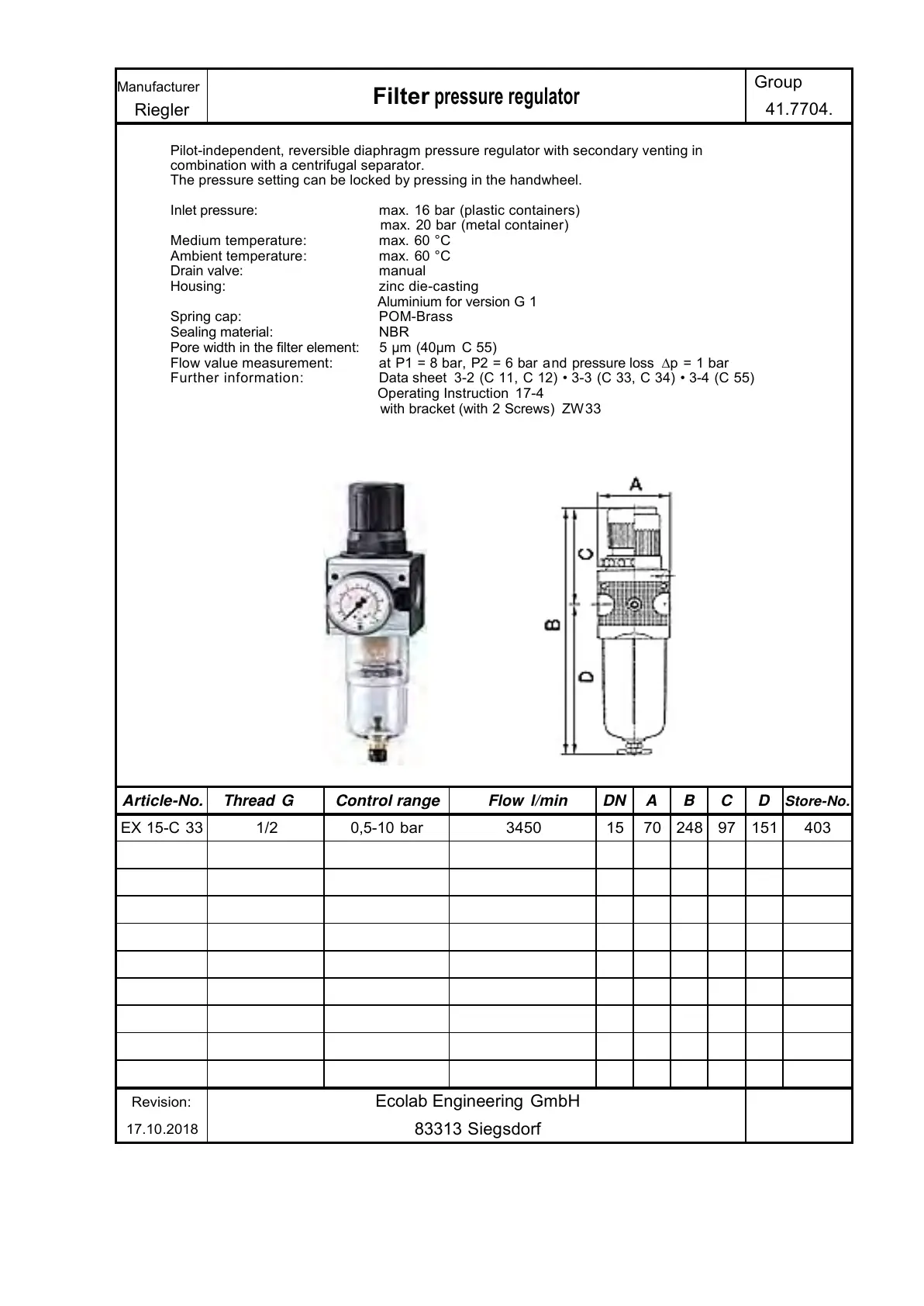

Pilot-independent, reversible diaphragm pressure regulator with secondary venting in
combination with a centrifugal separator.
The pressure setting can be locked by pressing in the handwheel.
Inlet pressure: max. 16 bar (plastic containers)
max. 20 bar (metal container)
Medium temperature: max. 60
°C
Ambient temperature: max. 60
°C
Drain valve: m
anual
Housing: zinc die-casting
Aluminium for version G
1
Spring cap: POM-Brass
Sealing material:
N
B
R
Pore width in the filter element: 5 µm (40µm C
55)
Flow value measurement: at P1 = 8 bar, P2 = 6 bar and pressure loss ∆p = 1
bar
Further information: Data sheet 3-2 (C 11, C 12) • 3-3 (C 33, C 34) • 3-4 (C
55)
Operating Instruction
17-4
with bracket (with 2 Screws) ZW
33
