User Manual Section 6
GFK-2958L May 2021
Installation 409
2.
Place the field bus network adapter (module side to the right) on the DIN rail so that it
audibly clicks into place.

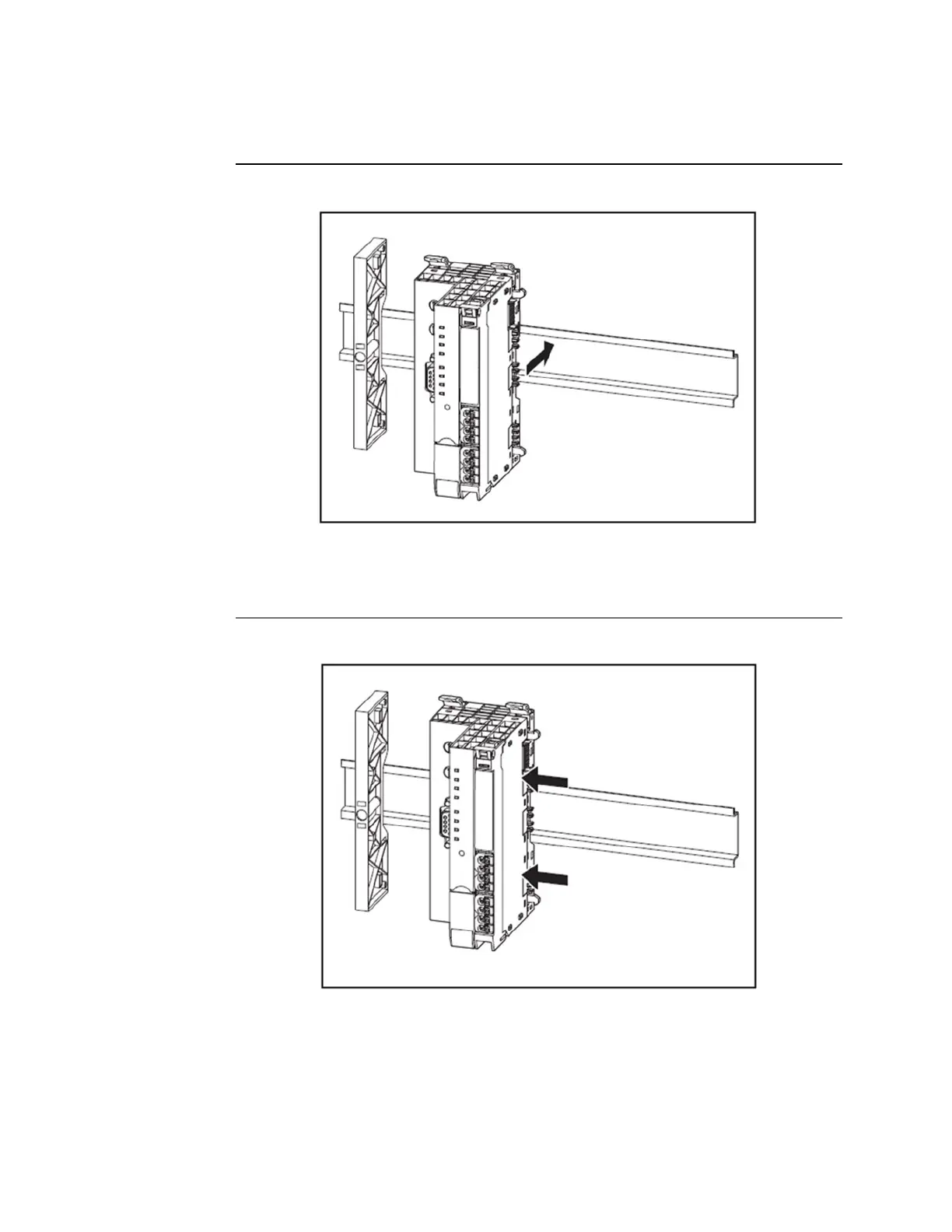

Figure 242: Attaching the Bus Network Adapter to the DIN Rail
3.
Slide the bus network adapter to the left until it completely connects with the end
bracket. At the same time, press the bus network adapter as close as possible to the
DIN rail so that the network adapter is not tilted.
Figure 243: Sliding the Bus Network Adapter into Position
4.
Place the first module on the DIN rail and press it down firmly. It must audibly click
into place.
5.
Slide the module to the left until it audibly clicks into place on the bus network
adapter. At the same time, press the module as close as possible to the DIN rail so that
the module is not tilted.
