PROFINET Scanner Parameters (General Parameters Tab)
The EPXPNS001/ EPXPNS101 has below module parameters:

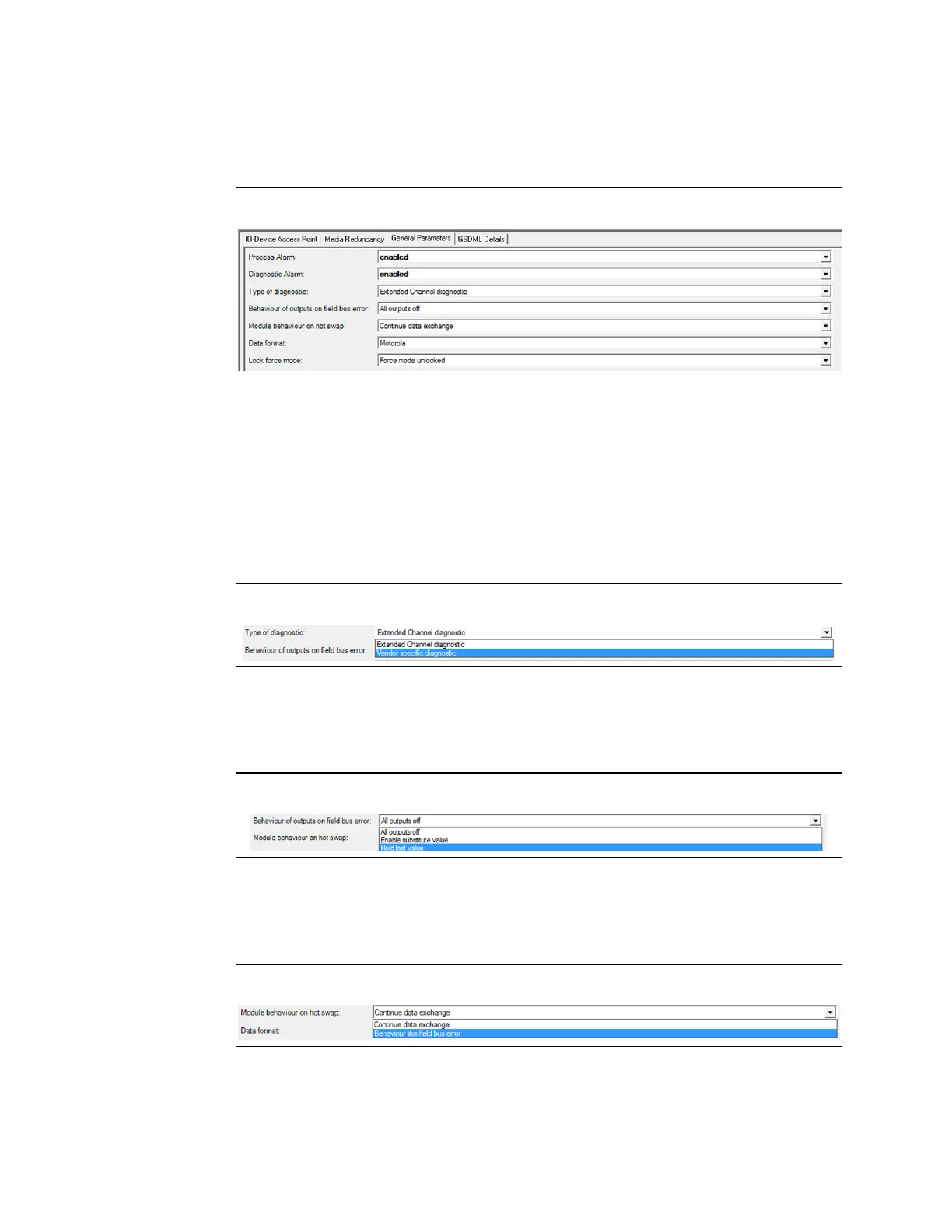

Figure 265
Process Alarm, Diagnostic Alarm:
User can select the process alarm, diagnostic alarm to be enabled or disabled. By default,
they are disabled.
Type of Diagnostic:
The Type of diagnostic can be selected either “Extended Channel diagnostic” or “Vendor
Specific diagnostic”.
Figure 266
Behavior of Outputs on Field Bus Error:
The behavior of the outputs can be set to all outputs to go off, set to substitute value or Hold
last state.
Figure 267
Module Behavior on Hot Swap:
When the user performs hot swap, user can either continue data exchange or can behavior
like field bus error.
Figure 268
Data Format:
Use can select either Motorola or Intel data format. By default, it is Motorola.
