User Manual Section 8
GFK-2958L May 2021
Commissioning 432

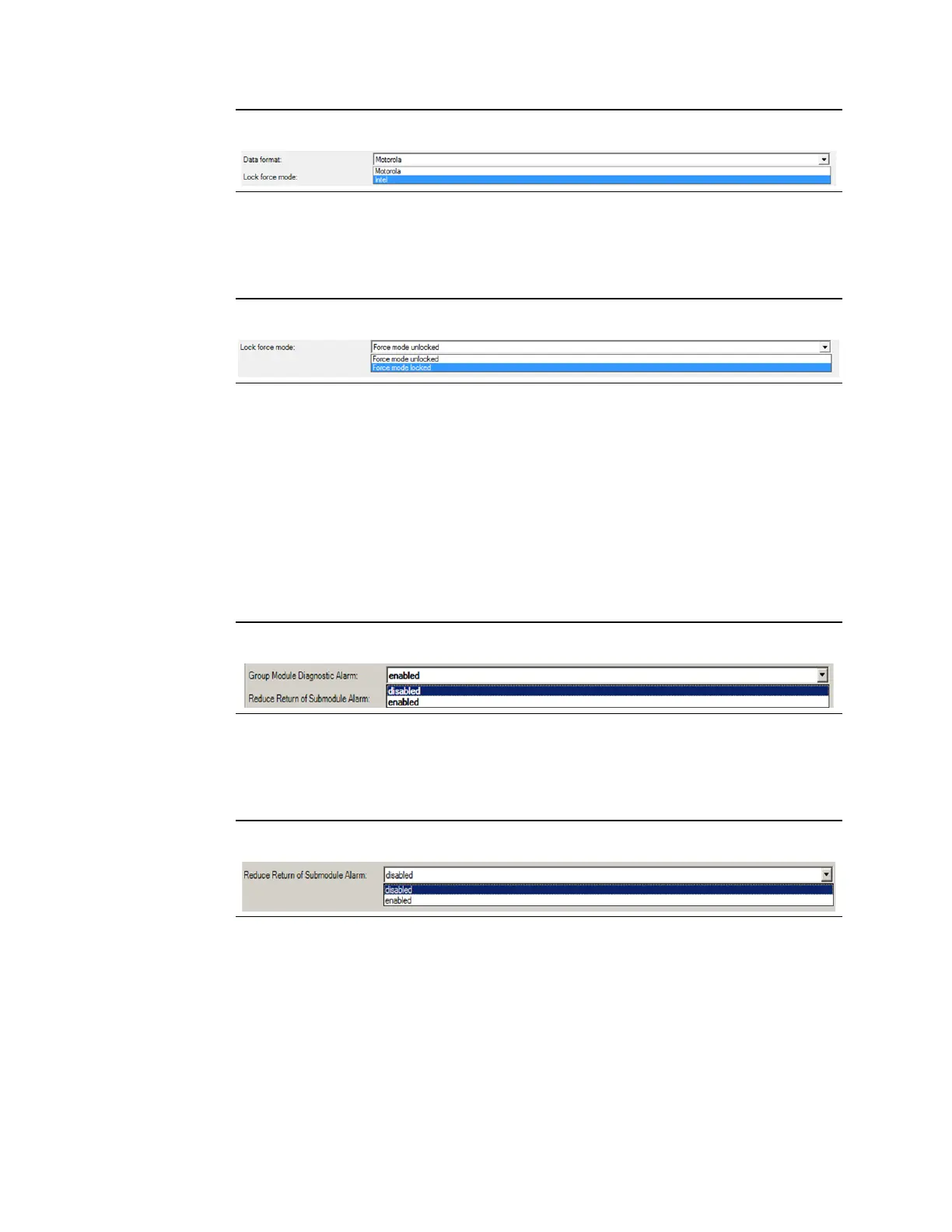

Figure 269
Lock Force Mode:
User can enable the force of outputs while the slave is communicating with the master or
can lock the force mode so that the outputs cannot be forced.
Figure 270
These parameters below are added from revisions: EPXPNS001-ABAE and EPXPNS101-
AAAA.
Option Handling:
User can either enable or disable the Option handling. By default, it is “disabled”.
Group Module Diagnostic Alarm:
User can either enable or disable the Group Module Diagnostic Alarm. By default, it is
“disabled”.
Figure 271
Reduce Return of Submodule Alarm:
User can either enable or disable the Reduce Return of Submodule Alarm. By default, it is
“disabled”.
Figure 272
PROFINET Scanner Parameters (GSDML Tab)
The GSDML tab 0f the EPXPNS001/ EPXPNS101 module displays the information from its
GSDML file. See an example below:
