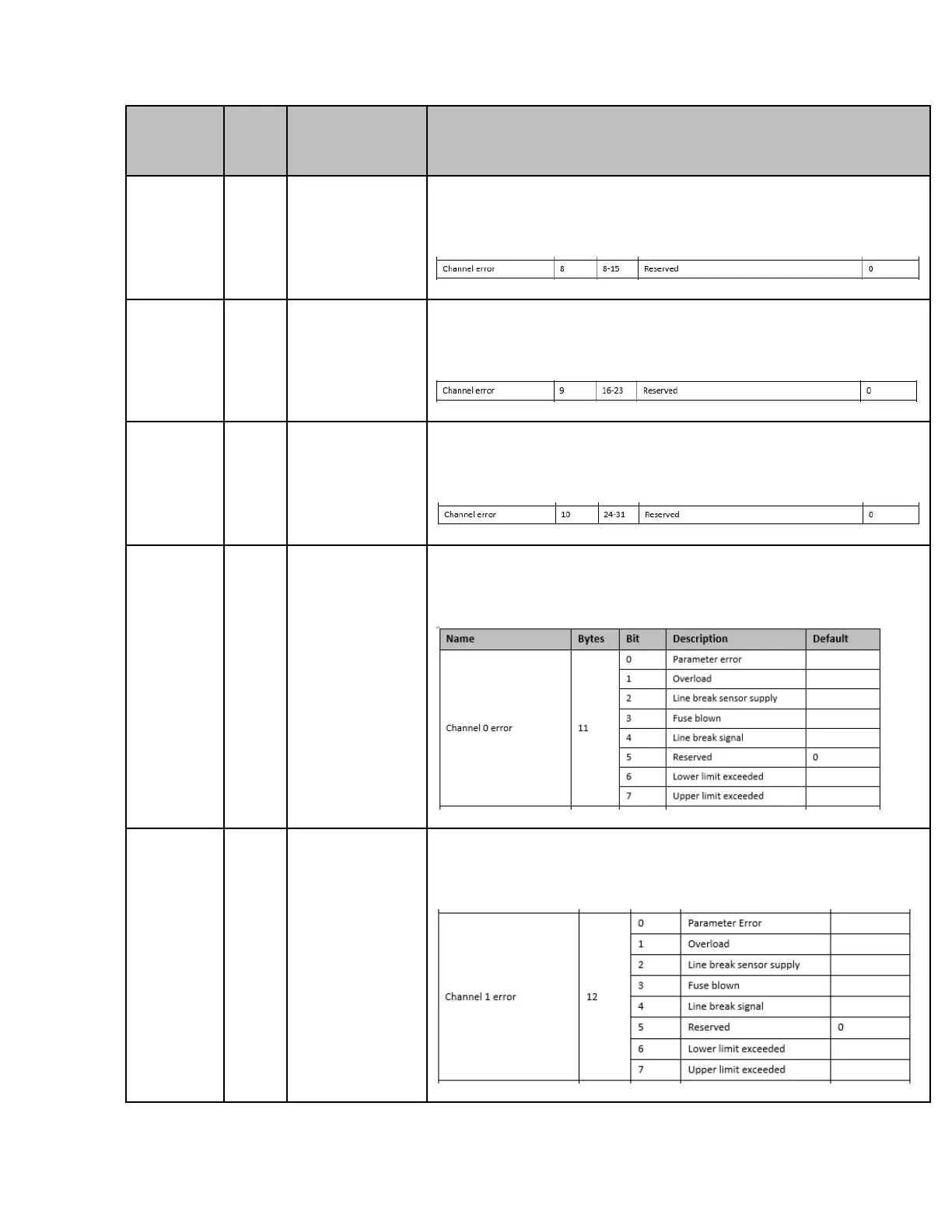

Detailed Descriptions of the Fieldbus Network Adapters 83
Fault Extra
Data Byte
Value
in
HEX
Field Name
Description
12
00
Channel error
Manufacturer Diagnostic data: byte 8, For example, EP-3264 byte 8 refers
to channel error & as per the above said example, the value is reserved to
00.
13
00
Channel error
Manufacturer Diagnostic data: byte 9, For example, EP-3264 byte 9 refers
to channel error & as per the above said example, the value is reserved to
00.
14
00
Channel error
Manufacturer Diagnostic data: byte 10, For example, EP-3264 byte 10
refers to channel error & as per the above said example, the value is
reserved to 00.
15
10
Channel 0 error:
Manufacturer Diagnostic data: byte 11,for example EP-3264 byte11
refers to channel 0 error & as per the above said example, the value is
10.i.e, Bit4 =1, which indicates Line Break signal
16
00
Channel 1 error:
Manufacturer Diagnostic data: byte 12,for example EP-3264 byte12
refers to channel 1 error & as per the above said example, the value is
10.i.e, Bit4 =1, which indicates Line Break signal
