Emerson PACSystems RSTi-EP - Page 98

User Manual Section 4
GFK-2958L May 2021
Detailed Descriptions of the Fieldbus Network Adapters 84
Fault Extra
Data Byte
Value
in
HEX
Field Name
Description
17
00

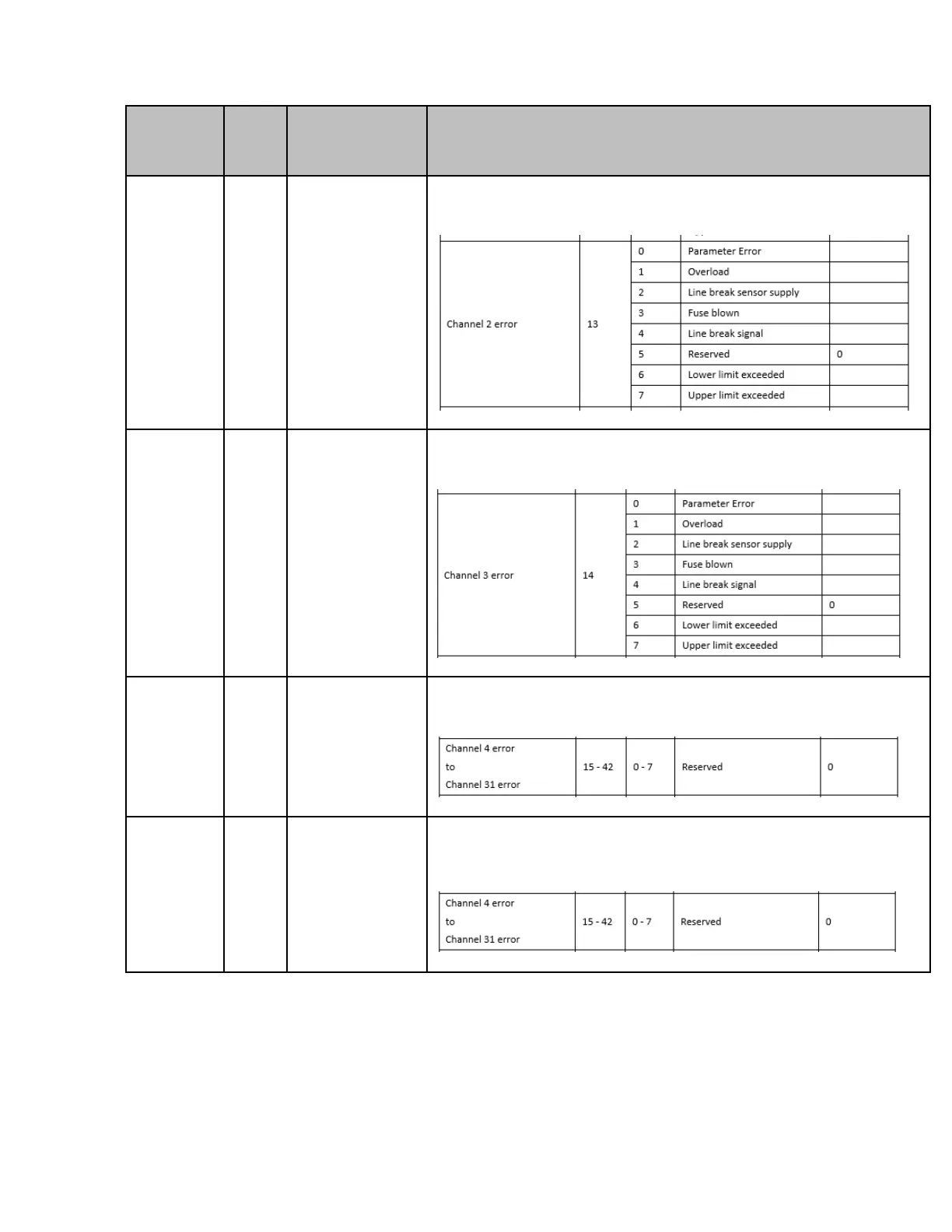

Channel 2 error:
Maintenance Diagnostic data: byte 14, refer Module specific Diagnostic
data
18
00
Channel 3 error:
Maintenance Diagnostic data: byte 15, refer Module specific Diagnostic
data
19
00
Channel 4 error
Maintenance Diagnostic data: byte 16, refer Module specific Diagnostic
data
20
00
Channel 5 error
Maintenance Diagnostic data: byte 17,
For EP-3264, BYTE17 refers to the Channel5 error.
Similar to this, refer to respective Module specific diagonstics for other IO modules.
Now, Now if Sensor supply “AI 0” is re-connected back to EP-3264, Line break Fault
disappears message is shown in IO fault table.
