EPSON EPL-N4000/EPL-N4000+ Chapter 4 Disassembly and Assembly
Rev.B 133
4.1 Overview
This section contains the removal and replacement procedures for
major parts and subsystems within the printer.
4.1.1 Cautions before starting
See the precautions below when disassemblin
g
or assemblin
g
EPLN4000.
4.1.2 Tools
The table below shows the tools recommended for disassemblin
g
and
assemblin
g
. Use only tools that meet these specification.
Table 4-1. Tools
4.1.3 Notations in the Manual

Locations such as R or ri
g
ht,
g
iven in the manual assume you are
facin
g
the printer console panel.

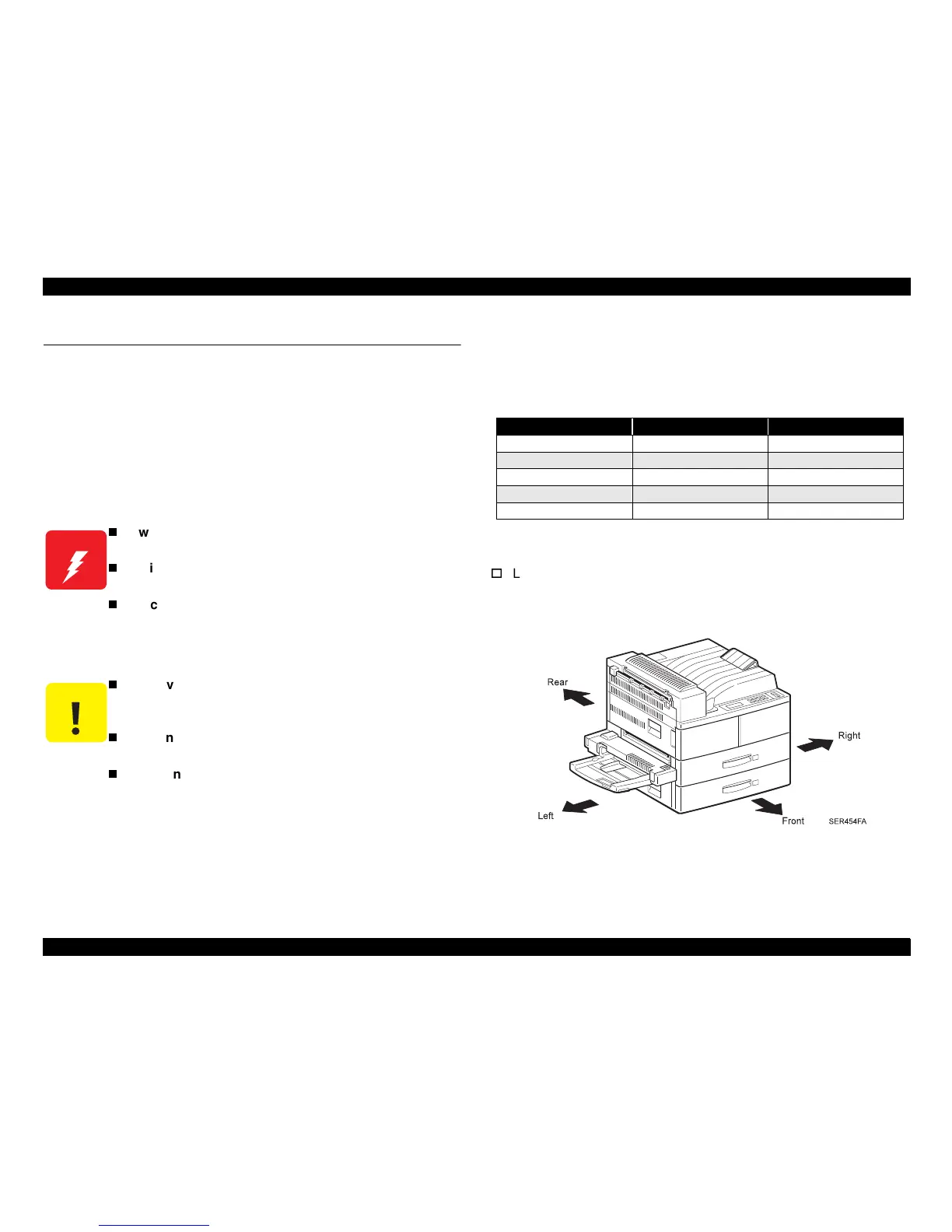

Figure 4-1. Notations
W ARNING

Switch off the printer power and disconnect the AC
power cord from the wall outlet.

Wait at least 30 minutes for the Fuser to cool before
removing parts in the Fuser area.

Since this printer weights approximately 50Kg, at
least two people should carry it when moving it.
CAUTION

Remove the EP Cartridge and cover it with a dark
cloth or place it in a sealed container to protect it
from exposure to light.

Disconnect all interface cables from the back of the
printer.

Wear an electrostatic discharge wrist strap to protect
sensitive printer PWBs from damage.
Name Availability Code
+ Driver No.1 O B743800100
+ Driver No.2 O B743800500
- Driver O B743000100
A pair of tweezers O B641000100
Cuttin
g
Pliers O B740400100
