Epson EPL-N4000 - MSI Size Sensor Assembly; Removal

EPSON EPL-N4000/EPL-N4000+ Chapter 4 Disassembly and Assembly
Rev.B 167
4.2.25 MSI Size Sensor Assembly
(See “MSI Tray Assembly” on pa
g
e -268)
4.2.25.1 Removal
1. Remove the MSI Feeder Assembly. (“MSI Feeder Assembly
(Manual Feeder)” on pa
g
e -164)
2. Place the MSI Feeder upside down, with the Tray facin
g
you.
3. Remove the two screws securin
g
the Lower Cover to the Upper
Cover.
4. Locate the three latches on the ri
g
ht side of the Tray. (See the
fi
g
ure)
5. Press the first latch while you pry the ed
g
e of the Lower Cover out of
the Upper Cover.
6. Repeat step 4 for the remainin
g
two latches located on the ri
g
ht side
of the Tray.
7. Repeat step 4 for the two latches that are located on the left side of
the Tray, and remove the Lower Cover from the Upper Cover.
8. Remove the MSI Tray.
9. Squeeze to
g
ether the latches holdin
g
the MSI Size Sensor to the
MSI Side Guide, and pry the Sensor off away from the Upper Cover.
10. Disconnect J107 and remove the Sensor Assembly.

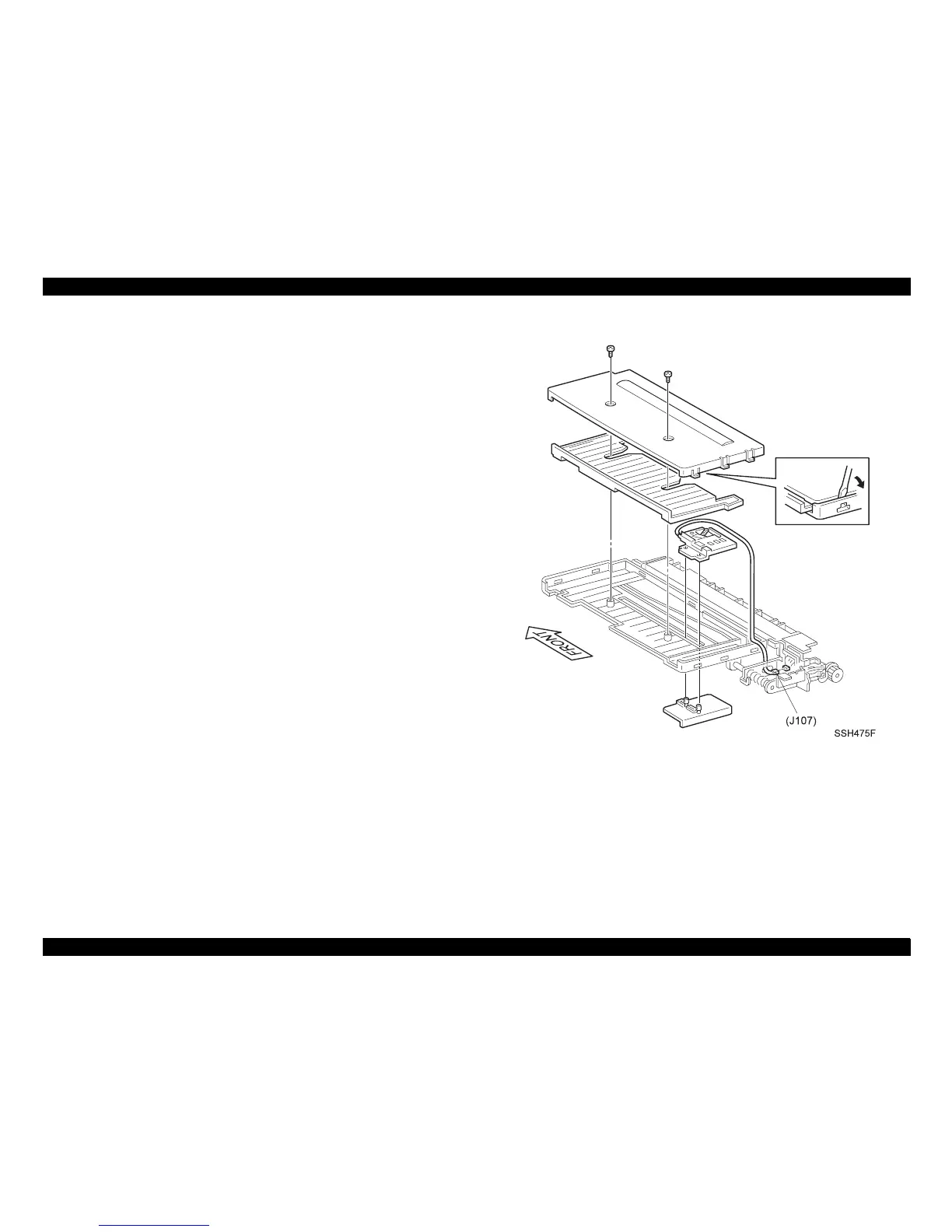

Figure 4-36. Removal of MSI Size Sensor Assembly
