EPSON EPL-N4000/EPL-N4000+ Chapter 7 Appendix
Rev.B 279
7.3.27 Exit Upper Chute Assembly
Table 7-48. Parts Name for Exit Upper Chute Assembly

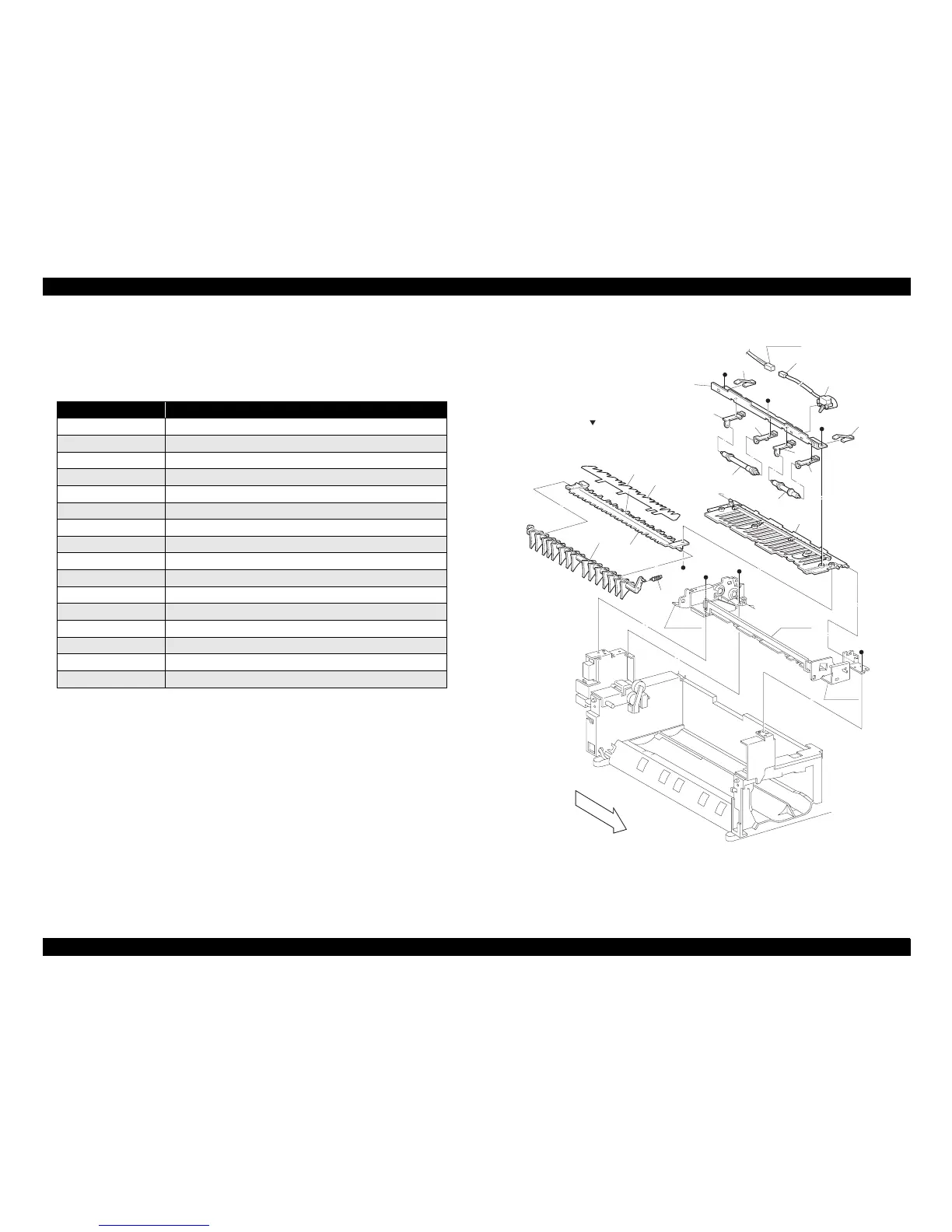

Figure 7-51. Exit Upper Chute Assembly
No. in the Figure Unit / Parts Name
1 CHUTE ASSEMBLY-UPPER
2 SWITCH ASSEMBLY
3 PLATE-TIE
4 SPRING PLATE
5 SPRING ASSEMBLY-PINCH, H
6 SPRING ASSEMBLY-PINCH, I
7 PINCH ROLLER, FRONT
8 PINCH ROLLER, REAR
9 EXIT UPPER CHUTE
10 GUIDE PAPER
11 GUIDE PAPER
12 EXIT MIDDLE CHUTE
13 EXIT GATE
14 EXIT GATE SPRING
15 SPRING ASSEMBLY -PINCH, J
16 SPRING ASSEMBLY-PINCH, K
SER528FBSER528F
B
1 (with 2~16)
2
3
4
4
5
6
7
8
9
15
16
11
12
10
13
14
PL9.1.21PL9.1.22
PL9.1.20
s
s
s
s
s
s
s
FRONT
(J133)
PL9.1.23
