EPSON EPL-N4000/EPL-N4000+ Chapter 7 Appendix
Rev.B 271
7.3.19 Registration
Table 7-40. Parts Name for Registration

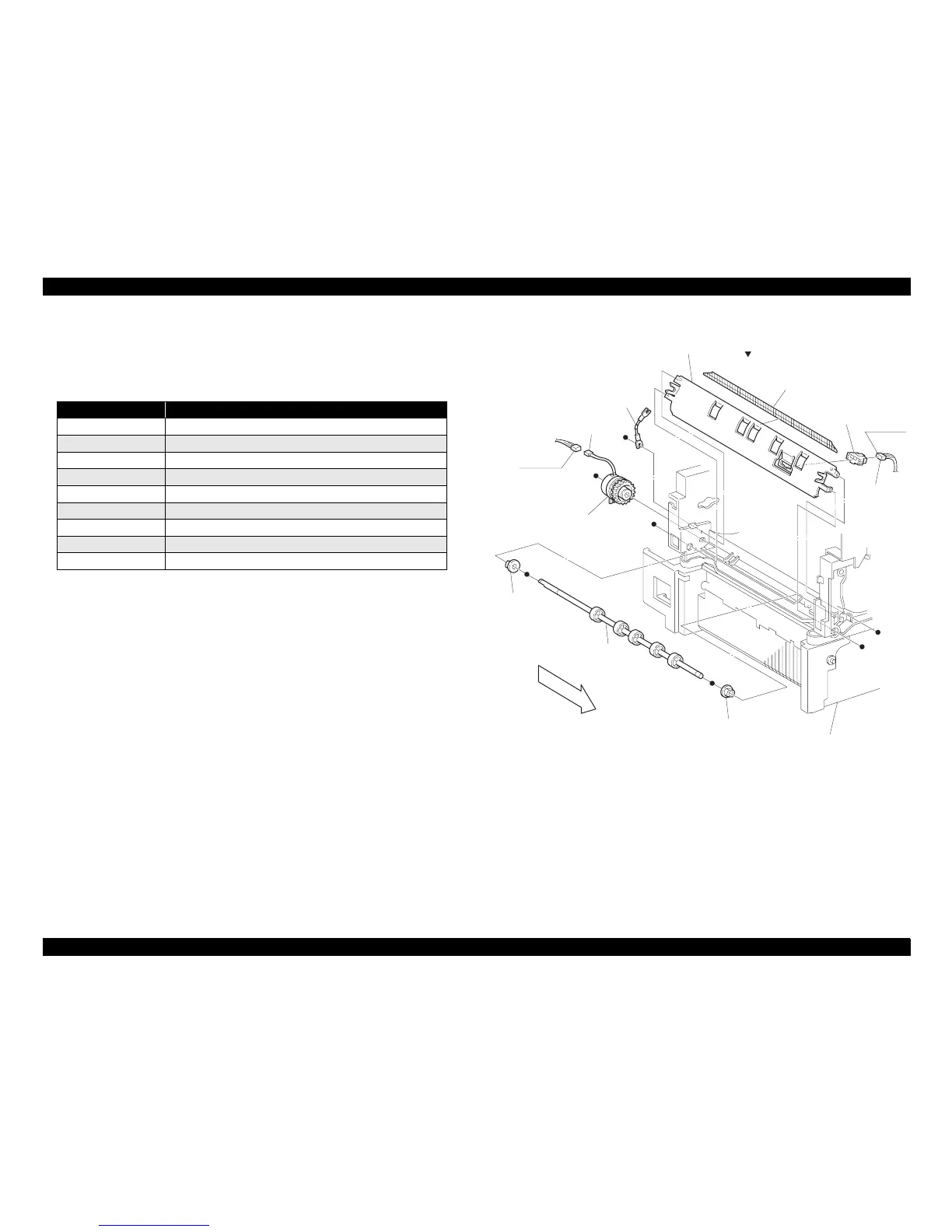

Figure 7-42. Registration
No. in the Figure Unit / Parts Name
1 CLUTCH ASSEMBLY REGISTRATION
2 BEARING
3 ROLLER ASSEMBLY REGISTRATION
4 CHUTE ASSEMBLY REGISTRATION
5 CHUTE REGISTRATION
6 ELIMINATOR
7 SENSOR
8 RESISTOR ASSEMBLY
9 FRAME -L/H
SER519FB
4 (with 5,6)
1
2
2
3
5
6
7
8
9
S
S
S
S
E
E
E
FRONT
(J100)
(J200)
PL11.4.18
PL11.4.21
