4.2.40 Left Chute Assembly
(See “Left Upper Cover Assembly” on pa
g
e -272)
4.2.40.1 Removal
1. Open the Left Upper Cover.
2. Remove the BTR Assembly. (“BTR Assembly (Transfer roller unit)”
on pa
g
e -194)
3. Push down on the rear of the Chute Assembly and use the blade of
a small screwdriver to free the rear latches from the Cover.
4. Push down on the front of the Chute Assembly and use the blade of
a small screwdriver to free the front latches from the Cover.
5. Remove the Left Chute Assembly.
6. Release the two sprin
g
s and remove the Re
g
istration Roll Assembly
from the Chute Assembly.
4.2.40.2 Installation
1. Reinstall the Re
g
istration Roll Assembly onto the Chute Assembly.
Make sure the cutout in the Chute Assembly capture the lips of the
three bearin
g
s on the shaft.
2. Hook the free ends of the two sprin
g
s into the holes in the Chute, so
the sprin
g
s lay on top of the bearin
g
s and secure the shaft to the
Chute.
3. Position the Left Chute Assembly so the cutout for the Re
g
istration
Senor is located opposite the Re
g
istration Sensor.
4. Lift the clear mylar strip out of the way as you lower the Chute onto
the Upper Cover.
5. As you lower the Chute make sure the top of the two Comp Sprin
g
s
fit into the tabs on the underside of the Chute.
6. Press the front of the Chute so the two latches lock the front of the
Chute into place.
7. Press the rear of the Chute so the two latches lock the rear of the
Chute into place. (“BTR Assembly (Transfer roller unit)” on
pa
g
e -194)
8. Reinstall the BTR Assembly.
9. Close the Left Upper Cover.

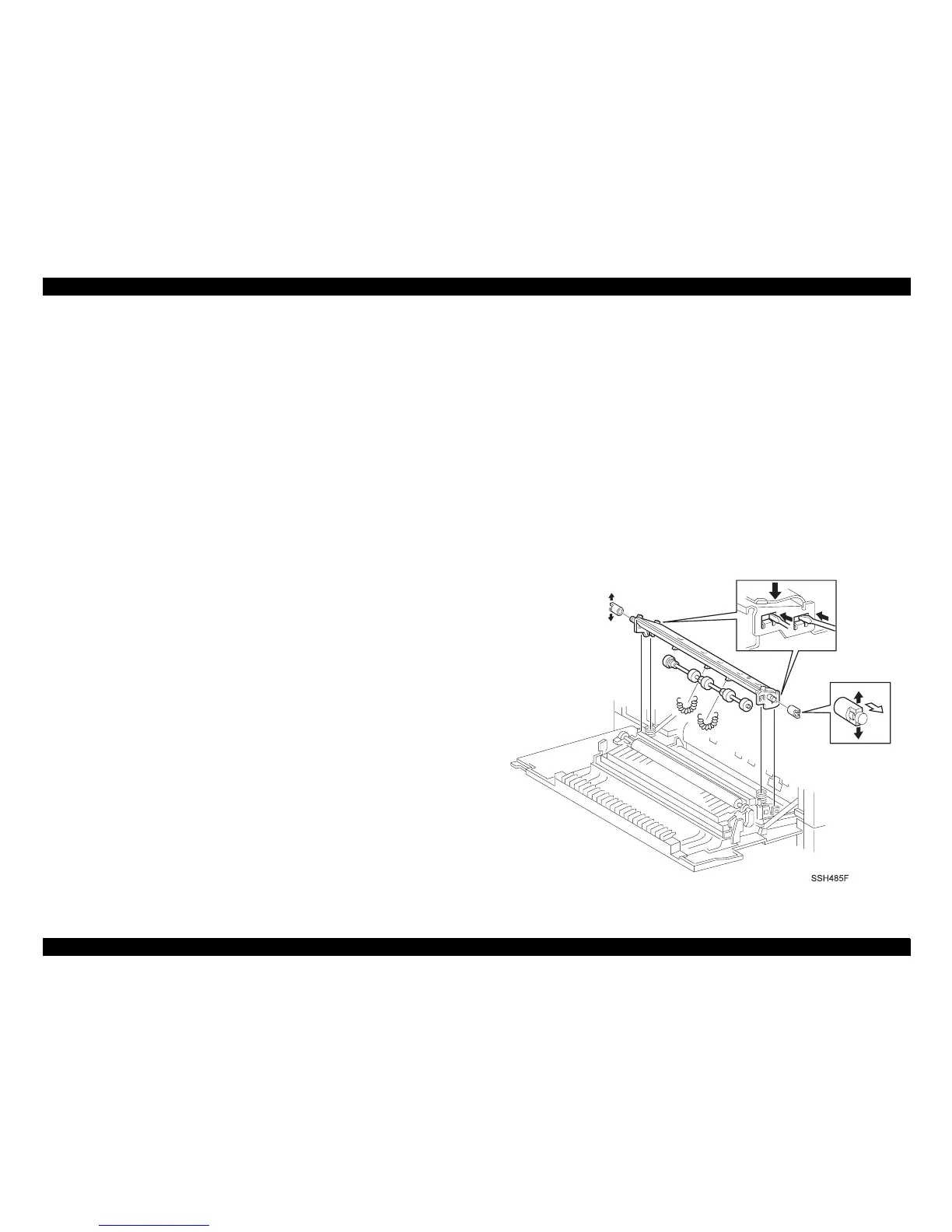

Figure 4-55. Removal of Left Chute Assembly
