EPSON EPL-N4000/EPL-N4000+ CHAPTER 1 Product Description
Rev.B 19
1.3.12 Host Interface Specification
EPL-N4000 has the followin
g
interfaces fitted as standard.

IEEE 1284 parallel interface

Ethernet interface

Option Type B slot

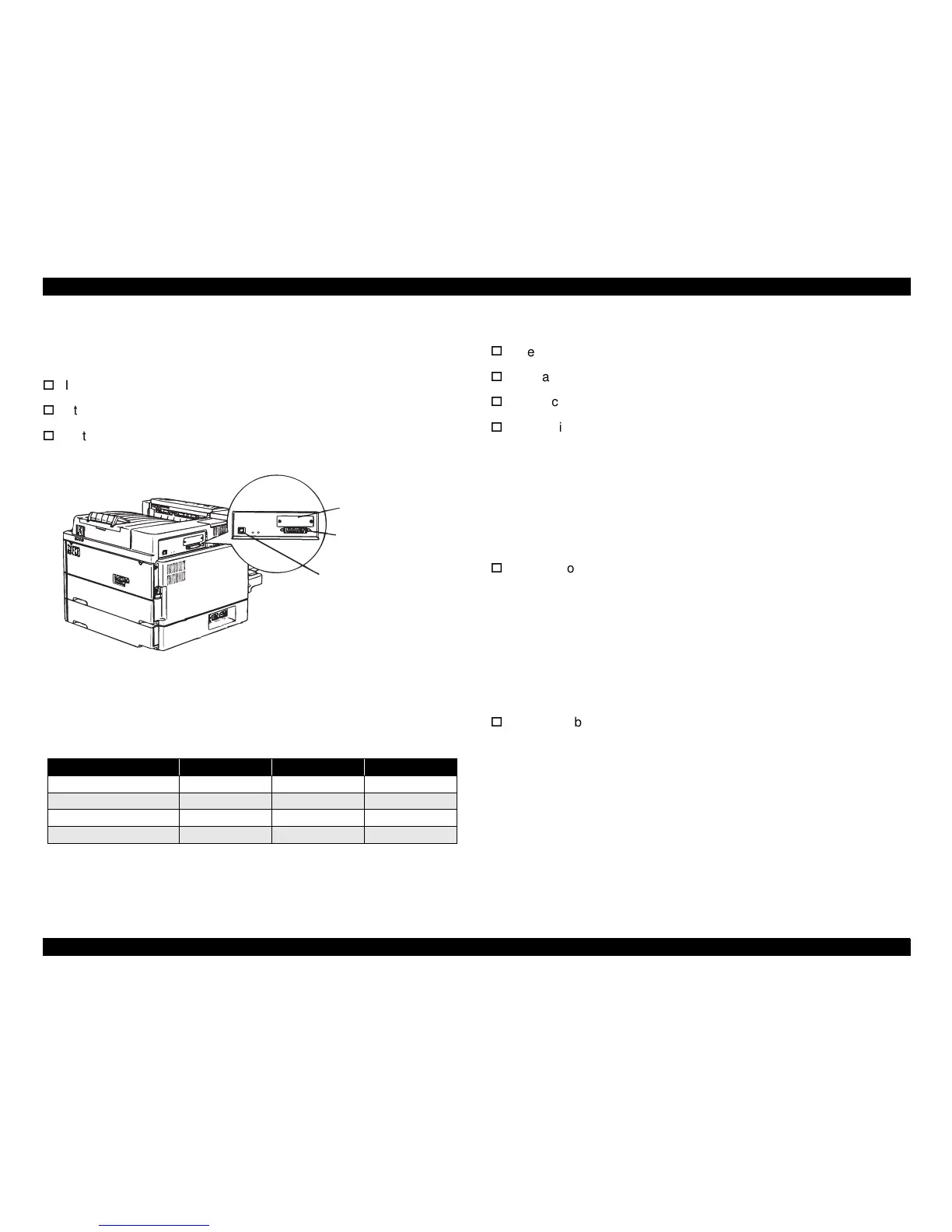

Figure 1-6. Interface Part
The followin
g
table shows which host interface confi
g
urations can be
used.
Table 1-21. Interface
Note)
O: Enable, X: Disable
1.3.12.1 Parallel Interface

Interface type:I IEEE 1284 bi-directional parallel interface

Operatin
g
mode: Compatibility, Nibble, ECP

Connector type: 57RE-40360-830B(D7A)DDK or equivalent

Compatible plu
g
: Amphenole or equivalent
The default device ID settin
g
for this printer is as follows. The
information is shown below includin
g
line breaks, but the actual data is
a continuous character strin
g
, with no line break characters. The CMD
items are not in order. The CID, MODE and STATUS items are not
included. The DES item contents are MFG and MDL connected by a
space. XXXX mentions products name.

When Adobe PS 3 kit is not installed
MFG:EPSON;
CMD:PJL, ESCPL2, ESCP9,PRPXL24-01,PCL, HPGL2-01,
ESCPAGE-04;
MDL:
XXXX;
CLS:RPINTER;
DES: EPSON XXXX;

When Adobe PS 3 kit is installed
MFG:EPSON;
CMD:PJL, ESCPL2, ESCP9,PRPXL24-01,PCL, HPGL2-01,
ESCPAGE-04,POSTSCRIPT;
MDL:
XXXX;
CLS:RPINTER;
DES: EPSON XXXX;
Parallel I/F Ethernet I/F Type-B I/F
I/F automatic selection O O O
I/F fixed(parallel) O X X
I/F fixed(Ethernet) X O X
I/F fixed (AUX) X X O
O ption Type-B Slot
P a r a lle l I/F C o n n e c to
r
Ethernet I/F C onnector
