Epson EPL-N4000 - L;H Low Cover Assembly; Removal

EPSON EPL-N4000/EPL-N4000+ Chapter 4 Disassembly and Assembly
Rev.B 178
4.2.33 L/H Low Cover Assembly
(See “Tray 1 Frame and Left Cover” on pa
g
e -269)
4.2.33.1 Removal
1. Remove the MSI Support Assembly. (“MSI Support Assembly” on
pa
g
e -166)
2. Remove the four screws securin
g
the Left Middle Cover to the
printer frame, and remove the Cover.

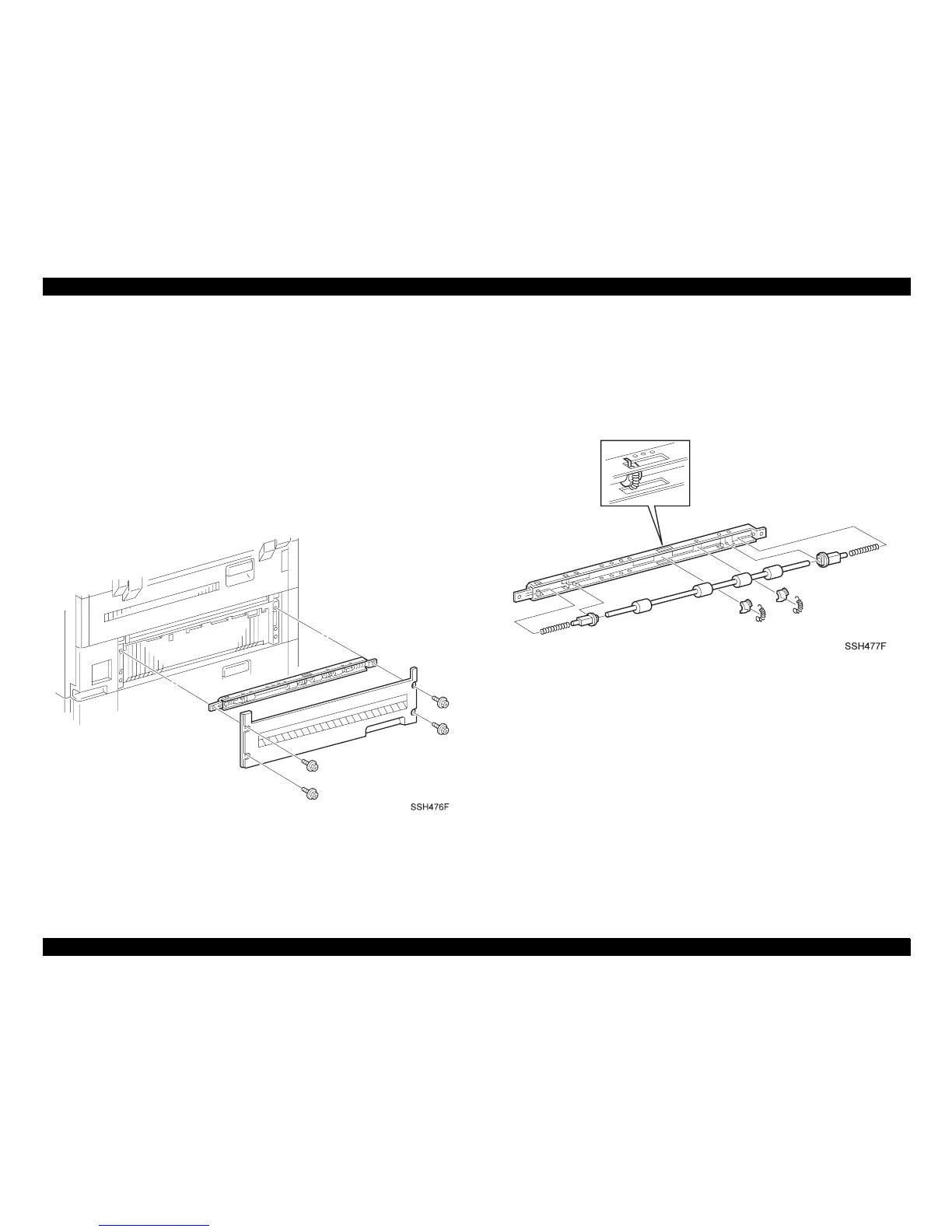

Figure 4-47. Removal of Left Middle Cover
3. LIft the Pinch Roll Bracket off of the Left Middle Cover.
4. Remove the two Holdin
g
Sprin
g
s, and lift the Pinch Roll out of the
Bracket.
5. Remove the two Center Bearin
g
s, the two Shaft Sprin
g
s, and the
two End Brackets from the Shaft.
Figure 4-48. Disassembly of L/H Low Cover Assembly
