Epson EPL-N4000 - Exit Drive Assembly

EPSON EPL-N4000/EPL-N4000+ Chapter 7 Appendix
Rev.B 280
7.3.28 Exit Drive Assembly
Table 7-49. Parts Name for Exit Drive Assembly

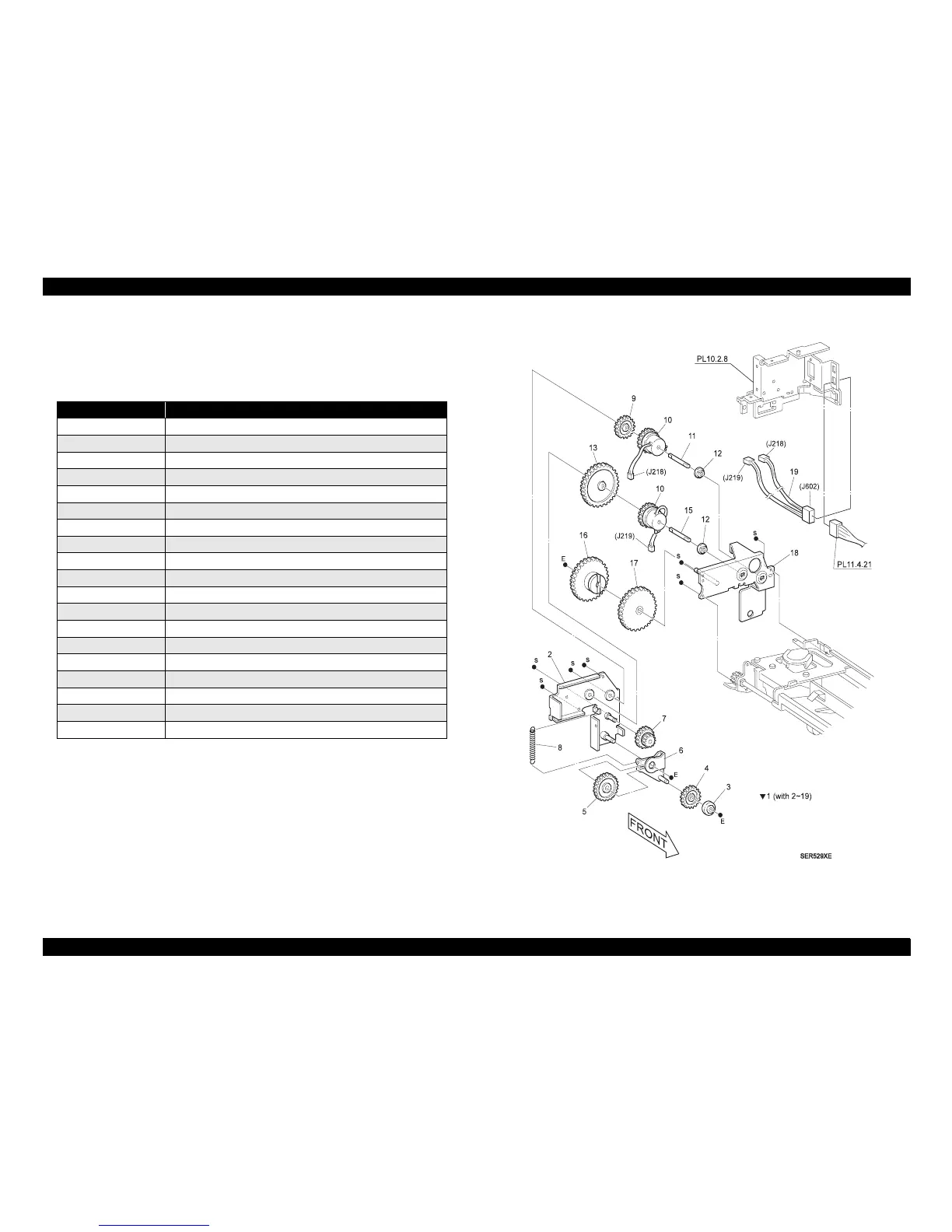

Figure 7-52. Exit Drive Assembly
No. in the Figure Unit / Parts Name
1 EXIT DRIVE ASSEMBLY (with 2-19)
2 EXIT DRIVE SUPPORT
3 EXIT DRIVE IDLER PULLEY
4 EXIT GEAR 1
5 EXIT GEAR 2
6 EXIT GEAR BRACKET
7 EXIT IDLER GEAR
8 EXIT RATCHET SPRING
9 INVERTER COW GEAR
10 INVERTER CLUTCH
11 INVERTER CCW SHAFT
12 BEARING
13 INVERTER CW GEAR
14 ---
15 INVERTER CW SHAFT
16 INVERTER EXIT GEAR REAR
17 INVERTER EXIT GEAR FRONT
18 INVERTER ERACKET
19 EXIT WIRE HARNESS (J602<>J218/J219)
