7.3.16 MSI Tray Assembly
Table 7-37. Parts Name for MSI Tray Assembly

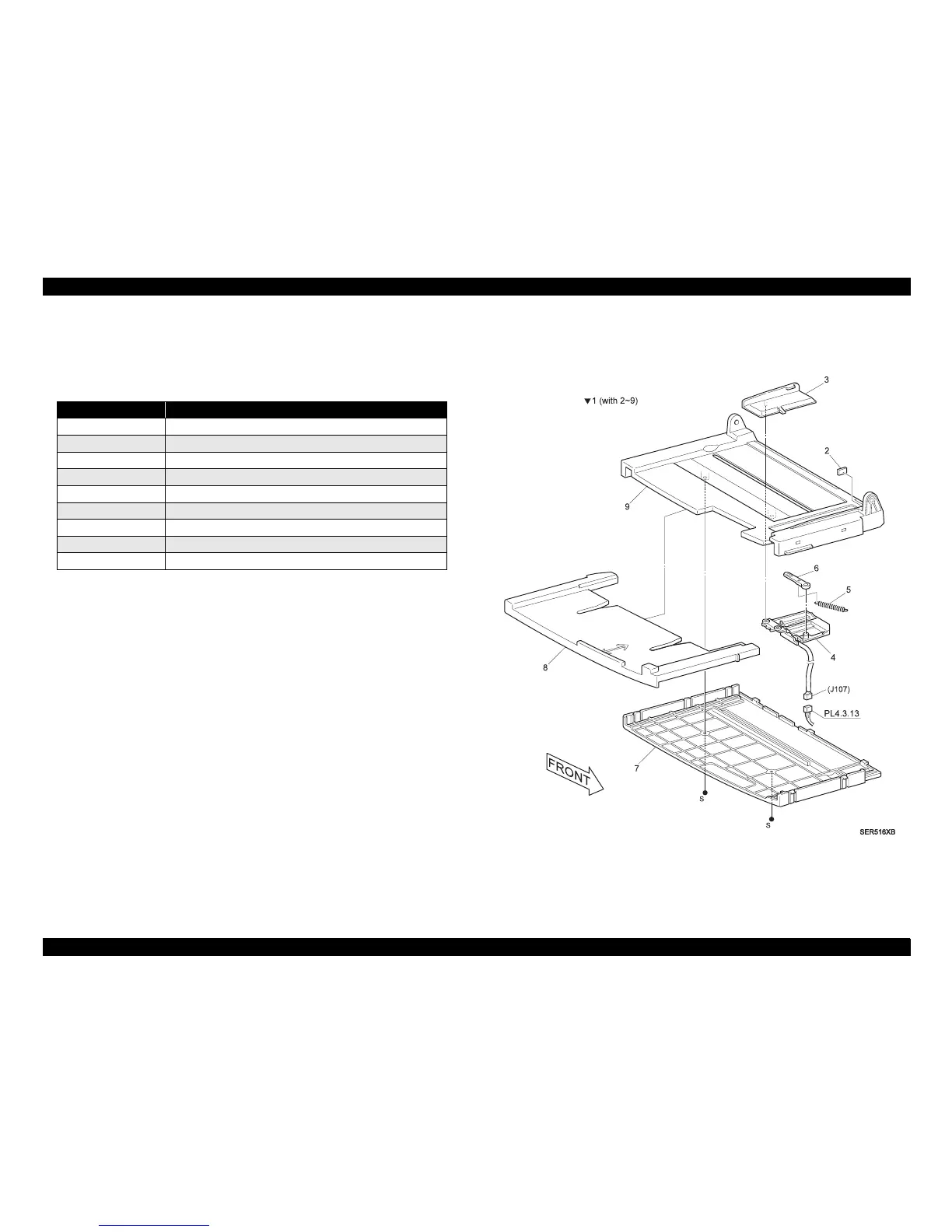

Figure 7-39. MSI Tray Assembly
No. in the Figure Unit / Parts Name
1 MSI TRAY ASSEMBLY(with 2 - 9)
2 MSI PAD
3 MSI SIDE GUIDE
4 MSI SIZE SENSOR ASSEMBLY
5 MSI SIZE GUIDE SPRING
6 MSI SIZE GUIDE LINK
7 MSI TARY LOWER COVER
8 MSI TRAY
9 MSI TRAY UPPER COVER
