EPSON EPL-N4000/EPL-N4000+ Chapter 7 Appendix
Rev.B 273
7.3.21 Transport Chute Assembly
Table 7-42. Parts Name for Transport Chute Assembly

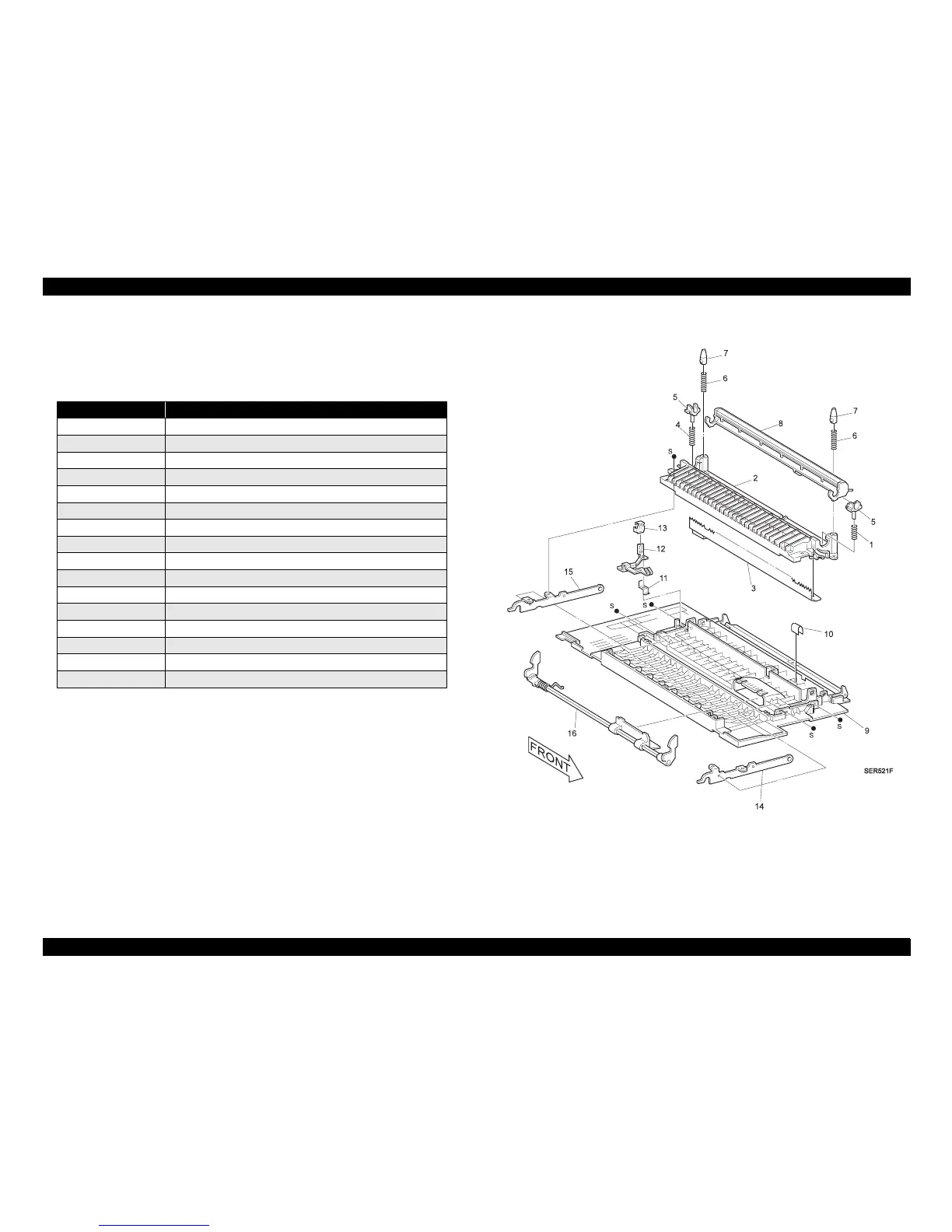

Figure 7-44. Transport Chute Assembly
No. in the Figure Unit / Parts Name
1SHAFT-HINGE
2SHAFT-HINGE GEAR m/n
3 COVER ASSEMBLY L/H, XIP
4 CHUTE LOWER
5 GUIDE PAPER
6 SPRING COMP
7 CHUTE ASSEMBLY L/H
8 SPRING EXTENSION
9 ROLLER ASSEMBLY-REGISTRATION L/H
10 CHUTE ASSEMBLY-REGISTRATION L/H
11 GUIDE PAPER
12 GUIDE PAPER
13 PULLEY
14 FRAME-L/H, F
15 FRAME-L/H, R
16 HANDLE ASSEMBLY-L/H
