7.3.15 Upper Feeder Assembly
Table 7-36. Parts Name for Upper Feeder Assembly

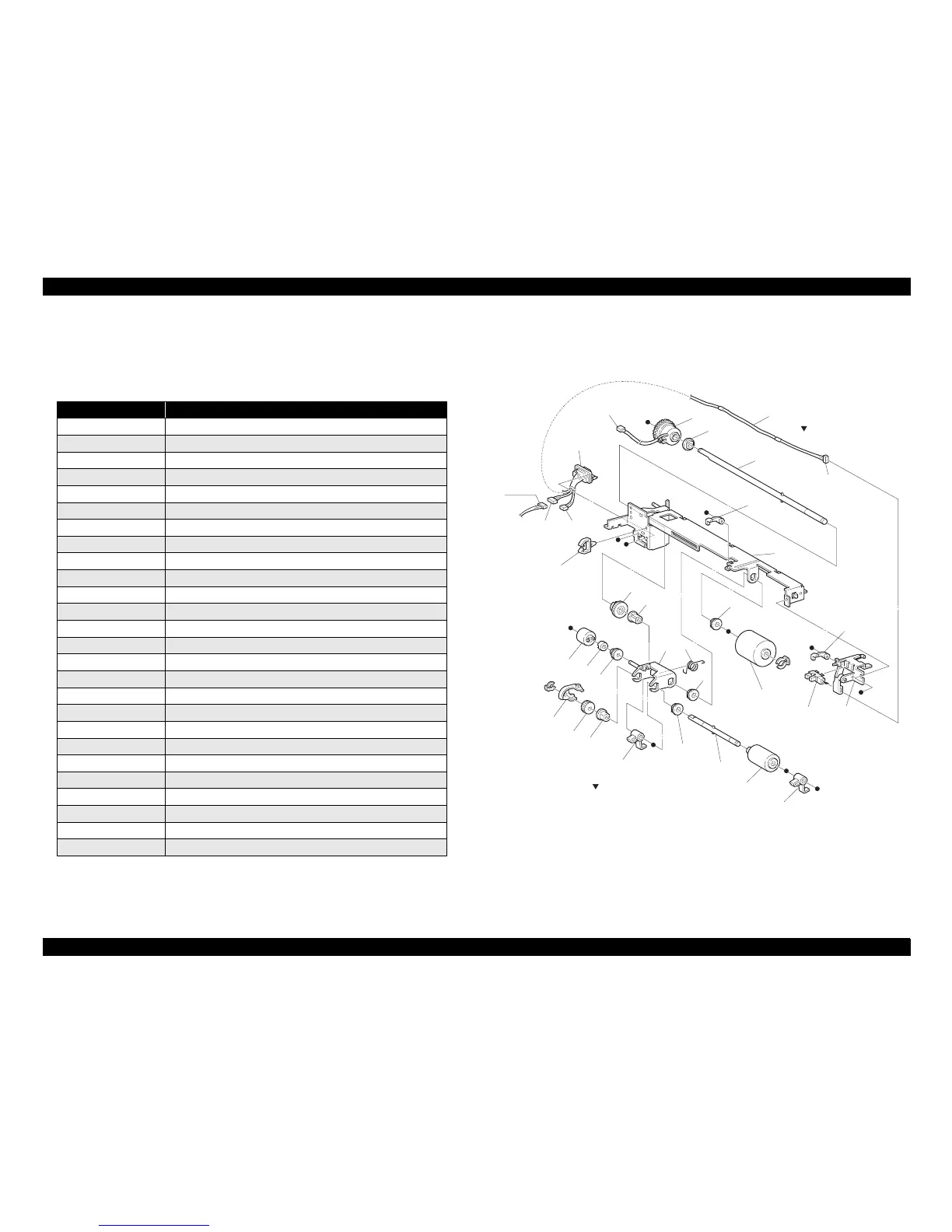

Figure 7-38. Upper Feeder Assembly
No. in the Figure Unit / Parts Name
1 UPPER FEEDER ASSEMBLY(with 2 -26)
2 MSI FEED CLUTCH
3 MSI FEED BEARING REAR 1
4 MSI FEED SHAFT
5 MSI FEED GEAR
6 MSI FEED BEARING REAR 2
7 MSI FEED SPRING
8 MSI FEED BEARING FRONT
9 MSI FEED ROLLER
10 MSI NO PAPER SENSOR
11 MSI NO PAPER SENSOR BRACKET
12 MSI STOPPER
13 MSI WIRE HARNESS (P604 < > J108/P107/P208)
14 MSI NUDGER ROLLER ASSEMBLY(with 15 to 25)
15 MSI NUDGER ROLLER SUPPORT
16 MSI NUDGER GEAR COVER
17 MSI NUDGER GEAR
18 MSI NUDGER BEARING REAR
19 MSI GATE
20 MSI NUDGER ROLLER BEARING FRONT
21 MSI NUDGER ROLLER SHAFT
22 MSI NUDGER ROLLER
23 MSI FRICTION CLUTCH
24 MSI FRICTION CLUTCH SPACER
25 MSI FRICTION CLUTCH GEAR
26 UPPER FEEDER FRAME
SER515FB
2
3
4
5
6
7
8
8
9
10
11
12
12
13
15
16
17
18
19
19
20
21
22
S
S
S
E
E
E
E
E
E
E
E
23
24
25
26
1 (with 2~26)
14 (with 15~25)
(P208)
(P604)
(J208)
(J108)
(P107)
PL4.1.12
PL4.4.4
