Epson EPL-N4000 - MSI Friction Clutch; Removal; Installation

EPSON EPL-N4000/EPL-N4000+ Chapter 4 Disassembly and Assembly
Rev.B 176
4.2.31 MSI Friction Clutch
(See “Upper Feeder Assembly” on pa
g
e -267)
4.2.31.1 Removal
1. Remove the MSI Tray Assembly. (“MSI Tray Assembly” on
pa
g
e -164)
2. Remove the E rin
g
securin
g
the Clutch to the shaft.
3. Rotate the Clutch clockwise as you pull the it off of the shaft.
4.2.31.2 Installation
1. Make sure the Spacer is in place on the Clutch shaft.
2. Rotate the Spacer so the tabs on the Spacer mesh with the notches
on the Clutch Gear.
3. Slide the Friction Clutch onto the shaft, rotatin
g
the Clutch as you
slide it toward the Spacer.
4. Make sure the Clutch and Spacer mesh.
5. Use one E rin
g
to secure the Clutch to the shaft.
6. Reinstall the MSI Tray Assembly. (“MSI Tray Assembly” on
pa
g
e -164)

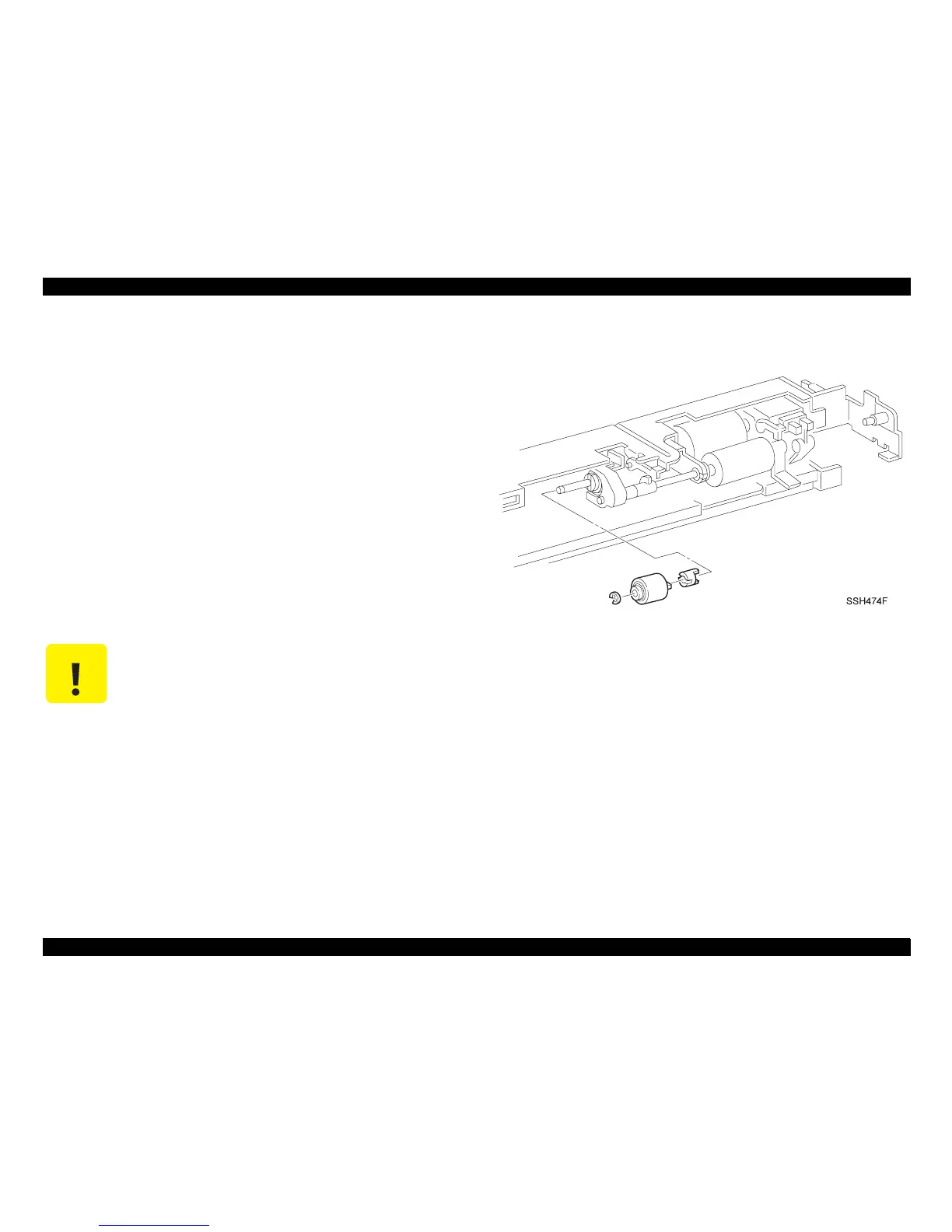

Figure 4-45. Removal of MSI Friction Clutch
CAUTION
When performing step3, push only the rear of the
Clutch. Never press the sides of the Clutch. Pressing
the sides of the Clutch will cause the Clutch break
apart.
