EPSON EPL-N4000/EPL-N4000+ Chapter 2 Operating Principles
Rev.B 58

Inverter CW and CCW Clutches
transmit Main Motor drive,
forward and reverse, to the Offset Rolls.

Offset Roll and Pinch Roll
drive the sheet of paper either
forward into the Output Tray or in reverse to the Exit Roll and on
to the Duplex Module.

Exit Gate Solenoid
controls the Exit Gate to to
gg
le the paper
path between the Output Tray or the Exit Roll and on to the Face
Up Tray or Duplex Module.

Offset Motor and Offset Bracket
moves the Offset Roll back
and forth so paper delivered to the Output Tray will stack offset.

Exit Roll and Pinch Roll
drive the sheet of paper to either the
Face Up Output Tray or to the Duplex Module.

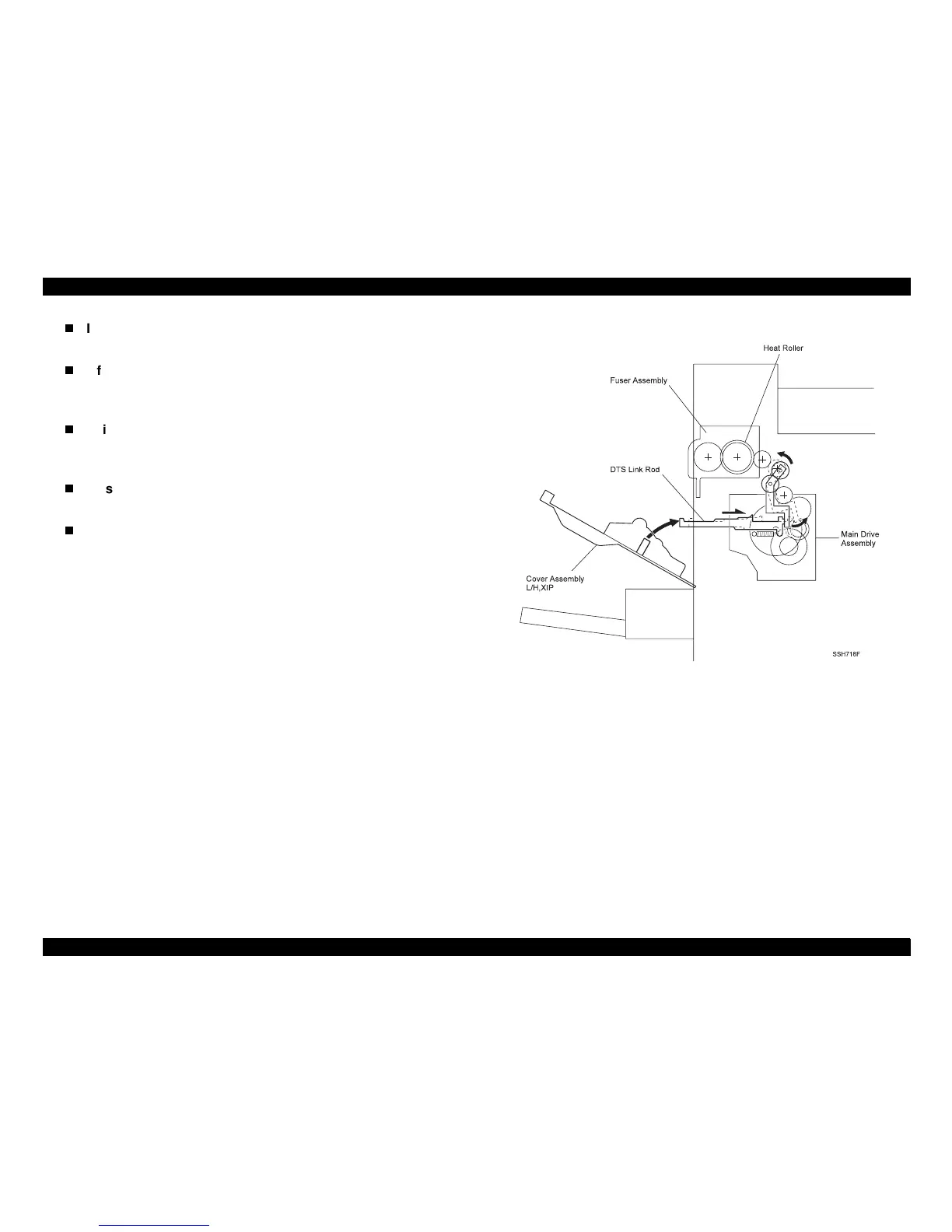

Figure 2-7. Paper Path Component
