Epson N6 Series - Joint #4 Reduction Gear Unit

Maintenance 2. General Maintenance
104 N6 Rev.2
2.3.4 Joint #4 Reduction Gear Unit

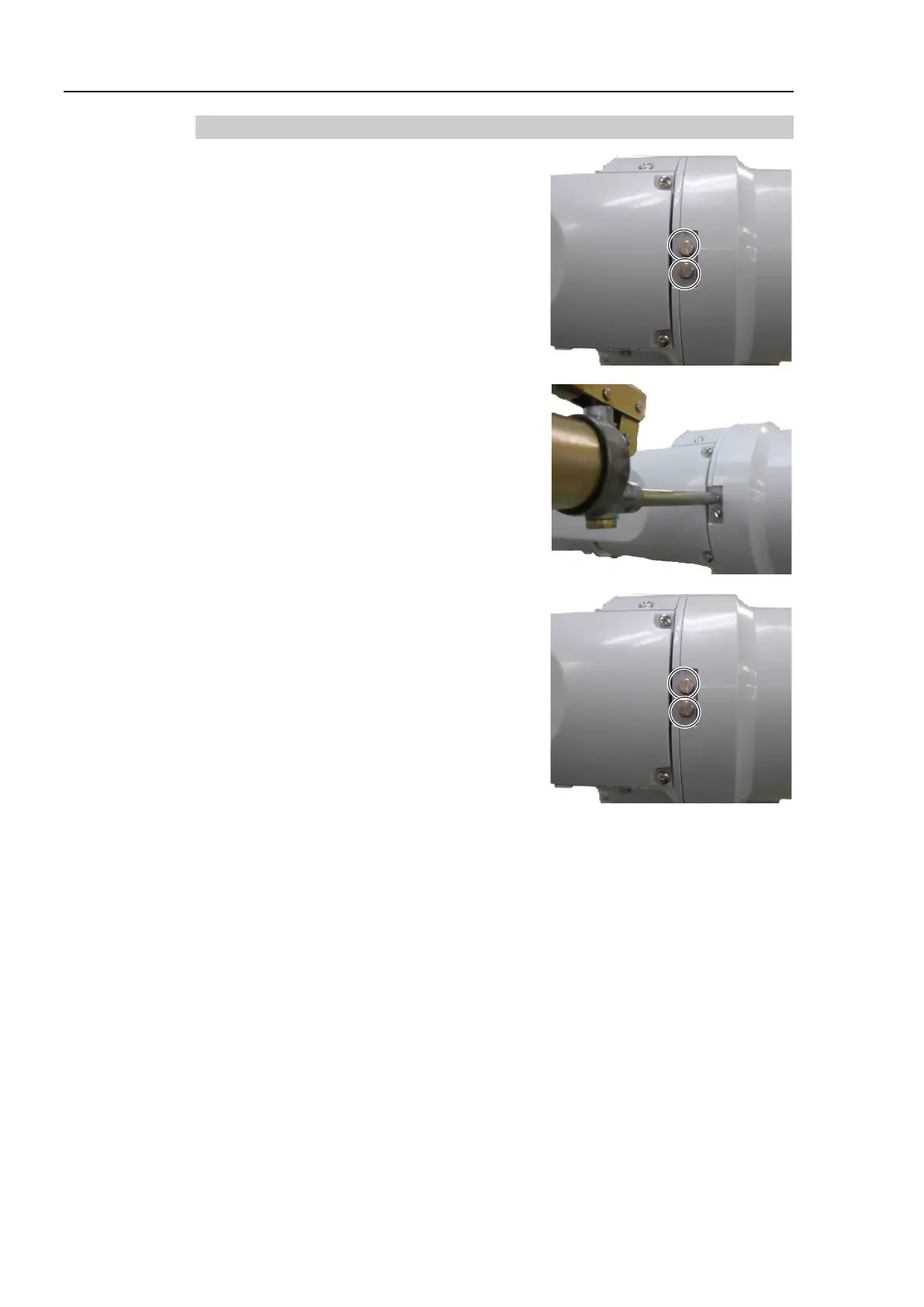

Greasing
(1)
Remove the two grease plug from the Joint #4
grease inlet of the Arm #4.
(2)
Attach the grease nipple to one side of the Joint
#4 grease inlet.
(3)
Inject grease from the grease nipple using
a grease gun
.
Grease: SK-1A
Grease amount: 2g
(4)
Remove the grease nipple from the Joint #4
grease inlet.
(5)
Attach the grease plug to the Joint #4 grease
inlet.
If the grease plug is damaged or deteriorated,
replace it with a new one.
